Запчасти Case IH 915 (15) - PULLEY AND BELT DIAGRAM, LEFT SIDE (00) - GENERAL

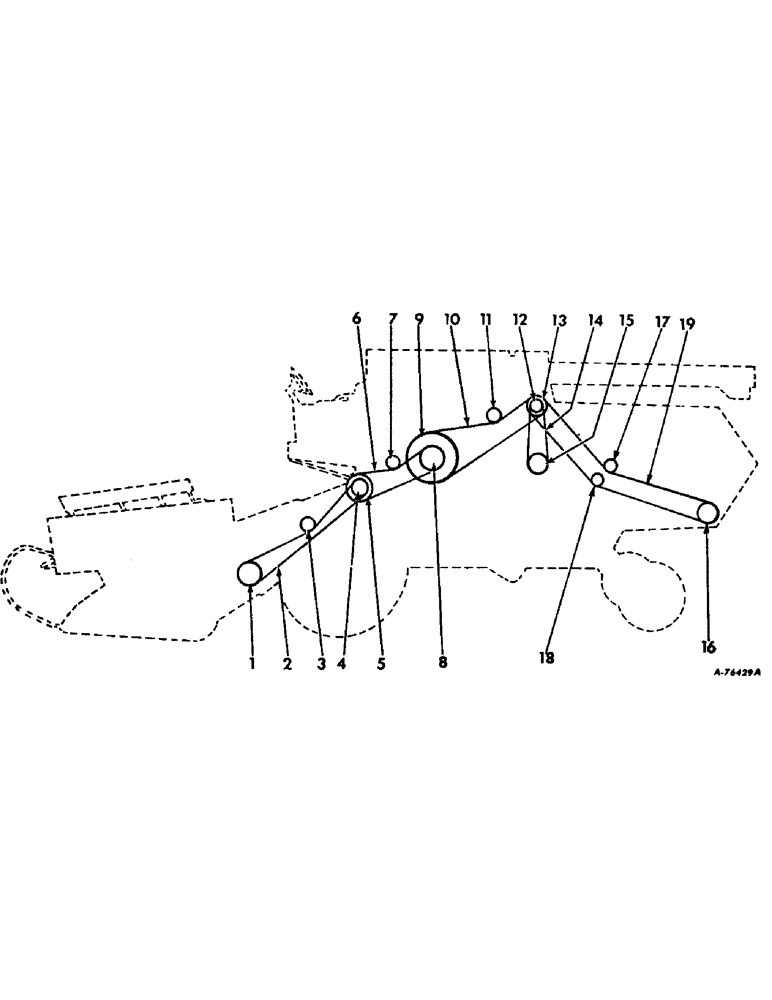

Схема запчастей Case IH 915 - (15) - PULLEY AND BELT DIAGRAM, LEFT SIDE (00) - GENERAL
6
10
12
14
18
16
9
1
15
5
17
3
13
2
7
4
11
19
8

Артикул

Название

Примечание

Количество

1

PULLEY, platform jackshaft driven, bolt attach feeder, see PFM-1 parts catalog, section B

1шт.

2

BELT, platform jackshaft drive, bolt attach feeder, see PFM-1 parts catalog, section B

1шт.

3

PULLEY, jackshaft drive belt tightener, bolt attach feeder, see PFM-1 parts catalog, section B

1шт.

4

PULLEY, platform jackshaft drive, bolt attach feeder, see PFM-1 parts catalog, section B

1шт.

5

PULLEY, feeder driven, bolt attach feeder, see PFM-1 parts catalog, section B

1шт.

6

BELT, feeder drive, bolt attach feeder, see PFM-1 parts catalog section B

1шт.

7

PULLEY, feeder drive idler, bolt attach feeder, see PFM-1 parts catalog, section B

1шт.

8

PULLEY, feeder drive, bolt attach feeder, see PFM-1 parts catalog section B

1шт.

9

PULLEY, separator driven, see section B under separator drive

1шт.

10

BELT, separator drive, see section B under separator drive

1шт.

11

PULLEY, separator drive belt tightener, see section B under separator drive

1шт.

12

PULLEY, unloader jackshaft drive, see section T under grain tank unloader main drive and controls

1шт.

13

PULLEY, separator drive, see section B under separator drive

1шт.

14

BELT, unloader jackshaft drive, see section T under grain tank under unloader main drive and controls

1шт.

15

PULLEY, unloader jackshaft driven, see section T under grain tank unloader main drive and controls

1шт.

16

PULLEY ASSY, straw chopper driven, refer to section R under straw chopper drive

1шт.

17

PULLEY ASSY, straw chopper idler, refer to section R under straw chopper drive

1шт.

18

PULLEY ASSY, straw chopper tightener, refer to section R under straw chopper drive

1шт.

19

BELT, straw chopper drive, refer to section R under straw chopper drive

1шт.

Выбрано товаров: 19
