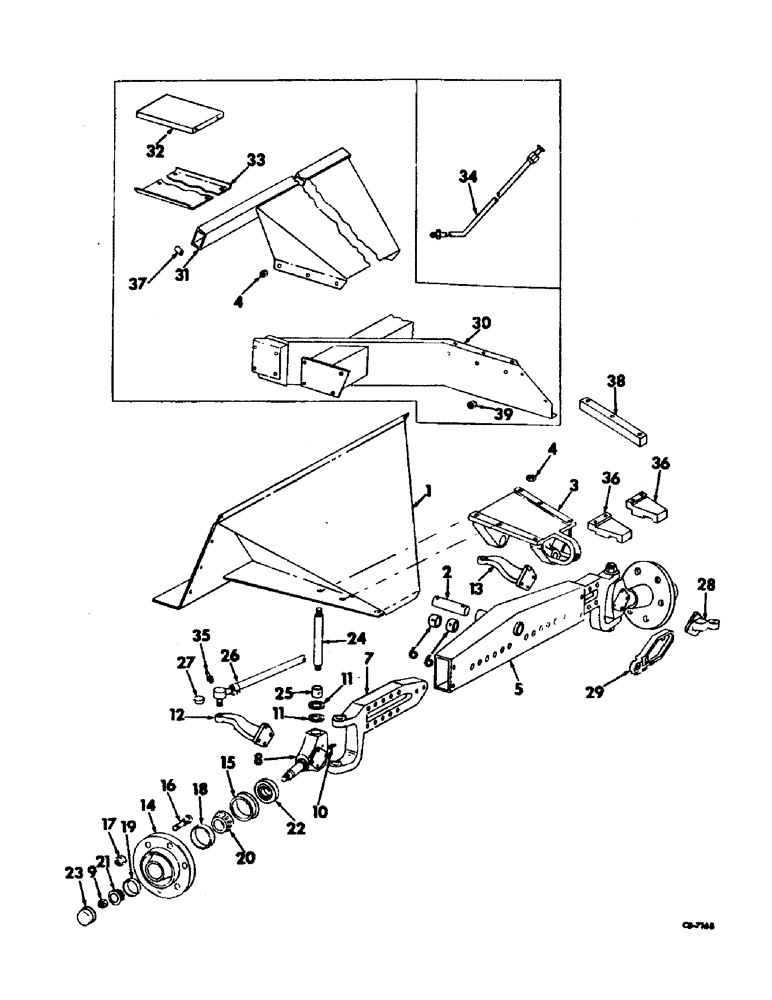

Запчасти Case IH 915 (J-2) - STEERING MECHANISM, GUIDE WHEEL AXLE, HUB AND KNUCKLE Steering Mechanism

1

160490C91

SUPPORT ASSY, guide wheel axle, not rice special

1шт.

629300R1

NUT, 1/2 hex. type 8

6шт.

21330R1

NUT,1/2"-13, G8

1/2 hex.

1шт.

629358R1

NUT

5/8 heavy

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

SCREW, 1/2 x 1-1/4 hex-hd cap

8шт.

161068R1

BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"

4шт.

366864C1

LOCK WASHER,1/2"

1/2"

8шт.

366866C1

LOCK WASHER,5/8"

5/8"

4шт.

138553

WASHER

5/8 C-Z int-tooth lock

4шт.

2

158273C1

BAR, guide wheel axle pivot

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2 x 3 znp hex-hd cap

2шт.

366864C1

LOCK WASHER,1/2"

1/2"

2шт.

22051R1

WASHER

1-17/32 x 2-1/4 x 16 ga

4шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

2шт.

3

160245C3

SUPPORT, guide wheel axle lower, not rice special

1шт.

161068R1

BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"

6шт.

3

161941C2

SUPPORT, guide wheel axle lower, rice special not equipped w/track or 23.1-34 main wheel tires

1шт.

469805R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

SCREW, 5/8 x 2 C-Z hex-hd cap

6шт.

3

168670C2

SUPPORT, guide wheel axle lower, rice special equipped w/track or 23.1-34 main wheel tires

1шт.

469805R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

SCREW, 5/8 x 2 C-Z hex-hd cap

8шт.

4

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 znd flange lock, not rice special

6шт.

4

629358R1

NUT

5/8 C-Z hex. type 8, for rice special

1шт.

366866C1

LOCK WASHER,5/8"

5/8"

1шт.

5

158275C92

AXLE ASSY, guide wheel, includes ref. no. 6, standard for rice, special for grain 52 in. to 68 in.

1шт.

5

160482C92

AXLE ASSY, guide wheel, includes ref. no. 6, standard for corn special, special for grain, bean and windrow special, 60 in. to 84 in. adjustable

1шт.

5

162493C92

AXLE ASSY, guide wheel, includes ref. no. 6, standard for grain, bean and windrow special, 64 in. tread non-adjustable

1шт.

6

158282C1

BUSHING

guide wheel axle pivot tube

2шт.

7

158284C2

MEMBER, guide wheel axle, standard for corn special, special for grain, bean and windrow special, 60 in. to 84 in. adjustable

2шт.

7

160508C3

MEMBER, guide wheel axle, standard for rice, special for grain, bean and windrow special, 52 in. to 68 in. adjustable

2шт.

7

162494C1

MEMBER, guide wheel axle, standard for grain, bean and windrow special 64 in. tread non-adjustable

2шт.

629358R1

NUT

5/8 heavy

1шт.

22228R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

SCREW, 5/8 x 3-1/2 znp hex-hd cap type 8

6шт.

23061R1

BOLT,Hex, 5/8" - 11 x 4", Gr 8

SCREW, 5/8 x 4 znp hex-hd cap

2шт.

169210C1

SCREW, 5/8 x 4-1/4 hex-hd cap

4шт.

366866C1

LOCK WASHER,5/8"

5/8"

8шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

16шт.

8

158285C21

KNUCKLE ASSY, guide wheel axle, includes ref. no. 11, for grain, bean, corn and windrow special

1шт.

137214

COTTER PIN

1/8" x 1-3/4"

2шт.

8

169260C11

KNUCKLE ASSY, guide wheel axle, includes ref. no. 11, for rice special

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

2шт.

9

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 NF SLTD hex. jam, for grain, bean, corn and windrow special

2шт.

612889R1

WASHER

29/32 x 1-3/4 x 9 ga

2шт.

9

427652

SLOTTED NUT,1"-14, G5

NUT, 1-14 NF C-Z slt-hex., for rice special

2шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-1/32 x 2-1/4 x 1/4

1шт.

10

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF, 45 deg lub

2шт.

11

571191R1

BUSHING

guide wheel axle knuckle

4шт.

12

158286C2

ARM, guide wheel axle knuckle LH

1шт.

629300R1

NUT, 1/2 hex. heavy

1шт.

186659

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 8

SCREW, 1/2 x 3-3/4 znp hex-hd cap type 8, not rice

4шт.

20127R1

SCREW

1/2 x 4-1/4 znp hex-hd cap type 8, rice

4шт.

366864C1

LOCK WASHER,1/2"

1/2"

4шт.

13

158287C1

ARM, guide wheel axle knuckle RH

1шт.

629300R1

NUT, 1/2 hex. heavy

1шт.

20127R1

SCREW

1/2 x 4-1/4 znp hex-hd cap type 8, not rice

4шт.

211217R1

BOLT,Hex, 1/2" - 13 x 4 3/4", Gr 8

SCREW, 1/2 x 4-3/4 znp hex-hd cap type 8, rice

4шт.

366864C1

LOCK WASHER,1/2"

1/2"

4шт.

14

654661R92

HUB

ASSY, guide wheel, includes ref. nos. 15 thru 19, for grain, bean, corn and windrow special

2шт.

14

169293C11

HUB

ASSY, guide wheel, includes ref. nos. 15 thru 19, for rice special

2шт.

15

654675R1

RING

guide wheel hub oil seal wear, for grain, bean, corn and windrow special

2шт.

15

169328C1

SLEEVE

RING, guide wheel hub oil seal wear, for rice special

2шт.

16

456267R1

BOLT,1/2" - 20 x 1 7/8"

wheel hub, for grain, bean, corn and windrow special

12шт.

16

366021R2

BOLT,Round, 5/8" - 18 x 2 1/4"

wheel hub, for rice special

16шт.

17

169228C1

NUT

wheel hub bolt, for grain, bean, corn and windrow special

12шт.

17

554480R1

WHEEL NUT

wheel hub bolt, rice special

16шт.

18

663558R1

BEARING CUP

BEARING, guide wheel hub inner cup, for grain, bean, corn and windrow special

2шт.

18

625743C1

BEARING CUP,90mm OD x 18.5mm W

BEARING, guide wheel hub inner cup, for rice special

2шт.

19

651817R1

BEARING CUP

BEARING, guide wheel hub outer cup, for grain, bean, corn and windrow special

2шт.

19

663558R1

BEARING CUP

BEARING, guide wheel hub outer cup, for rice special

2шт.

20

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING ASSY, guide wheel hub inner cone, for grain, bean, corn and windrow special

2шт.

20

625742C91

BEARING

ASSY, guide wheel hub inner cone, for rice special

2шт.

21

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, guide wheel hub outer cone, for grain, bean, corn and windrow special

2шт.

21

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING ASSY, guide wheel hub outer cone, for rice special

2шт.

22

654674R91

OIL SEAL

ASSY, guide wheel hub oil, for grain, bean corn and windrow special

2шт.

22

169329C91

OIL SEAL,63.3mm ID x 95.81mm OD x 8mm Thk

ASSY, guide wheel hub oil, for rice special

2шт.

23

663906R1

CAP

guide wheel hub, for grain, bean, corn and windrow special

2шт.

23

560950R1

HUB CAP

CAP, guide wheel hub, for rice special

2шт.

24

158290C1

STUD, guide wheel knuckle king

2шт.

427643

SLOTTED NUT,7/8"-9, G5

NUT, 7/8 C-Z SLTD hex.

4шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

4шт.

21715R1

WASHER

29/32 x 1-3/4 x 11 ga C-Z

4шт.

25

21076D

BEARING ASSY,31.9mm ID x 55.56mm OD x 16.13mm W

BEARING, guide wheel hub king pin thrust

2шт.

26

158291C92

ROD ASSY, guide wheel tie, standard for rice, special for grain, bean and windrow special 52 in. to 68 in. adjustable

1шт.

26

162496C91

ROD ASSY, guide wheel tie, standard for grain, bean and windrow special, 64 in. tread non-adjustable

1шт.

26

158292C91

ROD ASSY, guide wheel tie, standard for corn special, special for grain, bean and windrow special, 60 in. to 84 in. adjustable

1шт.

425-1310

SLOTTED NUT,5/8"-18, G5

NUT, 5/8-18 NF C-Z hex SLTD

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

21796R1

WASHER

21/32 x 1 x 16 ga

1шт.

27

382562R1

SEAL

guide wheel tie rod stud

2шт.

28

158293C1

ARM, steering cylinder

1шт.

29

154715C2

ANCHOR, steering cylinder, standard for rice, special for grain, bean and windrow special, 52 in. to 68 in. adjustable

1шт.

29

160244C1

ANCHOR, steering cylinder, standard for corn special, special for grain, bean and windrow special, 60 in. to 84 in. adjustable

1шт.

30

162050C94

SUPPORT ASSY, guide wheel axle, standard for rice 52 in. to 68 in. adjustable

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

SCREW, 1/2 x 1-1/4 znp hex-hd cap type 8

12шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

SCREW, 1/2 x 1-1/2 znp hex-hd cap

4шт.

31

162054C92

SUPPORT ASSY, guide wheel axle upper, standard for rice 52 in. to 68 in. adjustable

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

629300R1

NUT, 1/2 hex. heavy

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.

186635

SCREW

1/2 x 3 znp hex-hd cap type 8

4шт.

366864C1

LOCK WASHER,1/2"

1/2"

6шт.

32

162057C2

CHANNEL, guide wheel axle support shield, standard for rice 52 in. to 68 in. adjustable

1шт.

167842C1

BOLT, 5/8 x 13 znd hex-hd mach

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 znd hex.

2шт.

366866C1

LOCK WASHER,5/8"

5/8"

2шт.

33

162058C1

CHANNEL, guide wheel axle support, standard for rice 52 in. to 68 in. adjustable

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 znp hex-hd-cap

6шт.

366864C1

LOCK WASHER,1/2"

1/2"

6шт.

34

166841C92

TUBE ASSY, steering rear lower

1шт.

35

16964R91

FITTING

1/4-28 x 90 deg lub

2шт.

36

168073C2

STOP, guide wheel axle pivot, for combines w/LP gas engine or w/9.50-20 code F2 or 11.00-16 code F1 guide wheel tires

2шт.

20105R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 8

5/8 x 2-3/4 C-Z hex-hd type 8

2шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 C-Z whiz lock

2шт.

37

552920R2

SPACER,3/4" Tube x 1 1/2"

guide wheel axle upper support, for rice special combines

4шт.

38

172940C1

SPACER, guide wheel support, for use w/11L-16 guide wheel tires

2шт.

20906R1

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8

5/8 x 3-1/4 znd hex-hd type 8

6шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 C-Z flange lock

6шт.

39

629300R1

NUT, 1/2 hex. type 8, for rice special

20шт.

366864C1

LOCK WASHER,1/2"

1/2"

20шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

8шт.
