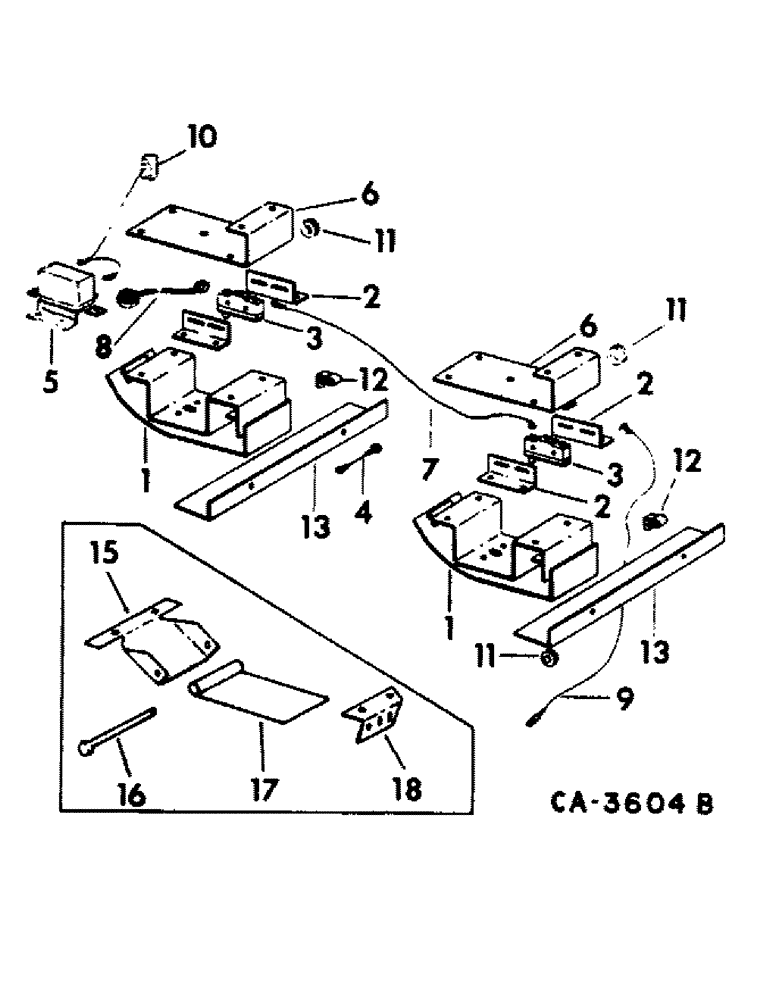

Запчасти Case IH 815 (22-07) - STRAW WALKER, STRAW WALKER WARNING SYSTEM Straw Walkers

174954C91

PARTS ACCESSORY, straw walker warning system, for combines not equipped w/straw chopper

1шт.

1

BRACKET ASSY, warning switch, order service package 180781C91

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 whiz lock

8шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

8шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

4шт.

2

166225C2

SUPPORT

warning horn switch, S/N 26000 and below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

1/4 whiz lock

8шт.

938075R1

SCREW, 1/4 x 3/4 slt-truss-hd

8шт.

3

574649R91

SWITCH

micro

2шт.

134530

NUT,Hex, #6 - 32

4шт.

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

no. 6 x 1-1/4 slt-pan-hd

4шт.

492-11006

LOCK WASHER,#6

Lock, #6

4шт.

131014

WASHER

.156 x .375 x .036

1шт.

4

167580C91

WIRE, micro switch ground, S/N 26000 and below

1шт.

4

175008C1

CABLE ASSY.

CABLE, micro switch to ground, S/N 26001 and above

1шт.

5

921926C1

SWITCH

RELAY, straw walker warning horn

1шт.

19302R1

NUT

no. 10 hex.

3шт.

43632

SCREW, no. 10 x 1/2 pan-hd SLT

1шт.

436734

SCREW,Slotted Pan Hd, #10-24 x 3/4"

no. 10 x 3/4 pan-hd SLT

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

6

161704C1

SUPPORT, straw walker switch

2шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

8шт.

7

174494C1

CABLE, front to rear micro switch, 60 in.

1шт.

8

174092C1

WIRE ASSY, relay to micro switch

1шт.

9

174497C1

CABLE

engine to micro switch, 192 in.

1шт.

10

174498C1

CABLE, relay to fuse block

1шт.

11

117959

GROMMET,5/16" ID x .719" x .062"

no. 3 rubber diagonal cut

1шт.

12

365584R1

CLIP

front to rear micro switch cable

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

63227R1

SCREW

5/16 x 3/4 slt-truss-hd

4шт.

12

366460R1

CABLE CLIP

CLIP, engine to micro switch cable

1шт.

13

173860C2

RETAINER, straw walker wire

2шт.

564791R1

SPRING NUT

1/4 speed

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

4шт.

14

174092C1

WIRE ASSY, relay to micro switch, 20 in.

1шт.

15

188742C1

SUPPORT, warning horn switch, S/N 26001 and above

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

16

28051R1

HEADED PIN,3/8" x 3 3/4"

PIN, warning horn switch support, S/N 26001 and above

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

17

188743C1

HINGE, warning horn switch, S/N 26001 and above

1шт.

18

188744C1

SUPPORT, warning horn switch, S/N 26001 and above

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

180781C91

PACKAGE

straw chopper warning horn switch mounting, replacement for 171173C1, consists of

1шт.

188742C1

SUPPORT

1шт.

188743C1

HINGE

1шт.

188744C1

SUPPORT

1шт.

28051R1

HEADED PIN,3/8" x 3 3/4"

PIN

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

NLS

NO LONGER SERVICED

.156 x .375 x .036

1шт.

175008C1

CABLE ASSY.

WIRE

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

1шт.

109390

GROMMET,5/16" ID x 23/32" x .062", Diag Cut

instruction manual

1шт.
