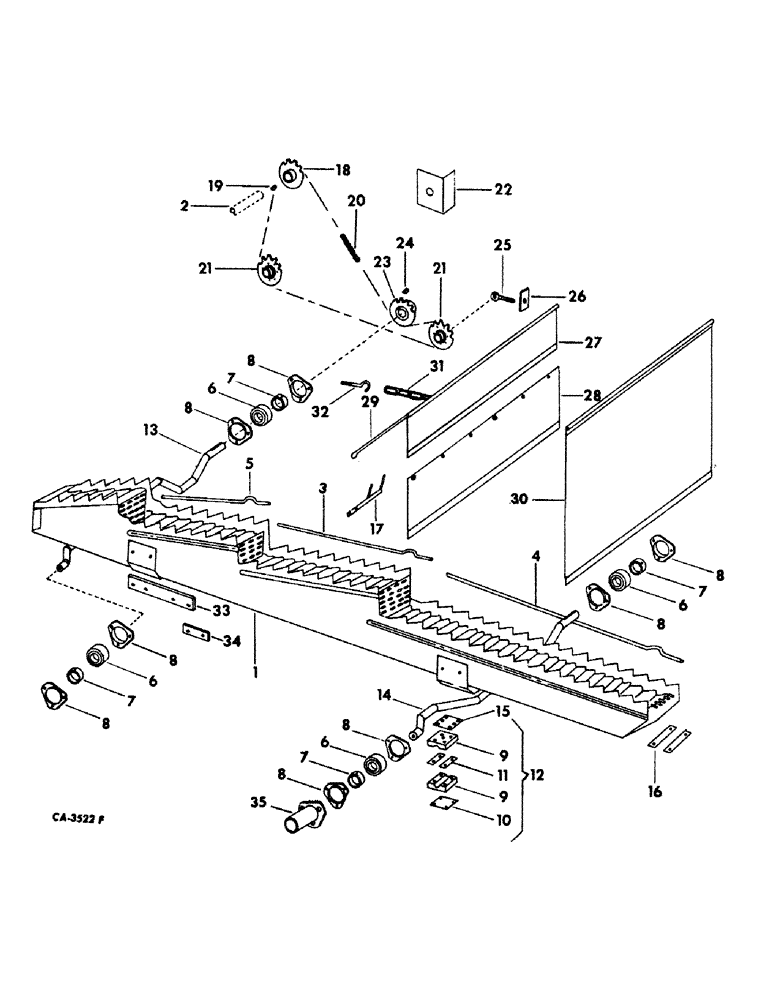

Запчасти Case IH 815 (22-01) - STRAW WALKER, STRAW WALKER AND DRIVE Straw Walkers

180419C1

PARTS ACCESSORY, straw walker fast speed 160 RPM drive sprocket, consists of ref. no. 23 of this unit and ref. nos. 33 and 34 of straw walker return pan and drive unit and 1095242R1 instruction manual, serial no., Serial Range: 8000-19000

1шт.

1

177204C91

STRAW WALKER

RACK ASSY, walker, includes ref. nos. 3, 4 and 5

4шт.

2

JACKSHAFT, elevator drive, refer to group 25 under grain elevator drive for unit listing

1шт.

3

937301R1

ELECTRICAL WIRE

WIRE, straw walker riser center

20шт.

4

157976C1

ELECTRICAL WIRE

WIRE, straw walker riser rear

20шт.

5

937300R1

ELECTRICAL WIRE

WIRE, straw walker riser front center

20шт.

6

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

straw walker crankshaft

4шт.

7

455104R11

COLLAR

w/SET SCREW, straw walker crankshaft lkg

4шт.

8

180955C1

FLANGED BEARING,0.375"

FLANGE, straw walker crankshaft brg

8шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

9

BLOCK, straw walker crankshaft brg, (not serviced separately) order package 166064C91

1шт.

10

189735C1

BAR

PLATE, bearing block

1шт.

11

607065R1

GASKET

SHIM, straw walker crankshaft brg block .052 thick

32шт.

12

166064C91

KIT

PACKAGE, straw walker crankshaft brg, includes ref. nos. 9, 10 and 11

1шт.

126667R1

BOLT, 5/16 x 3-1/4 sq-nk crg

32шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD p/t lock type 5

32шт.

13

177200C1

CRANKSHAFT

straw walker front

1шт.

14

177201C1

CRANKSHAFT

straw walker rear serial no. 19000 and below

1шт.

14

197853C1

CRANKSHAFT

CRANKSAHFT, straw walker rear serial no. 19001 and above

1шт.

15

160004C1

BAR

PLATE, straw walker rear saddle

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

8шт.

16

168494C1

SHIM

straw walker .020 thick

16шт.

17

178476C1

RISER

ASSY, straw walker

8шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

16шт.

120376

NUT,5/16"-18, G5

16шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

18

170426C2

SPROCKET ASSY.

SPROCKET ASSY, straw walker drive 23T

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

22752R1

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 2-1/4 C-Z std-hd

1шт.

19

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff, hard

1шт.

20

CHAIN ASSY, straw walker drive use 227 link from a 10 ft roll marked 1791D & 1 connecting link 1310D

1шт.

21

631905R91

SPROCKET

ASSY, straw walker drive idler and tightener 17T

2шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

5/8 x 2-1/4 C-Z hex-hd mach

1шт.

18449R1

BOLT,Short NK, 5/8"-11 x 3", G2

5/8 x 3 crg type 1

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

7шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

1шт.

22

179283C1

ANGLE, chain shield

1шт.

23

177860C1

SPROCKET ASSY, straw walker driven 66T, regular, serial no. 19000 and below

1шт.

23

196202C1

SPROCKET ASSY.

SPROCKET ASSY, straw walker driven 57-T, fast speed 160 RPM, parts accessory, serial no. 19000 and below, regular, serial no. 19001 and above

1шт.

NLS

NO LONGER SERVICED

5/16 C-Z hex jam

1шт.

22339R1

SCREW, 5/16 x 1-1/4 znd sq-hd cup-pt set

1шт.

24

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

25

578609R1

BOLT,7/16" - 14 x 5"

straw walker drive chain tightener

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

2шт.

26

935157R1

STRIP, straw walker dirve chain tightener bolt

1шт.

27

157183C1

VALVE BLOCK

SECTION, separator front check flap

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 hex-hd mach

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga

4шт.

28

157179C2

FLAP

separator front check

1шт.

29

157176C1

ROD

separator check flap

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

30

157180C1

FLAP

separator rear check

1шт.

31

157178C91

CHAIN ASSY, separator front check flap adjustment

1шт.

18655R1

BOLT,Hex, 1/4"-20 x 1", G2

1/4 x 1 type 1

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga

1шт.

237585R1

HOSE CLAMP,#13, 13/16", Spring

CLAMP, spring wire hose

1шт.

32

H59564

PIN

separator front check flap adjustment chain

1шт.

33

196095C1

STRIP, straw walker crank seal

4шт.

34

178209C1

BAR, seal retainer strip

8шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

16шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

16шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

16шт.

35

196301C1

SHIELD ASSY, crankshaft

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

180579C91

STRAW WALKER BEARING CRANK SEALS, parts accessorys, consists of ref. nos. 35 and 36 and 1095281 instruction manual

1шт.
