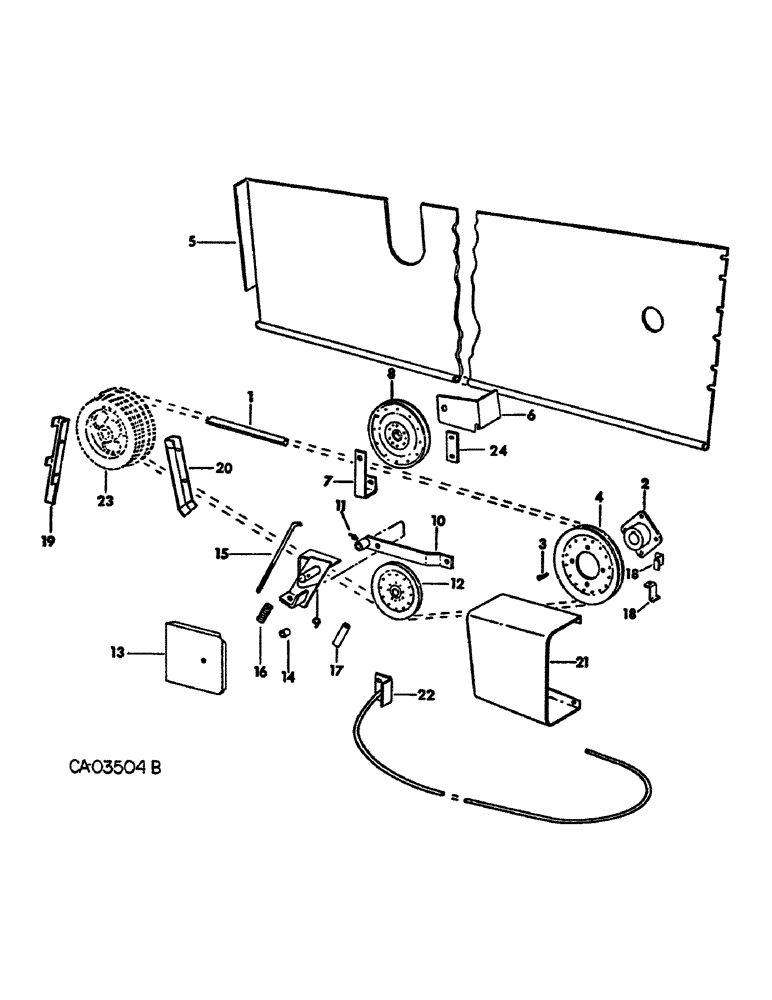

Запчасти Case IH 815 (20-11) - SEPARATOR, STRAW CHOPPER, DRIVE Separation

1

177499C1

V-BELT,0.897" W x 275.19" L

BELT 0.879" W x 275.19" L, Straw chopper drive

1шт.

2

174643C1

HUB, driven pulley

1шт.

3

Q3952

KEY,Gib, 3/8" Sq x 2 3/4"

3/8 x 2-3/4 sq tapered

1шт.

4

171261C11

PULLEY

ASSY, driven 9-3/4 in. OD

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

4шт.

5

SIDE, hood lower LH, refer to this group under separator hood for unit listing

1шт.

5

SIDE, hood lower RH, refer to this group under separator hood for unit listing

1шт.

6

179242C1

SUPPORT

ASSY, upper drive idler

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .34 x .69 x .06 znd

1шт.

120394

WASHER,3/8", SAE

WASHER, .41 x .81 x .06 znd

1шт.

7

196376C1

GUIDE

drive belt rigid idler

1шт.

8

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

ASSY, drive idler flat 8-3/4 in. OD

1шт.

19544R1

BOLT,Hex, 5/8"-11 x 3 1/4", G2

5/8 x 3-1/4 type 1

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 znd hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

2шт.

320993R1

SPACER,7/8" Tube x 1/2"

2шт.

9

177472C3

SUPPORT

ASSY, idler pivot

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

2шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 C-Z slt-truss-hd

2шт.

10

174651C2

ARM

ASSY, tightener pulley pivot

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

21753R1

WASHER

25/32 x 1-1/2 x 16 ga C-Z

1шт.

11

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 STR self-tap. lub

1шт.

12

574097R91

PULLEY

drive belt tightener 7-5/16 in. OD

1шт.

18826R1

BOLT,Hex, 5/8"-11 x 3", G2

5/8 x 3 type 1

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

2шт.

13

196363C1

SHIELD, tightener pulley

1шт.

14

583773R1

SPACER

tightener pulley shield

1шт.

15

177476C1

ROD

tightener arm spring tension

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

460908R1

WASHER

.531 x 1.500 x .105

1шт.

568382R1

WASHER, spring spherical

1шт.

16

PO3A

SPRING

tension

1шт.

17

27631R1

SPACER,1 1/2"X-Strng Pipe x .600"

tightener arm spring

1шт.

18

174620C1

STRAP, belt hanger rear

2шт.

19

174658C1

GUIDE ASSY, drive belt front

1шт.

20

174660C1

SUPPORT

GUIDE ASSY, drive belt rear

1шт.

21

187175C1

SHIELD, straw chopper drive rear

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

3шт.

22

174634C1

SHIELD

ASSY, straw chopper hoop

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

4шт.

23

PULLEY, separator drive, refer to group 7 under separator drive for unit listing

1шт.

24

196375C1

BAR

straw chopper belt trap

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.
