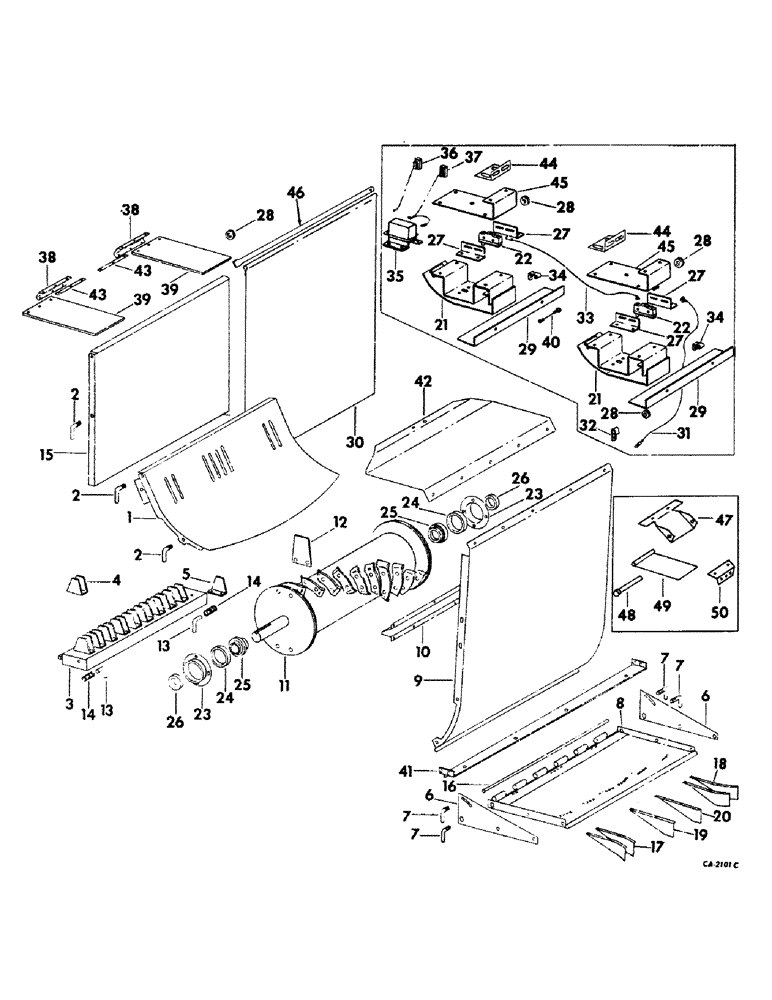

Запчасти Case IH 815 (20-08) - SEPARATOR, STRAW CHOPPER, ROTOR AND DEFLECTORS Separation

1

174699C1

DEFLECTOR

ASSY, straw chopper lower front

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

6шт.

2

174685C1

BOLT,Adj, 3/8" - 16 x 2.10", 2.50"

straw chopper lower front deflector adjust

6шт.

174688C1

NUT

3/8 C-Z flange lock

6шт.

3

174701C91

SUPPORT ASSY.

BAR ASSY, straw chopper concave, includes ref. nos. 4 and 5

1шт.

4

174680C1

BLADE

straw chopper concave

1шт.

104235

RIVET,FH, 3/16" x 1/2"

1шт.

5

174681C1

BLADE

straw chopper concave end

1шт.

104235

RIVET,FH, 3/16" x 1/2"

2шт.

6

172514C1

SUPPORT

straw chopper rear deflector

2шт.

7

174971C1

BOLT,Adj, 5/16" - 18 x 1.60", 2"

straw chopper rear deflector

1шт.

161946C1

NUT

5/16 flange lock

1шт.

564266R1

NUT

5/16 tab

1шт.

8

175081C2

EXTENSION

straw chopper rear deflectors

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

9

174703C1

DEFLECTOR, separator hood rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

8шт.

541310R1

SPRING NUT

5/16-18 Tinnerman

6шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

8шт.

10

172749C1

DEFLECTOR, separator hood rear deflector air

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

14шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

14шт.

11

174639C91

ROTOR

ASSY, straw chopper, includes ref. no. 12

1шт.

12

197124C1

PACKAGE

SERVICE PACKAGE, straw chopper rotor

1шт.

487374

NUT, 1/2 flange lock

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

13

174689C1

PIN

stationary knife adj

2шт.

18607R1

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

2шт.

23408R1

WASHER

15/32 x 3/4 x 16 ga C-Z

1шт.

14

352105R1

SPRING

stationary knife adj pin

2шт.

15

177560C1

DEFLECTOR ASSY, straw chopper frt up

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 C-Z slt-truss-hd

2шт.

16

159012C1

ROD

straw chopper rear deflector support hinge

1шт.

17

174671C1

DEFLECTOR

straw chopper left, standard spread

2шт.

17

187244C1

DEFLECTOR

straw chopper left, wide spread

2шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 znd slt-truss-hd

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

18

174672C1

DEFLECTOR

straw chopper right, standard spread

2шт.

18

187245C1

DEFLECTOR

straw chopper right, wide spread

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 znd slt-truss-hd

1шт.

19

174673C1

DEFLECTOR

straw chopper left center, standard spread

1шт.

19

187242C1

SUPPORT

DEFLECTOR, straw chopper left center, wide spread

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 znd slt-truss-hd

1шт.

20

174674C1

DEFLECTOR

straw chopper right center, standard spread

1шт.

20

187243C1

DEFLECTOR, straw chopper right center, wide spread

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 znd slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

2шт.

21

BRACKET ASSY, straw chopper warning horn switch, order package 180781C91

2шт.

22

574649R91

SWITCH

straw chopper warning horn

2шт.

134530

NUT,Hex, #6 - 32

4шт.

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

no. 6 x 1-1/4 C-Z slt-pan-hd

4шт.

492-11006

LOCK WASHER,#6

Lock, #6

4шт.

131014

WASHER

.156 x .375 x .036

1шт.

23

936130R1

FLANGE

straw chopper rotor shaft brg

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

24

936131R1

RUBBER RING,92.46mm ID x 23.01mm OD x 23.01mm L

straw chopper rotor shaft brg

2шт.

25

936133R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

BEARING ASSY, straw chopper rotor shift

2шт.

26

455112R11

COLLAR

w/SET SCREW LKG

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 hex-soc-hd cup-pt set

2шт.

27

166225C2

SUPPORT

BRACKET, straw chopper warning horn switch, S/N 26000 and below

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

8шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z slt-truss-hd

8шт.

28

117959

GROMMET,5/16" ID x .719" x .062"

no. 3 rubber diagonal cut

3шт.

28

109390

GROMMET,5/16" ID x 23/32" x .062", Diag Cut

no. 4 rubber diagonal cut

2шт.

29

173860C2

RETAINER, straw chopper wire

2шт.

564791R1

SPRING NUT

1/4 speed

6шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

BOLT, 1/4 x 1/2 C-Z slt-truss-hd

6шт.

30

175031C1

FLAP

separator rear check

1шт.

31

174497C1

CABLE

engine to straw chopper micro switch, 192 in.

1шт.

32

366460R1

CABLE CLIP

CLIP, engine to straw chopper micro switch cable

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

1шт.

33

174494C1

CABLE, straw chopper front to rear micro switch, 60 in.

1шт.

34

365584R1

CLIP

straw chopper front to rear micro switch cable

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

6шт.

35

921926C1

SWITCH

RELAY, straw chopper

1шт.

19302R1

NUT

no. 10-24 C-Z hex.

2шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10-24 x 1/2 C-Z pan-hd SLT

1шт.

436734

SCREW,Slotted Pan Hd, #10-24 x 3/4"

no. 10-24 x 3/4 C-Z pan-hd SLT

1шт.

115707

LOCK WASHER,#10

Washer, Lock, #10

2шт.

36

174496C1

CABLE, straw chopper, Serial Range: relay-horn

1шт.

37

179118C1

CABLE, relay 70 fuse block, not used w/monitor control

1шт.

38

174693C1

SUPPORT

straw rack flap, straw rack end flap

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

12шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 whiz lock

12шт.

39

174694C1

FLAP

straw rack

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

12шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 whiz lock

12шт.

40

167580C91

CABLE, micro switch to ground, 2.5 in., S/N 26000 and below

1шт.

40

175008C1

CABLE ASSY.

CABLE, micro switch to ground, S/N 26001 and above

1шт.

41

175089C1

REINFORCEMENT, hinge

1шт.

9380017R1

NUT, 5/16 C-Z whiz lock

7шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

7шт.

42

175055C1

SHIELD, hood top rear

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z slt-truss-hd

2шт.

43

174695C1

STRIP, straw rack flap support

4шт.

44

168905C1

SUPPORT, straw chopper warning horn switch

2шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 C-Z sq-nk crg

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

45

161704C1

SUPPORT, straw chopper warning horn

2шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga C-Z

2шт.

46

157176C1

ROD

check flap

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

47

188742C1

SUPPORT, chopper warning horn switch, S/N 26001 and above

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

48

28051R1

HEADED PIN,3/8" x 3 3/4"

PIN, warning horn switch support, S/N 26001 and above

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

49

188743C1

HINGE, warning horn switch, S/N 26001 and above

1шт.

50

188744C1

SUPPORT, warning horn switch, S/N 26001 and above

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

180781C91

PACKAGE

SERVICE PACKAGE, straw chopper warning horn switch mounting support, replacement for 171173C1, consists of

1шт.

188742C1

SUPPORT

1шт.

188743C1

HINGE

1шт.

188744C1

SUPPORT

1шт.

28051R1

HEADED PIN,3/8" x 3 3/4"

PIN

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

NLS

NO LONGER SERVICED

.156 x .375 x .036

1шт.

175008C1

CABLE ASSY.

WIRE

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

1шт.

109390

GROMMET,5/16" ID x 23/32" x .062", Diag Cut

instruction manual

1шт.

180697C1

PACKAGE, straw chopper wide spread deflector, consists of

1шт.

187244C1

DEFLECTOR

ASSY, LH

2шт.

187245C1

DEFLECTOR

ASSY, RH

2шт.

187242C1

SUPPORT

DEFLECTOR CENTER, LH

1шт.

187243C1

DEFLECTOR CENTER, RH

1шт.
