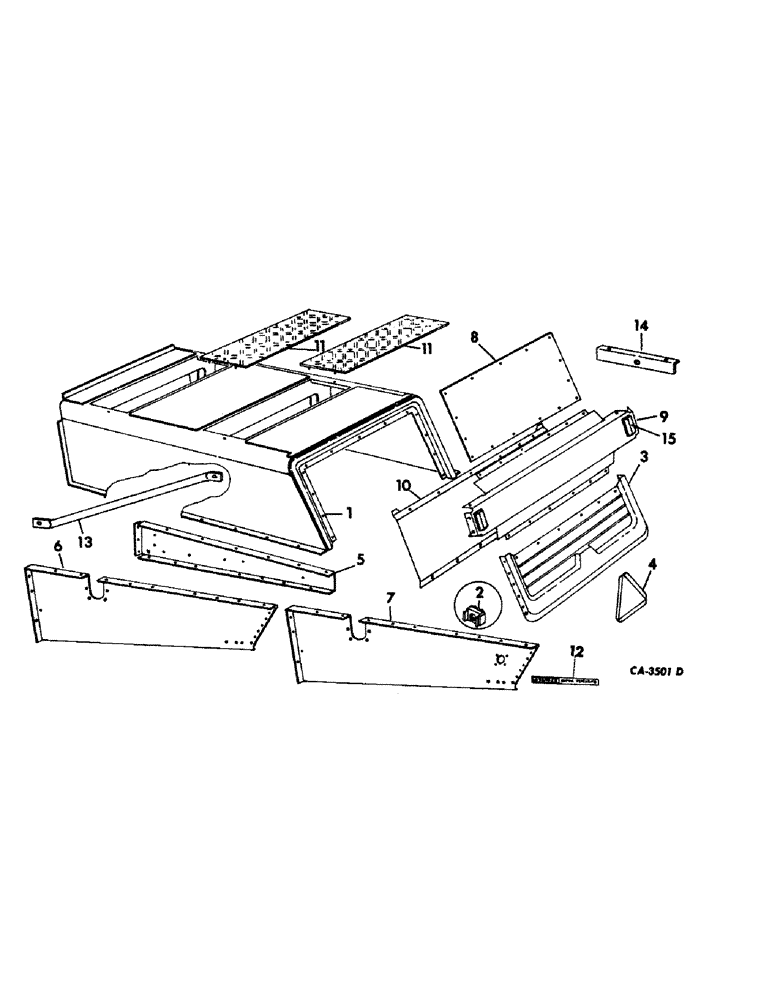

Запчасти Case IH 815 (20-03) - SEPARATOR, SEPARATOR HOOD Separation

1

161672C92

HOOD ASSY, separator

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

2

459063R1

SPRING NUT

5/16 speed grip

1шт.

2

168132R1

NUT

3/8 speed grip

1шт.

2

166705C1

NUT

5/16 speed grip

1шт.

3

160475C21

HOOD

ASSY, separator lower rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

17шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

12шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

5шт.

4

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

SMV emblem

1шт.

5

160473C2

SUPPORT, separator hood left

1шт.

5

160474C2

SUPPORT, separator hood right

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

6

177611C1

SECTION ASSY, separator rear hood lower LH, not straw chopper

1шт.

6

177612C1

SECTION ASSY, separator rear hood lower RH, not straw chopper

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

9шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

9шт.

7

180558C91

SIDE ASSY, hood lower LH, straw chopper

1шт.

7

180559C92

SIDE ASSY, lower RH, straw chopper

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

9шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

9шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

2шт.

182256R1

NUT, 3/8 flange lock

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

8

160997C1

SHEET, separator rear hood rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

14шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

14шт.

9

172086C1

SUPPORT, separator rear hood center

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

10шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

10шт.

10

174883C1

SHEET ASSY, separator hood rear filler

1шт.

11

179267C1

DOOR, separator top

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

14шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

14шт.

12

174797C1

DECAL

PRODUCT GRAPHIC, danger, rotor turning, straw chopper

2шт.

13

180399C1

PIPE, hood brace

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

14

196426C1

ANGLE, hood RH side, for straw chopper

1шт.

15

175311C1

REFLECTOR

red

1шт.
