(12-24) - POWER, FUEL PUMP AND CONNECTIONS, COMBINE W/GASOLINE ENGINE

Запчасти Case IH 815 (12-24) - POWER, FUEL PUMP AND CONNECTIONS, COMBINE W/GASOLINE ENGINE Power

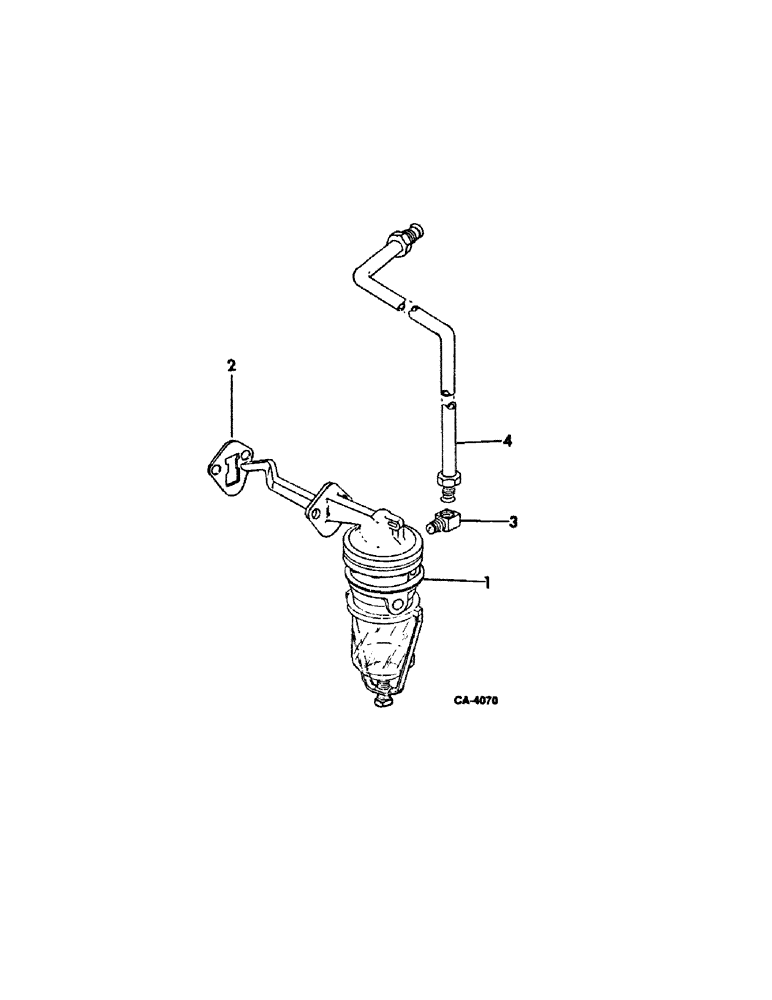

Схема запчастей Case IH 815 - (12-24) - POWER, FUEL PUMP AND CONNECTIONS, COMBINE W/GASOLINE ENGINE Power
3
4
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

151289R92

PUMP

ASSY, fuel

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

128868H

GASKET

fuel pump

1шт.

3

137422

ELBOW

TUBE, fuel pump to carb., use 28-1/2 in. of 5/16 OD copper tubing from a roll of 50 ft. marked 995062R1 and two 142427 nuts

1шт.
