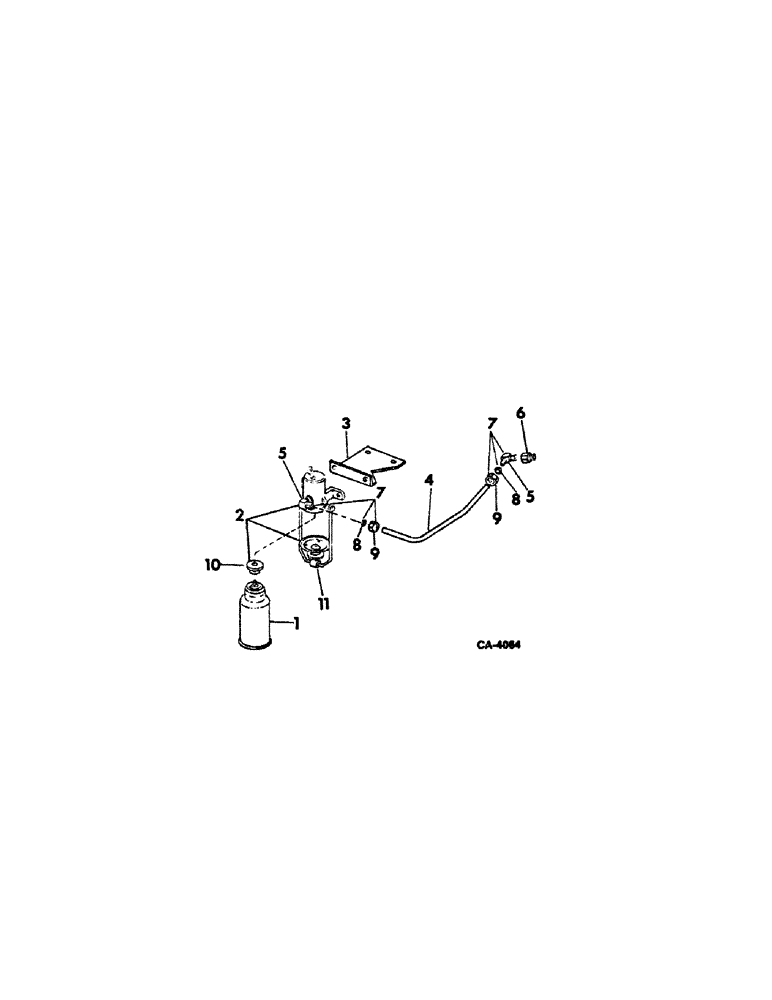

Запчасти Case IH 815 (12-24[1]) - POWER, ETHER STARTING, DIESEL ENGINE, SOLENOID OPERATED Power

1

385064R91

FLUID

ether starting, 12 oz can

1шт.

2

121842C91

SOLENOID SWITCH

SOLENOID ASSY, ether starting

1шт.

120376

NUT,5/16"-18, G5

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 C-Z hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

2шт.

3

538012R2

BRACKET

ether starting

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 znd hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

4

107524C1

TUBE, starting fluid 1" OD, 9.85, 1.85" Length

1шт.

5

140303

ELBOW

ball sleeve

2шт.

6

269635R91

NOZZLE CAP

NOZZLE ASSY, ether starting fluid

1шт.

7

140304

ELBOW

1/8-27 90 deg ball sleeve tube

2шт.

8

121322

SLEEVE,Ball Type, 1/8" tube

tube connector

2шт.

9

121220

TUBE NUT

NUT, tube connector

2шт.

10

395686R1

GASKET

ether starting injector

1шт.

11

121851C1

RETAINER

BAIL ASSY, injector

1шт.
