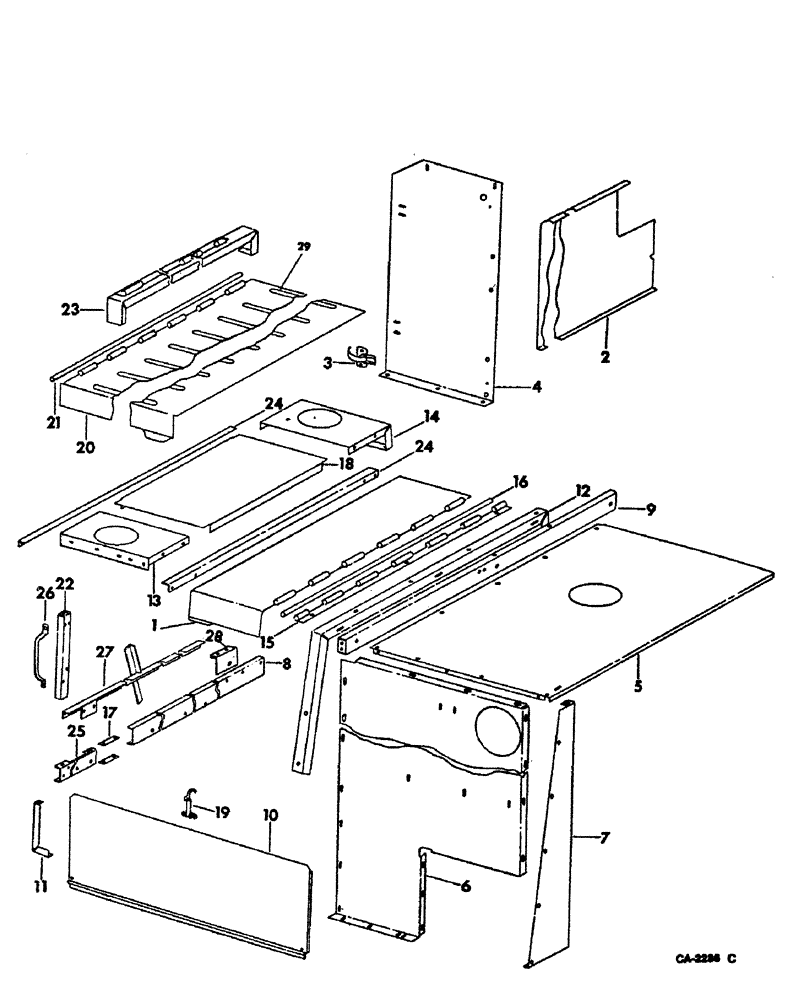

Запчасти Case IH 815 (12-14) - POWER, ENGINE COVER, GASOLINE ENGINE, SERIAL NO. 19000 AND BELOW Power

1

178296C1

DOOR ASSY, engine hood RH

1шт.

2

178676C1

COVER ASSY, engine LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znp flange lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

2шт.

3

168481C1

LATCH ASSY.

LATCH, engine LH cover

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

no. 10 x 1/2 znp slt-pan-hd

4шт.

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

WASHER, LOCK, #10

4шт.

607893R1

WASHER

.203 x .50 x 16 ga znd

4шт.

4

178304C1

SUPPORT, engine cover LH rear bottom

1шт.

5

178305C1

COVER, engine hood RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

8шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

8шт.

6

178306C1

SHEET, engine hood rear RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

8шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

8шт.

7

178307C1

SHEET, engine hood side RH

1шт.

908017R1

NUT, 5/16 C-Z flange lock

6шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

6шт.

8

178308C1

CHANNEL, engine hood lower support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

4шт.

9

178309C1

CHANNEL, engine hood rear up

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

4шт.

10

178327C1

DOOR ASSY, engine hood rear cover

1шт.

11

178310C1

ANGLE, engine hood support LH and RH

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

178311C1

SECTION, engine hood upper RH support

1шт.

13

178312C1

SECTION, engine hood LH center

1шт.

14

178313C1

SECTION, engine hood RH center

1шт.

15

178314C1

HINGE, engine hood RH

1шт.

16

588209R1

ROD, engine hood RH hinge

1шт.

17

178315C1

ANGLE, engine hood center support

2шт.

18

178316C1

DOOR, carburetor access

1шт.

19

353443R91

LATCH ASSY.

LATCH, engine hood

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

no. 10-32 x 1/2 C-Z pan-h SLT mach

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, , Hood Assy, Engine LH #10

1шт.

21

568476R1

ROD

engine LH hood hinge

1шт.

22

172691C1

CHANNEL, engine hood

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

2шт.

23

174322C1

CHANNEL ASSY, engine hood LH center

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

2шт.

24

174315C1

STRAP, engine hood support upper

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

8шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

8шт.

25

174314C1

CHANNEL, engine support lower, use 34 in. of 364361C1 bulk stock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

3шт.

26

188674R1

HANDLE, engine hood channel

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

2шт.

27

178774C1

ANGLE ASSY, engine cover LH

1шт.

28

179085C1

ANGLE, engine cover

1шт.

29

167409C1

TAPE, engine LH hood non-skid

8шт.
