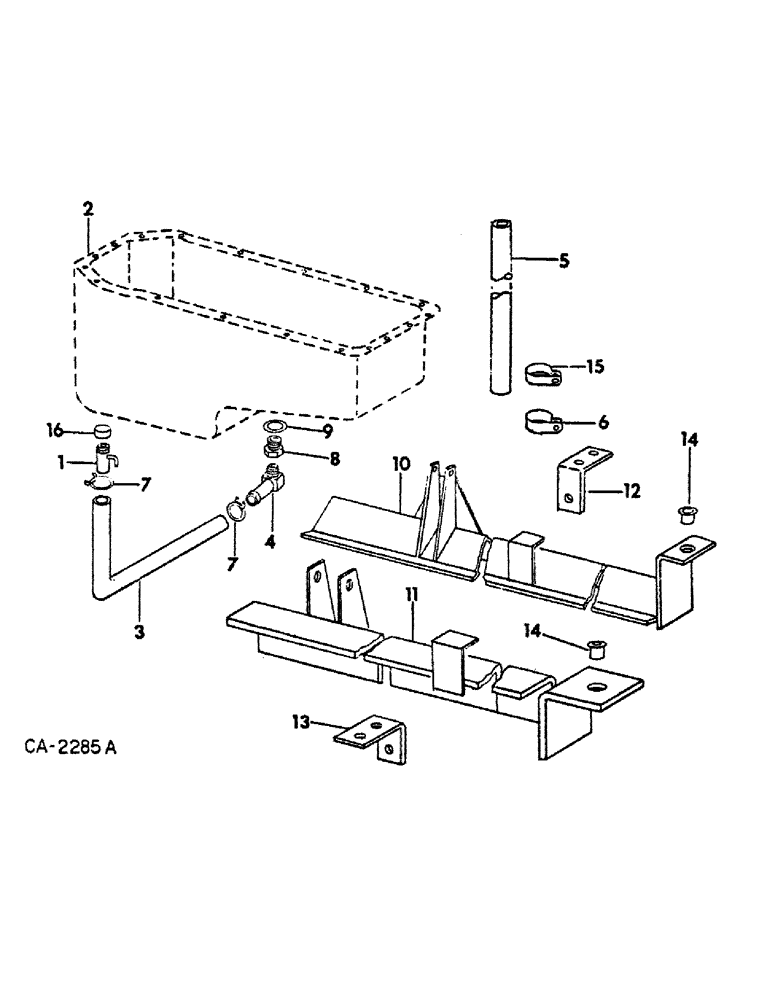

Запчасти Case IH 815 (12-12) - POWER, CRANKCASE OIL PAN, GASKET, OIL DRAIN AND ENGINE MOUNTINGS, DIESEL ENGINES Power

1

165203C91

FITTING

ASSY, oil drain

1шт.

2

PAN ASSY, oil, refer to ENG-5 parts catalog section J for unit listing

1шт.

3

HOSE, oil pan drain, use 50 in. of 5/8 ID from 25 ft roll marked 180719C1

1шт.

4

864456R1

NIPPLE, LUBE

NIPPLE, oil drain hose, 3/8 x 90 deg

1шт.

5

HOSE, crankcase breather extension, use 34 in. of 364361C1 bulk stock

1шт.

6

681146R1

HOSE CLAMP,#22, 1 3/8", Spring

CLAMP, crankcase breather extension hose

1шт.

7

112700R1

HOSE CLAMP,#15, 15/16", Spring

CLAMP, oil drain hose

2шт.

8

165419C1

PLUG

oil drain

1шт.

9

3405H

GASKET

oil pan drain plug

1шт.

10

177816C1

RAIL ASSY, engine support LH

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znd hex-hd lock

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

20033R1

LOCK NUT

NUT, 5/8-11 hex, nylon insert lock

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2 x 1-3/4 hex-hd cap

4шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8 x 3-1/4 hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

11

177824C1

RAIL ASSY, engine support RH

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2 x 1-3/4 hex-hd cap

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8 x 3-1/4 type 5

1шт.

20033R1

LOCK NUT

NUT, 5/8 cad p/t lock type 5

1шт.

12

177828C1

BRACKET, engine mounting left frt

1шт.

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

SCREW, 5/8 x 3-3/4 znd hex-hd cap

2шт.

13

177829C1

SUPPORT engine mounting right frt

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, 5/8 x 3-3/4 znd hex-hd cap

2шт.

14

528506R1

INSULATOR

MOUNT, frt vibration

2шт.

20033R1

LOCK NUT

NUT, 5/8 CDP hex. nylon insert

2шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8 x 2-1/4 znd hex-hd cap

2шт.

21882R1

WASHER, 21/32 x 2 x .06 znd

2шт.

15

129355H1

NO LONGER SERVICED

CLAMP, crankcase breather extension hose

1шт.

16

221-1524

CAP,3/8" NPT

3/8 znp malleable iron

1шт.
