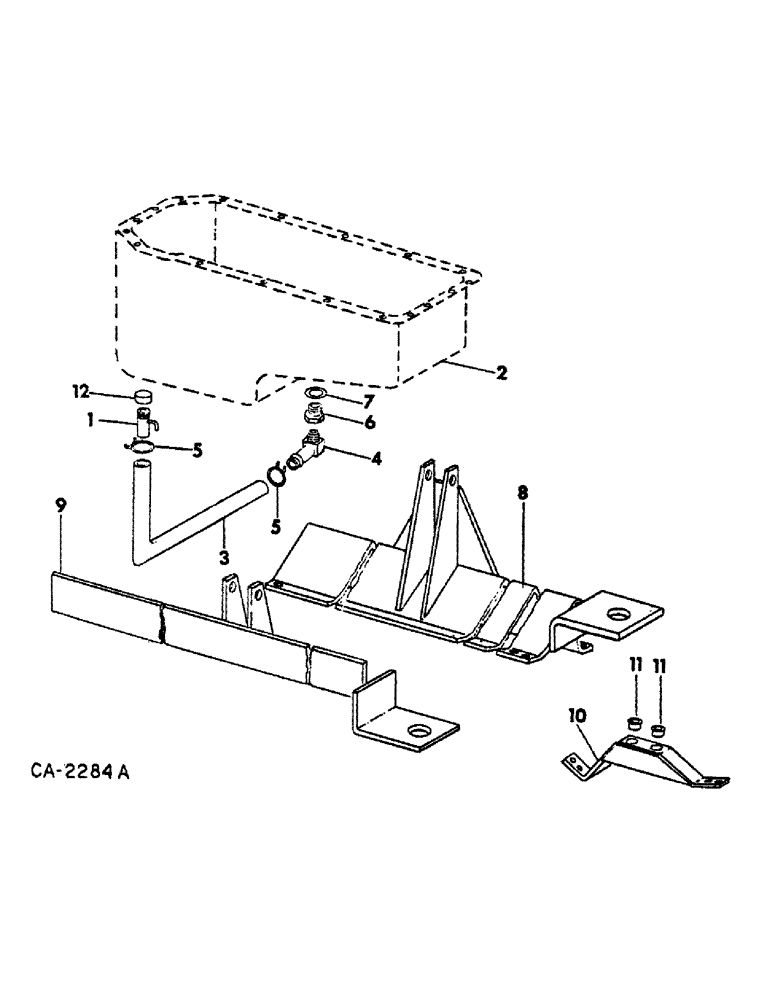

Запчасти Case IH 815 (12-10) - POWER, CRANKCASE OIL PAN, GASKET, OIL DRAIN AND ENGINE MOUNTINGS, GASOLINE ENGINE Power

1

165203C91

FITTING

ASSY, oil drain

1шт.

2

PAN ASSY, oil, refer to ENG-3 parts catalog section B for unit listing

1шт.

282245C1

SCREW

BOLT, mounting

16шт.

285356C1

SCREW

pan lock

2шт.

3

165202C1

HOSE,0.63" ID x 50.00"

Oil Drain 0.63" ID x 50.00"

1шт.

4

864456R1

NIPPLE, LUBE

NIPPLE, oil drain hose, 3/8 x 90 deg

1шт.

5

112700R1

HOSE CLAMP,#15, 15/16", Spring

CLAMP, oil drain hose

2шт.

6

165419C1

PLUG

oil pan drain

1шт.

7

3405H

GASKET

oil pan drain plug

1шт.

8

177811C1

RAIL ASSY, engine support LH

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znd hex-hd lock

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

20033R1

LOCK NUT

NUT, 5/8 CDP hex. nylon insert

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2 x 1-3/4 znd hex-hd cap

4шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

SCREW, 5/8 x 3-1/4 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

9

177820C1

RAIL ASSY, engine support RH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

20033R1

LOCK NUT

NUT, 5/8 CDP hex. nylon insert

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2 x 1-3/4 znd hex-hd cap

3шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8 x 3-1/4 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

10

177830C1

SUPPORT ASSY, engine mounting frt

1шт.

19071R1

CARRIAGE BOLT,#3, 1/2" - 13 x 1 1/2", Gr 2

BOLT, 1/2 x 1-1/2 znd plow

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

19676R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 CDP hex. nylon insert

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 C-Z hex-hd cap

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2 x 2-1/4 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

22197R1

WASHER

.53 x 1.750 x .054 znd

2шт.

120396

WASHER

.53 x 1.06 x .10 znd

2шт.

11

400159R1

BUMPER

MOUNT, frt vibration

2шт.

12

221-1524

CAP,3/8" NPT

3/8 znp malleable iron pipe

1шт.
