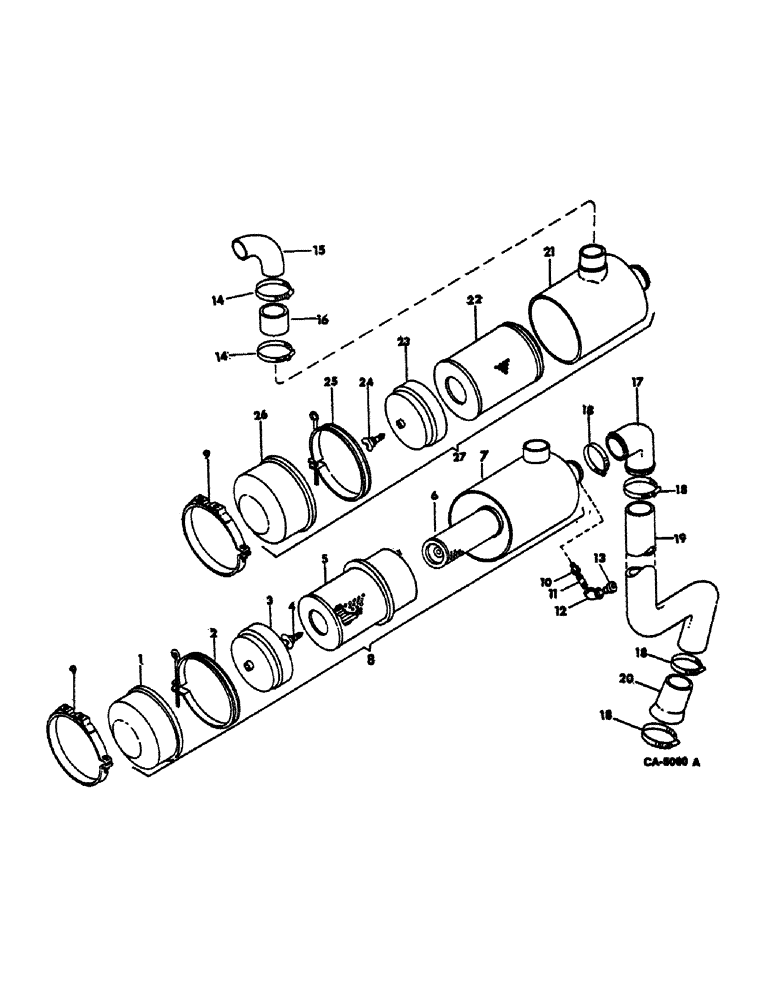

Запчасти Case IH 815 (12-07) - POWER, AIR CLEANER, GASOLINE, SERIAL NO. 19000 AND BELOW Power

1

404194R1

COVER

CUP ASSY

1шт.

2

130879HB

CLAMP

ASSY

1шт.

3

404173R1

BAFFLE

1шт.

4

381342R2

NUT ASSY.

NUT, ASSY

1шт.

5

61122C1

CLEANER

ELEMENT ASSY, safety

1шт.

6

529852R4

FILTER, ELEMENT

ELEMENT ASSY, safety

1шт.

7

BODY, air cleaner, order 107680C91 air cleaner

1шт.

8

107680C91

CLEANER

ASSY, air, includes ref. nos. 1 thru 7

1шт.

9

346667R91

BAND ASSY, air cleaner mtg, united specialties div, optional for 603697C91 and 978194R1

2шт.

9

603697R91

BAND ASSY, air cleaner mtg, mercury, metals, optional for 346667R91 and 978194R91

2шт.

9

978194R91

BAND ASSY, air cleaner mtg, Donaldson, optional for 346667R91 and 978194R91

2шт.

9

978194R91

BAND ASSY, air cleaner mtg, Donaldson, optional for 346667R91 and 603697C91

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 3/8 x 7/8 hex-hd cap

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

WASHER, 3/8 med lock

4шт.

10

389908R91

ADAPTER

ASSY, indicator

1шт.

11

120549

NIPPLE, 1/8 x 2-1/2 long Nipple, 1/8" NPT x 2 1/2"

1шт.

12

105423

ELBOW,90 Degree, 1/4" NPT Street

1/8 x 90 deg street

1шт.

13

877601C1

SPARE PART

INDICATOR, air retrictor

1шт.

14

274089R91

CLAMP

air cleaner intake tube

2шт.

15

170149C1

TUBE, air cleaner intake

1шт.

16

403469R1

HOSE, air cleaner intake tube

1шт.

17

304398R1

ELBOW

air cleaner outlet

1шт.

18

397257R1

HOSE CLAMP,#52, 2.81/3.75 Type F Worm, W/liner

CLAMP, air cleaner hose

4шт.

19

59655C1

TUBE, air cleaner outlet

1шт.

20

403470R2

HOSE, Serial Range: pipe-carburetor

1шт.

21

BODY, air cleaner, order 107680C91 air cleaner assy ref. no. 8

1шт.

22

529373R1

ELEMENT

ASSY

1шт.

23

404193R1

BAFFLE

1шт.

24

381342R91

NUT

ASSY

1шт.

25

130879HB

CLAMP

ASSY

1шт.

26

404194R1

COVER

CUP ASSY

1шт.

27

CLEANER ASSY, dry type air, order 107680C91 air cleaner assy ref. no. 8

1шт.
