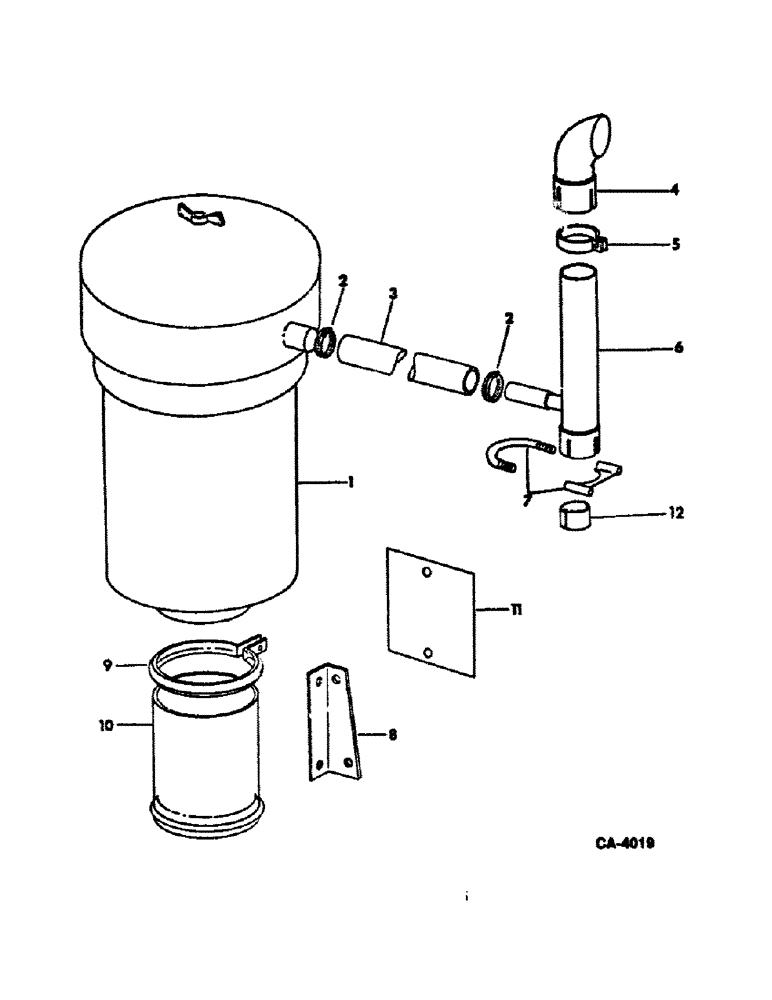

Запчасти Case IH 815 (12-04) - POWER, ASPIRATED PRE-CLEANER, PRE-SCREENER COMBINE W/DIESEL ENGINE Power

60530C91

PARTS ACCESSORY, aspirated pre-cleaner pre-screener

1шт.

1

533100R91

PRESCREENER

PRE-CLEANER, PRE-SCREENER, for components see list of parts under detail of pre-cleaner, pre-screener this group

1шт.

2

333710R91

HOSE CLAMP,#16, 0.81/1.50 Type F Worm

SWITCH MOUNTING, ejector hose

2шт.

3

533310R1

HOSE,1.25" ID x 36.00"

Exhaust Ejector 1.25" ID x 36.00"

1шт.

4

527269R1

PIPE

exhaust

1шт.

5

391156R1

CLAMP

exhaust pipe

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8 x 1-1/2 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

6

533182R1

BODY

EJECTOR, exhaust

1шт.

7

68219C91

KIT

PACKAGE, muffler clamp

1шт.

535993R1

NUT

muffler clamp

2шт.

8

60533C1

ANGLE, pre-cleaner support

1шт.

9

653239C1

CLAMP

air cleaner tube

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

10

60534C1

TUBE, air cleaner inlet 4.5" OD, 27" Length

1шт.

11

60532C1

PLATE, air intake cover

1шт.

12

533184R1

SLEEVE

exhaust ejector

1шт.
