Запчасти Case IH 815 (12-03[1]) - POWER, AIR CLEANER, AIR MAZE, COMBINES W/DIESEL ENGINE Power

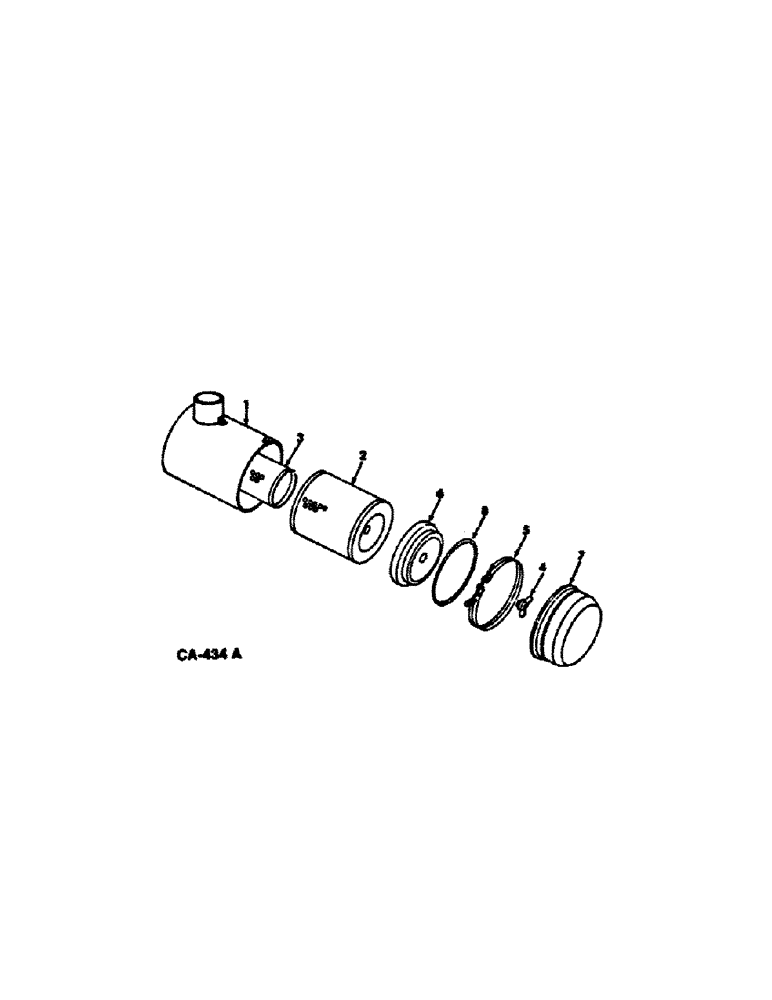

Схема запчастей Case IH 815 - (12-03[1]) - POWER, AIR CLEANER, AIR MAZE, COMBINES W/DIESEL ENGINE Power
7
6
4
8
5
2
1
3

Артикул

Название

Примечание

Количество

528505R93

FILTER CARTRIDGE

CLEANER ASSY, dry type, air maze, includes ref. nos. 1 thru 9

1шт.

1

(Not serviced separately) order air cleaner assy 528505R93

1шт.

2

619652C1

ELEMENT

ASSY, primary

1шт.

3

619651C1

ELEMENT

ASSY, safety

1шт.

4

225861

NUT,5/8"-18, G8

5/8-16 znd hex.

1шт.

5

445684

PLUG

pipe

1шт.

6

530115R1

BOLT ASSY, wing

1шт.

7

702639C91

CLAMP ASSY

1шт.

8

529586R1

BOWL, sub assy

1шт.

9

529587R2

PLATE, louver assy

1шт.

Выбрано товаров: 10
