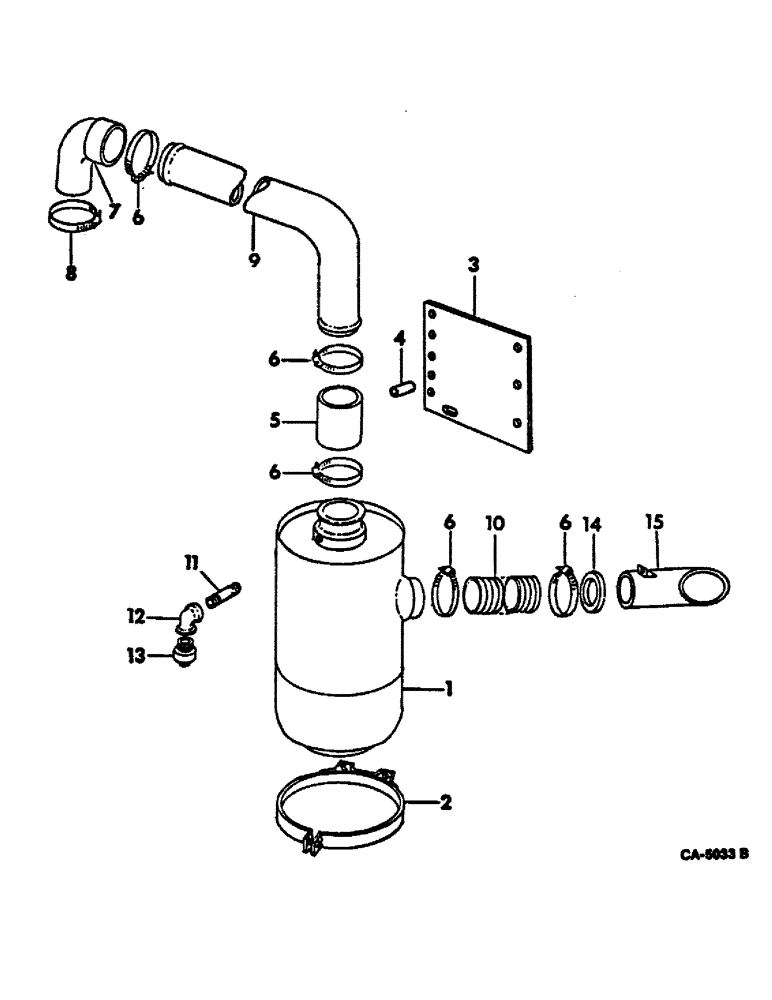

Запчасти Case IH 815 (12-01) - POWER, AIR CLEANER AND CONNECTIONS, COMBINES W/DIESEL ENGINE Power

1

530751R92

CLEANER ASSY.

CLEANER ASSY, dry type, Donaldson, optional w/528505R93

1шт.

1

528505R93

FILTER CARTRIDGE

CLEANER ASSY, dry type, air maze, optional w/530751R92, for components see list of parts under detail of air cleaner assy

1шт.

2

259922C91

BAND

ASSY, air cleaner mounting

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

4шт.

446363

WASHER,5/16"

.375 x .875 x .064

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

3

59645C1

BRACKET, air cleaner mounting

1шт.

180087

SPRING

5/16 x 2 type 5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120376

NUT,5/16"-18, G5

3шт.

4

364002R1

SPACER,3/8" Pipe x 1"

3/8 x 1 std pipe

3шт.

5

548219R1

INTAKE AIR HOSE,4.00" ID x 4.00"

HOSE, air cleaner

1шт.

6

397270R1

HOSE CLAMP,#72, 4.06/5.00 Type F Worm, W/liner

CLAMP, air cleaner hose

5шт.

7

548225R1

INTAKE AIR HOSE,3.25" ID, 4.00" ID x 6.50"

ELBOW, intake inlet

1шт.

8

400446R1

HOSE CLAMP,#56, 3.06/4.00 Type F Worm, W/liner

CLAMP, elbow intake end

1шт.

9

59647C1

TUBE,4.5" ID, 34" Length

air cleaner intake

1шт.

10

59649C91

TUBE ASSY, air cleaner outlet

1шт.

11

120549

NIPPLE, 1/8 x 2-1/2 long pipe Nipple, 1/8" NPT x 2 1/2"

1шт.

12

86534426

PIPE FITTING

1/8 90 deg. street brass

1шт.

13

366078C1

INDICATOR

air restriction

1шт.

14

177869C1

SEAL,4.5" ID x 5.5" OD x 0.5"

SEAL, air cleaner inlet

1шт.

15

177867C1

TUBE ASSY, air cleaner inlet

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.
