Запчасти Case IH 815 (26-22) - GRAIN TANK, GRAIN TANK UNLOADER UPPER Grain Tank

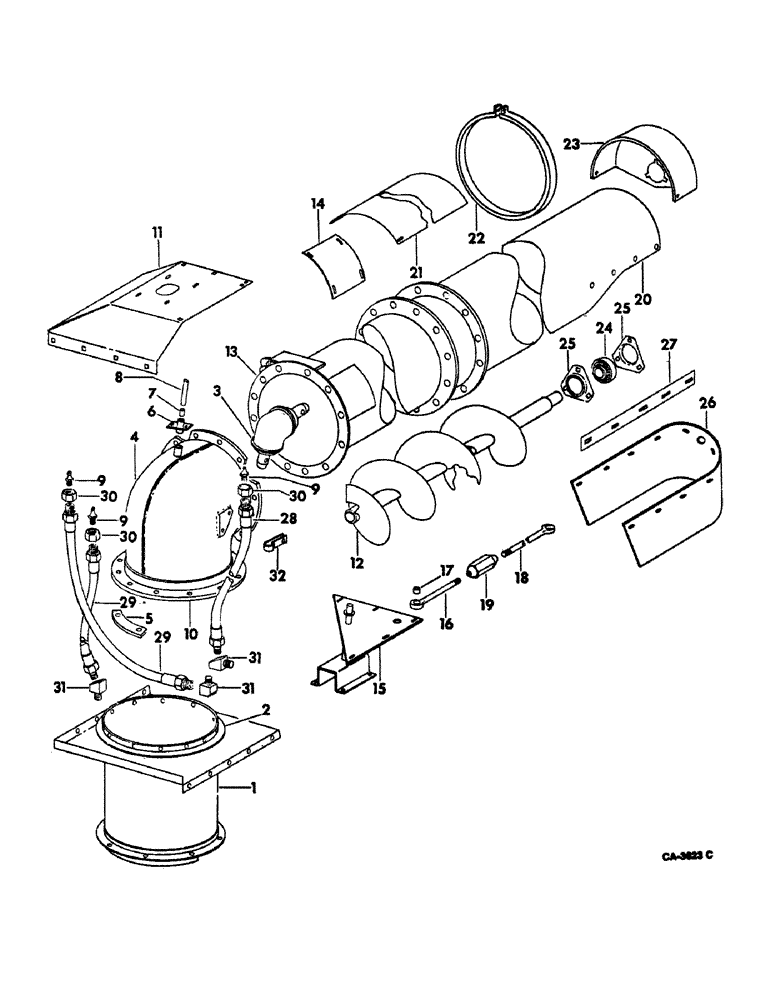

Схема запчастей Case IH 815 - (26-22) - GRAIN TANK, GRAIN TANK UNLOADER UPPER Grain Tank
7
28
30
31
31
21
24
8
13
1
2
29
25
23
25
14
12
30
9
3
9
32
29
17
27
9
20
30
22
11
18
31
26
16
5
6
4
10
19
15

Артикул

Название

Примечание

Количество

1

178130C1

TUBE

ASSY, unloader vertical auger

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

15шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

23шт.

2

178134C1

RING

grain tank unloader swivel male

1шт.

106899

RIVET, 1/4 x 5/8 wagon-box-hd

12шт.

3

178189C91

CASE ASSY.

HOUSING ASSY, unloader gear bearing

1шт.

21335R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

3/8 x 3/4 hex-hd type 8

4шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

468286R1

HEADED PIN,12.7mm OD x 92.08mm L

PIN, 1/2 x 3.438 PHC type 5

1шт.

21899R1

HEADED PIN

PIN, 1/2 x 2.500 hd type 5

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16 x 5/8 hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

178140C1

ELBOW ASSY, grain tank upper unloader auger tube, includes ref. no. 10

1шт.

5

178177C1

BAR, unloading tube keeper

3шт.

120376

NUT,5/16"-18, G5

6шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2 type 5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

6

178145C91

PLATE

ASSY, grain tank unloading auger tube pivot, includes ref. no. 7

1шт.

120376

NUT,5/16"-18, G5

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 znd hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

561905R1

BUSHING

unloading auger pivot plate hub

1шт.

8

178148C1

SPACER

unloading auger pivot

1шт.

23061R1

BOLT,Hex, 5/8" - 11 x 4", Gr 8

5/8 x 4 znd hex-hd type 8

1шт.

9

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28NS STR lub

3шт.

10

178143C1

RING, unloading auger tube elbow

1шт.

106901

RIVET,Truss Hd, 1/4" x 7/8"

1/4 x 7/8 wagon-box-hd solid

12шт.

11

177988C1

SUPPORT, unloader top

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

178149C1

AUGER

ASSY, unloader final

1шт.

12

178172C1

AUGER

ASSY, unloader final, for use w/22.5 ft & 24 ft. headers and 8 row corn heads

1шт.

13

178153C1

TUBE ASSY, unloader auger upper front regular

1шт.

13

178175C2

TUBE ASSY, unloader auger upper front, for use w/22-1/2 or 24-ft headers & 8 row corn heads

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

663922R1

PIN,5/8" x 1 3/8"

5/8 x 1.375 hd type 1

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

14

178158C1

PLATE

unloader auger inspection

1шт.

15

196416C1

SUPPORT

ASSY, unloader tube, 24 ft header or 8 row corn head

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

21758R1

WASHER

25/32 x 1-1/4 x 16 ga

1шт.

16

179373C91

ROD ASSY, unloader upper support, 24 ft header or 8 row corn head

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

21341R1

HEADED PIN,1/2" x 1"

PIN, 1/2 x 1 std-hd

1шт.

17

363768R1

BUSHING

unloader tube support rod, 24 ft header or 8 row corn head

1шт.

18

179401C1

ROD, unloader tube outer upper support

1шт.

19

628698R1

TURNBUCKLE

unloader tube support rod, 24 ft header or 8 row corn head

1шт.

20

178160C1

TUBE

ASSY, unloader auger upper, grain, rice, and corn

1шт.

20

178163C1

TUBE ASSY, unloader auger upper, bean

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21

178165C1

COVER

auger tube perforated section, bean

1шт.

22

178166C1

CLAMP

auger tube perforated section cover, bean

3шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

23

178159C1

CAP

unloader auger outer end

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

24

155264C91

BALL BEARING,25.43mm ID x 52.09mm OD x 16mm W

ASSY, grain tank unloader auger outer bearing

1шт.

25

571424R1

FLANGE

grain tank unloader auger outer bearing

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

26

178167C1

SPOUT, DISCHARGE

DOWNSPOUT, grain tank unloader

1шт.

27

178168C1

STRIP

grain tank unloader downspout

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd mach

8шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

134238R1

WASHER

11/32 x 1 x 16 ga

10шт.

28

93777R91

HOSE ASSY, unloader tube elbow, 22 in.

1шт.

29

937782R91

HOSE

ASSY, unloader tube elbow, 31 in.

2шт.

30

581873R1

TUBE NUT,4.8 mm Length

tube elbow hose pipe

3шт.

31

213479R1

ADAPTER, 1/4-28 x 1/8-27 45 deg elbow

3шт.

32

589980R1

NO LONGER SERVICED

CLAMP, tube elbow hose

3шт.

Выбрано товаров: 83
