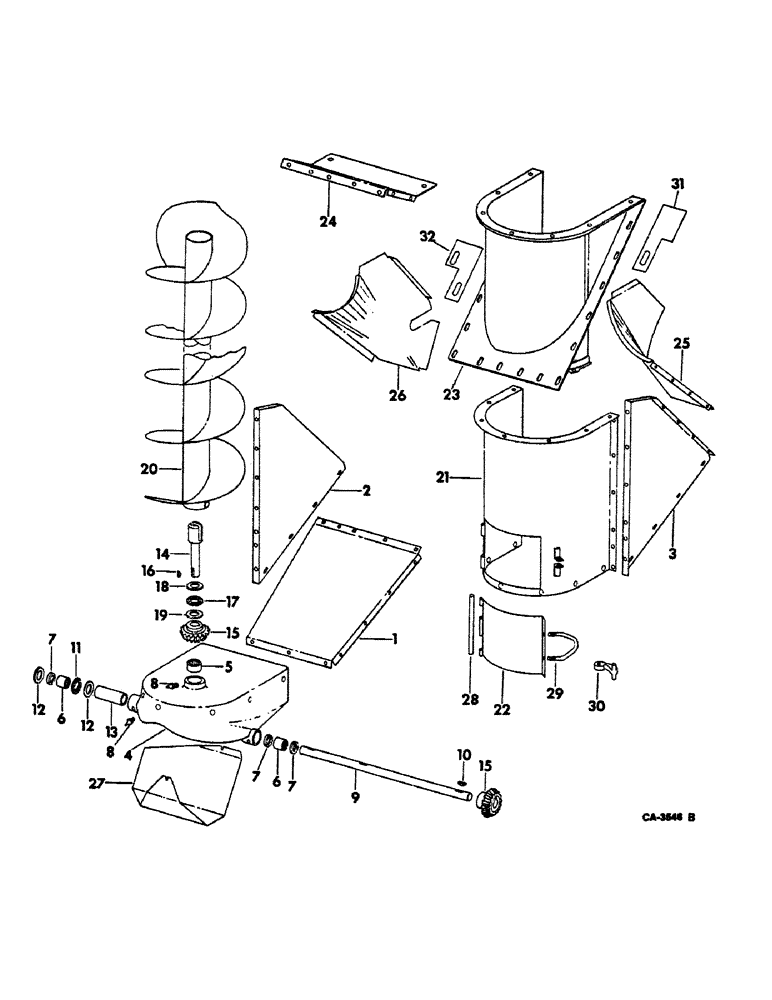

Запчасти Case IH 815 (26-20) - GRAIN TANK, GRAIN TANK UNLOADER LOWER Grain Tank

1

178123C2

SHEET

unloader vertical auger lower front

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

NUT, 5/16 hex.

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

178128C1

SIDE ASSY.

SIDE, vertical auger lower tube sump LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znp flange lock

14шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znp slt-truss-hd

14шт.

3

178129C1

SIDE ASSY.

SIDE, vertical auger lower tube sump RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

14шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znp slt-truss-hd

14шт.

4

178113C91

HOUSING

ASSY, unloader vertical auger lower gear, includes ref. nos. 5, 6 and 7

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

10шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

10шт.

5

157723C91

NEEDLE BEARING

ASSY, unloader vertical auger lower shaft needle

2шт.

6

271274R91

NEEDLE BEARING

ASSY, vertical auger lower gear housing lower shaft

2шт.

7

606749R91

OIL SEAL

ASSY, vertical auger lower gear housing lower shaft oil

2шт.

8

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 slft-tap STR lub

3шт.

9

178115C1

SHAFT

vertical auger lower gear housing lower

1шт.

10

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff hard

1шт.

11

568142R91

THRUST BEARING

ASSY, vertical auger lower gear housing lower shaft

1шт.

12

160560C1

WASHER

vertical auger lower gear housing lower shaft bearing thrust

2шт.

13

178188C1

SPACER

vertical auger lower gear housing

1шт.

14

178116C1

SHAFT

vertical auger lower gear

1шт.

162679C1

WASHER

WASHER, 1-13/32 x 2-1/4 x 16 ga hard

1шт.

21794R1

WASHER

1-13/32 x 2 x 20 ga znd

2шт.

15

166063C91

GEAR-SET

GEAR SET, unloader vertical auger lower service consists of matched gears 160109C1, 21T and 162165C1, 28T

1шт.

16

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

17

607146R91

THRUST BEARING,35.04mm ID x 51.99mm OD x 1.98mm W

ASSY, vertical auger lower driven gear shaft

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

26204R1

HEADED PIN,1/2" x 2 1/4"

PIN, 1/2 x 2-1/4 std-hd hard

1шт.

604641R1

HEADED PIN,1/2" x 3 1/4"

PIN, 1/2 x 3-1/4 std-hd hard

1шт.

18

607147R1

WASHER

WASHER, vertical auger lower gear bearing upper thrust

1шт.

19

157725C1

THRUST WASHER

WASHER, vertical auger lower gear bearing lower thrust

1шт.

20

178117C1

AUGER

ASSY, grain tank unloader vertical

1шт.

21

178124C1

TUBE

ASSY, lower auger extension

1шт.

22

178169C1

DOOR

ASSY, unloader lower auger

1шт.

23

178178C1

TUBE ASSY, lower unloader outer

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

14шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

14шт.

24

178182C1

FILLER, grain tank bottom

1шт.

25

178929C1

FILLER

ASSY, unloader inner

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

6шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

6шт.

26

178930C1

FILLER ASSY, unloader outer

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 C-Z slt-truss-hd

4шт.

27

178122C1

COVER, unloader vertical auger lower gear housing, serial no. 20423 and below, for serial no. 20424 and above refer to this group under grain tank and unloader drive

1шт.

28

54070D

ROD

PIN, unloader auger door

1шт.

29

155900C1

BOLT,1/4" - 20 x 4.24" W x 1.12" L

U-BOLT, unloader lower auger door

1шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4-20 nylon insert

2шт.

30

155909C1

LATCH

unloader lower auger door

1шт.

31

180512C1

FILLER, grain tank sump LH

1шт.

32

179998C1

FILLER, grain tank sump RH

1шт.
