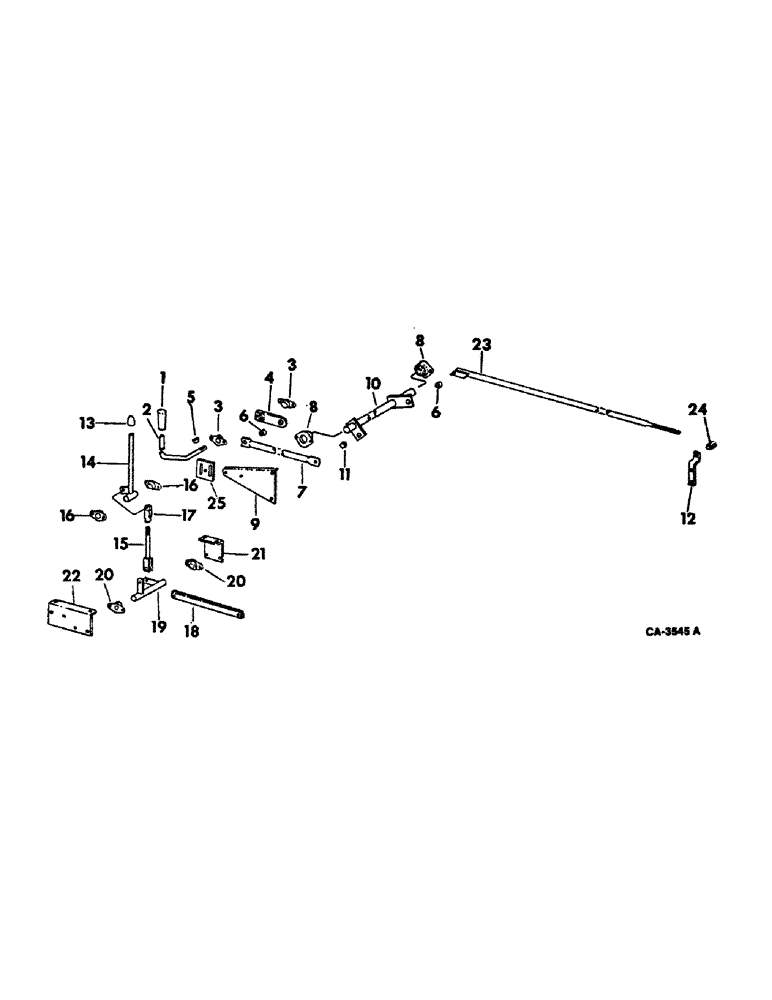

Запчасти Case IH 815 (26-18) - GRAIN TANK, GRAIN TANK UNLOADER CONTROL Grain Tank

1

157473C1

KNOB

GRIP, unloader control lever

1шт.

2

161649C1

LEVER, unloader control

1шт.

3

164864C91

FLANGE,15.89mm ID

BEARING ASSY, control lever

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

4шт.

4

161650C2

ARM

LEVER, unloader control link

1шт.

454467

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

3/8 x 1-3/4 znd hex-hd type 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 znd hex. type 8

1шт.

366862R1

WASHER, 3/8 znd ribbed lock

1шт.

5

18465D

WASHER

unloader control lever

1шт.

6

27251K

SPACER,5/8" Tube x 7/16"

unloader control upper pipe

3шт.

7

161652C1

PIPE, unloader control upper

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

274993

SHIELD

3/8 znd hex lock

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga znd

2шт.

274993

SHIELD

3/8 CAD p/t lock type 1

1шт.

8

157428C91

BUSHING

BEARING ASSY, control pivot shaft

2шт.

9

177540C1

BRACKET, control pivot shaft outer

1шт.

10

161653C91

LEVER ASSY, unloader control pivot

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga

1шт.

11

27251K

SPACER,5/8" Tube x 7/16"

unloader control lower link

1шт.

12

161658C1

SUPPORT, unloader control lower link trunnion

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

13

164338C1

KNOB, unloader control lever

1шт.

14

164795C91

HANDLE ASSY, unloader swing control

1шт.

15

164799C91

ROD ASSY, unloader swing adjusting

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

21881R1

CLEVIS PIN

PIN, 3/8 x 1 C-Z rod end

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

16

332508R91

BEARING ASSY, unloader control lever

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

4шт.

17

114243

PIN

CLEVIS, unloader swing link

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

21881R1

CLEVIS PIN

PIN, 3/8 x 1 rod end

1шт.

18

164802C91

ROD ASSY, swing unloader control valve

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

20155R1

CLEVIS PIN,3/16" x .719"

PIN, 3/16 x 23/32 C-Z rod end

1шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

21881R1

CLEVIS PIN

PIN, 3/8 x 1 C-Z rod end

1шт.

19

164805C91

LEVER ASSY, unloader swing

1шт.

20

382508R91

BEARING ASSY,0.752" ID x 0.81"

BEARING ASSY, unloader bellcrank shaft

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

21

164808C1

BRACKET, unloader swing bellcrank RH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

22

164809C1

BRACKET, unloader swing bellcrank LH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

23

178094C1

PIPE ASSY, unloader control lower

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga znd

1шт.

124944

JAM NUT,Hex, 5/8" - 18, Gr 5

2шт.

24

567995R1

TRUNNION, unloader control link

1шт.

25

167024C1

STRIP, unloader control adjusting stop

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
