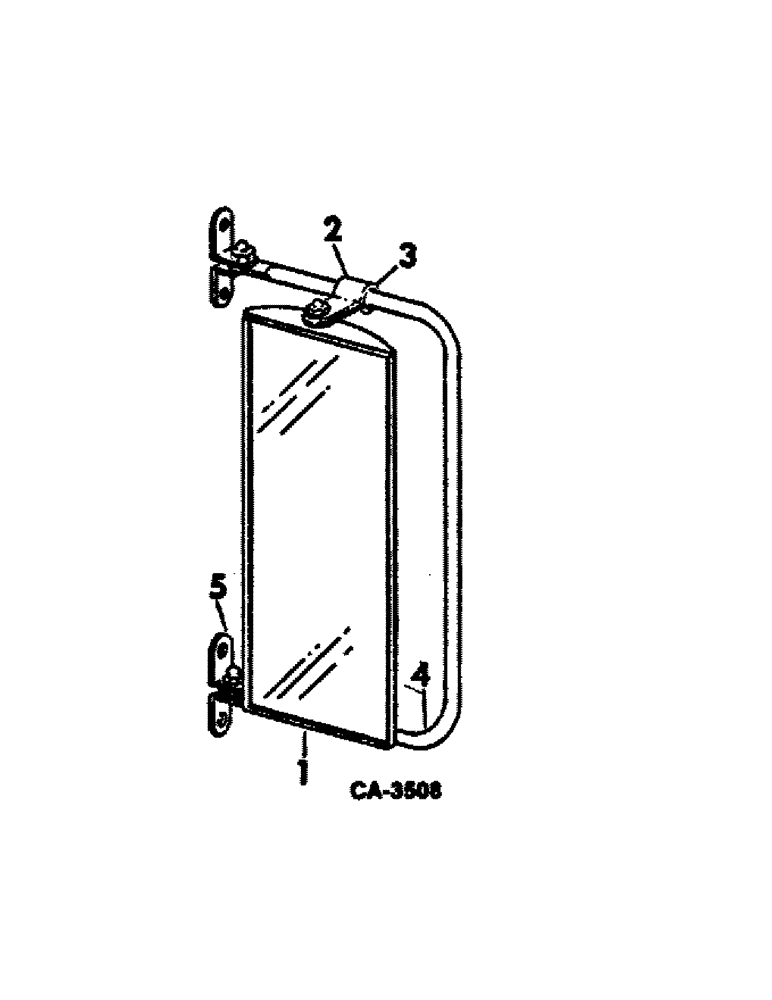

Запчасти Case IH 815 (26-17) - GRAIN TANK, GRAIN TANK RIGHT SIDE REAR VIEW MIRROR Grain Tank

527346R91

MIRROR ASSY, grain tank right side rear view, parts accessory, delbar, includes ref. nos. 1 thru 5, optional for 401358R91 mirror assy

1шт.

401538R91

MIRROR ASSY, grain tank right side rear view, parts accessory, pathfinder, includes ref. nos. 1 thru 5, optional for 527346R91 mirror assy

1шт.

1

527347R1

HEAD

ASSY, mirror, delbar

1шт.

131422

SUPPORT,Crown, 3/8"-16

NUT, 3/8 low crown

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

21843R1

WASHER

13/32 x 1 x 4 ga

2шт.

1

403628R1

HEAD

ASSY, mirror, pathfinder

1шт.

131502

NUT, 3/8 low crown

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051

4шт.

2

352299C1

BRACKET, mirror head, delbar

1шт.

231-2444

NUT,1/4"-28, GB

NUT, LOCK, 1/4"-28, GB

2шт.

181561

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

SCREW, 1/4-28 x 1/2 hex-hd mach cap

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

403629R1

BRACKET, mirror head, pathfinder

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-28 hex.

2шт.

181565

SCREW, 1/4-28 x 11/16 hex-hd cap

2шт.

120423

LOCK WASHER,Int Tooth, 0.267" ID x 0.478" OD x 0.028"

WASHER, LOCK, Int Tooth, 1/4"

2шт.

3

527348R1

GASKET, head bracket, delbar

1шт.

4

527349R1

SUPPORT

LOOP, mirror mounting, delbar

1шт.

4

403630R1

SUPPORT

LOOP, mirror mounting, pathfinder

1шт.

5

527350R1

BRACKET, mirror mounting, delbar

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 hex-hd cap

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

142619H

WASHER

.406 x .750 x .105

4шт.

5

403631R1

BRACKET, mirror mounting, pathfinder

4шт.

120369

NUT,3/8"-24, G5

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

181636

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5

SCREW, 3/8-24 x 7/8 hex-hd cap

2шт.
