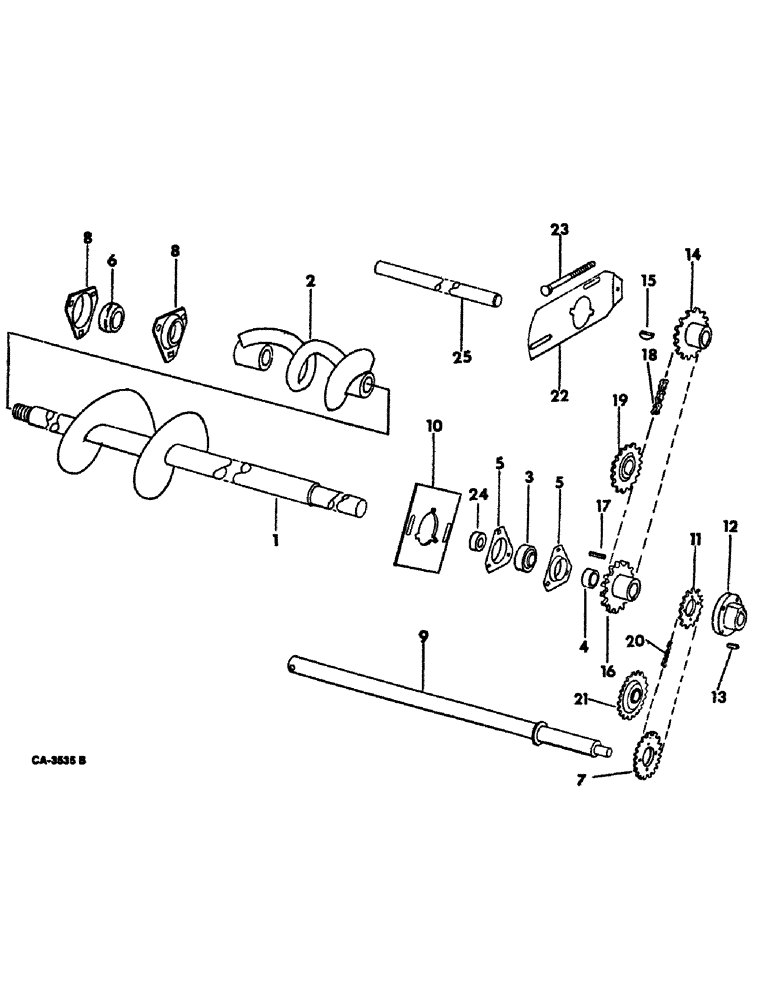

Запчасти Case IH 815 (26-11) - GRAIN TANK, GRAIN TANK LEVELING, GRAIN AND CORN Grain Tank
№
Артикул
Название
Примечание
Количество
1
160814C92
AUGER
ASSY, grain tank leveling
1шт.
20704R1
WASHER
1.031 x 1.500 x .105
4шт.
2
162103C91
AUGER
ASSY, grain tank leveling extension
2шт.
102604
SET SCREW,Hex Skt, 7/16" - 14 x 1/2"
4шт.
3
160796C91
BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W
BEARING, grain tank leveling auger
2шт.
4
564853R11
COLLAR
w/SET SCREW, grain tank
2шт.
5
571424R1
FLANGE
grain tank leveling auger brg
2шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 znd sq-nk crg
1шт.
120376
NUT,5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
6
196300C1
SPHERICAL BEARING,1.006" ID x 2.04" OD x 1.18"
HOUSING w/BRG, leveling auger LH
1шт.
7
SPROCKET, elevator drive slip clutch 26-T, refer to group 25 under tailings elevator for unit listing
1шт.
8
571424R1
FLANGE
leveling auger LH
2шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 crg type 1
1шт.
120376
NUT,5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
9
SHAFT ASSY, elevator drive jack, refer to group 25 under grain elevator drive for unit listing
1шт.
10
169178C1
PLATE, grain tank leveling auger RH
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 sq-nk crg
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
120393
BEARING WASHER,5/16", SAE
WASHER, 11/32 x 11/16 x .051
2шт.
21789R1
WASHER
1-1/32 x 1-1/4 x 16 ga
2шт.
11
168149C1
SPROCKET
grain tank leveling auger driven 24-T
1шт.
18474R1
BOLT,Hex, 5/16" - 18 x 1", Gr 2
5/16 x 1 hex-hd mach
4шт.
120376
NUT,5/16"-18, G5
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
12
939279R1
HUB
grain tank leveling auger driven
1шт.
124824
NUT,Hex, 5/16" - 18
5/16 znd hex. jam
2шт.
102883
SET SCREW
5/16 x 3/4 sq-hd cup-pt set
2шт.
13
Q53
KEY,1/4" Sq x 1", Par
1шт.
14
167449C1
SPROCKET ASSY.
SPROCKET ASSY, grain elevator drive 16-T
1шт.
15
124553
WOODRUFF KEY,#15, 1/4" x 1", HT
1шт.
16
168687C1
DRIVE SPROCKET
SPROCKET ASSY, leveling auger driven 19T
1шт.
20340R1
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), 1/4" x 1 1/2"
1шт.
21789R1
WASHER
1-1/32 x 1-1/4 x 16 ga
2шт.
17
Q53
KEY,1/4" Sq x 1", Par
1шт.
18
CHAIN ASSY, grain elevator drive use 45 links from a 10 ft roll marked 1791D and 1 connecting link 1310D
1шт.
19
594706R91
SPROCKET ASSY.,15T
SPROCKET ASSY, leveling auger and elevator drive chain tightener 15-T
1шт.
18721R1
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 2
BOLT, 5/8 x 2-1/4 znd sq-nk crg
1шт.
124589
BALL STUD,Hex, 5/8" - 11 x 2", Gr 5
5/8 znd hex.
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
589068R1
WASHER
21/32 x 1-1/4 x 11 ga znd
3шт.
22858R1
SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole
21/32 sq x 1-1/4 x 12 ga znd
2шт.
608701R1
WASHER
.656 x 1.250 x .054
1шт.
20
CHAIN ASSY, grain tank leveling auger drive use 165 links from a 10 ft roll marked 1791D, 2 offset links 1315D, 1 roller link 1309D and 1 connecting link 1310D
1шт.
21
631905R91
SPROCKET
ASSY, grain tank leveling auger drive chain tightener 17-T
1шт.
18723R1
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 2
BOLT, 5/8 x 2-3/4 crg type 1
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
589068R1
WASHER
21/32 x 1-1/4 x 11 ga znd
4шт.
608701R1
WASHER
21/32 x 1-1/4 x 16 ga znd
1шт.
22
160428C11
SUPPORT
w/NUT, grain elevator drive extension shaft
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 sq-nk crg
1шт.
120376
NUT,5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
23
611421R1
BOLT,Hex, 7/16" - 14 x 3 1/2", Full Thd
elevator drive shaft tightener
1шт.
271501
SOCKET
NUT, 7/16 znd hex.
3шт.
24
152261C1
SPACER,1 1/4" Tube x 1 7/8"
grain tank leveling auger
1шт.
25
SHAFT, grain elevator drive extension, refer to group 25 under grain elevator drive for unit listing
1шт.
Выбрано товаров: 60
