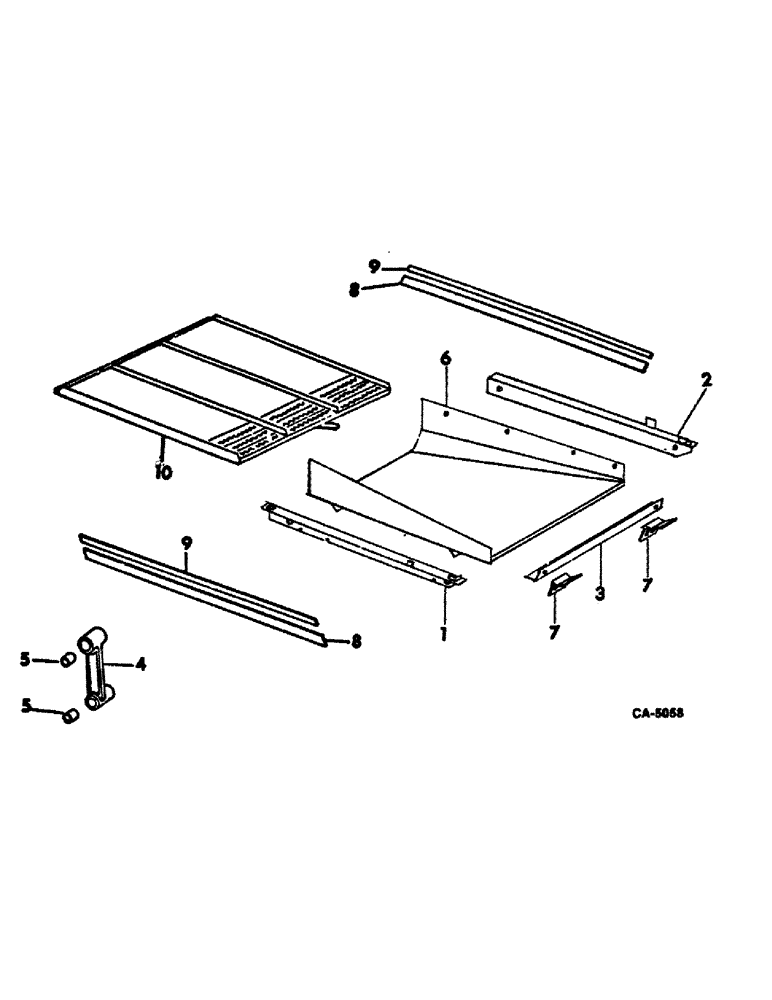

Запчасти Case IH 815 (23-05) - GRAIN PAN, SHOE AND SIEVE, SHOE AND SHOE SIEVE Grain Pan, Shoe & Shoe Sieve

1

175143C1

SUPPORT

ASSY, shoe side LH

1шт.

2

175144C1

SUPPORT

ASSY, shoe side RH

1шт.

3

175148C1

ANGLE

shoe front

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

175160C91

LEVER

ARM w/BUSHING, shoe hanger front, includes ref. no. 5

1шт.

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

5/8 x 4-1/2 hex-hd type B

2шт.

19544R1

BOLT,Hex, 5/8"-11 x 3 1/4", G2

5/8 x 3-1/4 hex-hd mach

2шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

4шт.

169256R1

WASHER, shoe hanger arm bushing

10шт.

5

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

ASSY, shoe hanger arm

4шт.

6

175150C1

BOTTOM ASSY, shoe

1шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 hex-hd mach

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

7

172868C1

CLIP

front shoe support

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

8

175181C1

SEAL

shoe sieve

2шт.

9

175182C1

BAR

shoe sieve seal

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

16шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

16шт.

10

196372C1

SIEVE

ASSY, shoe

1шт.

10

172876C1

SIEVE, 7/32 round hole shoe, parts accessory

1шт.

10

172873C1

SIEVE, 1/10 round hole shoe, parts accessory

1шт.

10

172878C1

SIEVE, 3/8 round hole, parts accessory

1шт.

10

172880C1

SIEVE, 1/2 round hole, parts accessory

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
