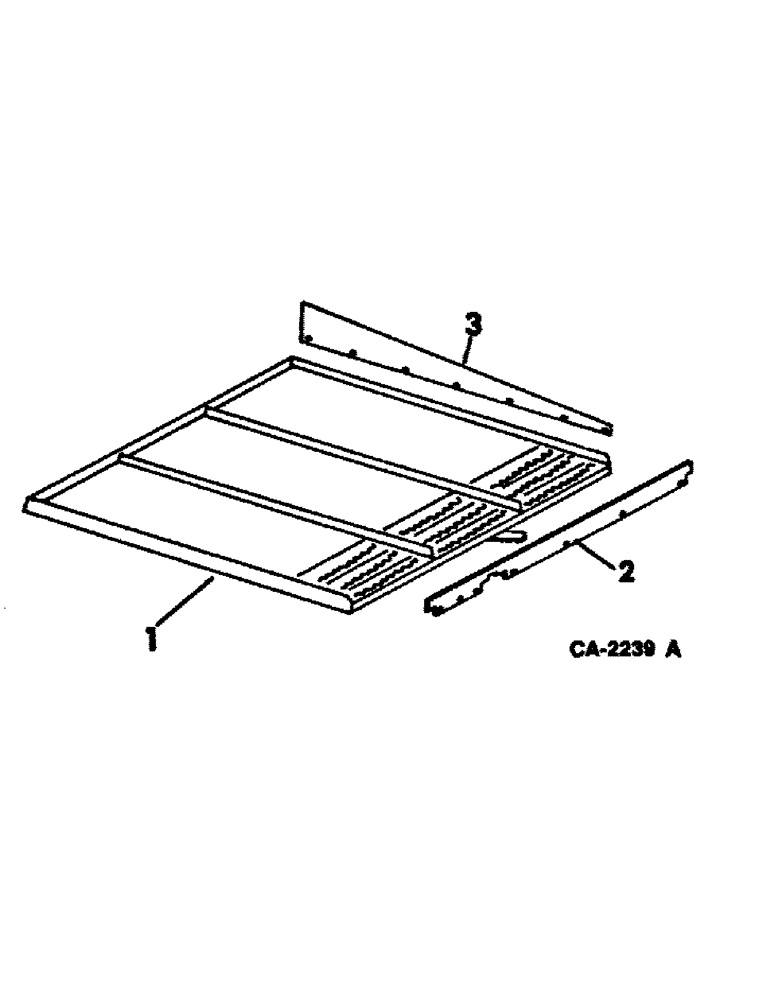

Запчасти Case IH 815 (23-04) - GRAIN PAN, SHOE AND SIEVE, CHAFFER SIEVE Grain Pan, Shoe & Shoe Sieve

1

172869C1

SIEVE

ASSY, chaffer, 1-1/8 adjustable, grain and rice

1шт.

1

172835C1

GRAIN SIEVE

SIEVE ASSY, chaffer, 1-5/8 adjustable, corn and bean

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

175058C1

SEAL, chaffer

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

7шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 type 1

7шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

7шт.

3

175190C1

DIVIDER

chaffer sieve

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

14шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 pan-hd

14шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

14шт.
