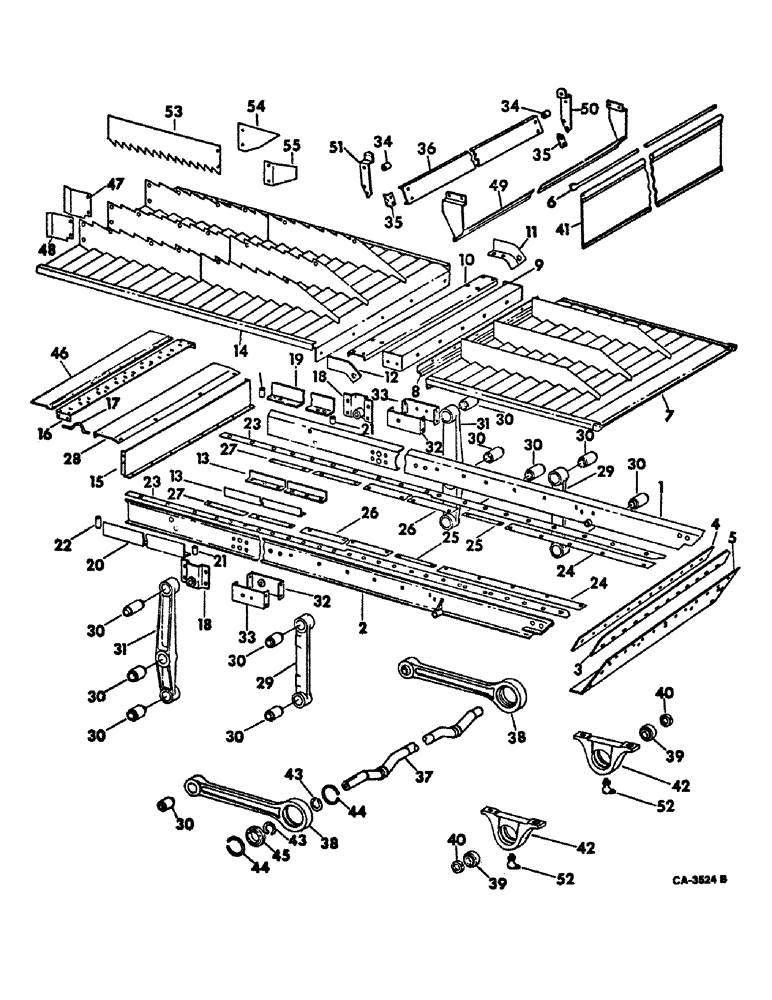

Запчасти Case IH 815 (23-01) - GRAIN PAN, SHOE AND SIEVE, GRAIN PAN AND SHAKER SHAFT Grain Pan, Shoe & Shoe Sieve

1

175060C1

RAIL

ASSY, grain pan LH side

1шт.

2

175061C1

RAIL

ASSY, grain pan RH side

1шт.

3

158068C1

SEAL

grain pan frt

1шт.

4

158070C1

BAR, grain pan frt seal

1шт.

NLS

NO LONGER SERVICED

1/4 PHC spring

12шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 znp pan-hd mach

12шт.

5

175066C1

SUPPORT, grain pan frt

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga znd

2шт.

6

157176C1

ROD

grain pan check flap

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

7

175069C1

DOOR

ASSY, grain pan bottom, solid

1шт.

7

175076C1

DOOR ASSY, grain pan bottom, perforated, parts accessory

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

8

175094C1

RETAINER, grain pan bottom door

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9

175096C1

SUPPORT ASSY, grain pan cross

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

172800C1

CHANNEL, grain pan support

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

11

172793C1

ANGLE

grain pan pivot LH

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga znd

2шт.

12

172794C1

ANGLE

pan pivot RH

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 a znd

2шт.

13

175101C1

ANGLE, grain pan bottom support

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

12шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

14

175102C1

BOTTOM

ASSY, grain pan

1шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 C-Z pan-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

15

175109C1

SUPPORT, grain pan finger frt

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mahc

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

16

175112C1

SUPPORT, grain pan finger

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

17

175114C1

FINGER,Formed, 1 Prong, 264mm L

grain pan

10шт.

18

172789C1

PIVOT

ASSY, grain pan rear

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

19

175116C1

SUPPORT

chaffer sieve LH

1шт.

20

175117C1

SUPPORT

chaffer sieve RH

1шт.

21

493933R1

SPACER,5/8" Tube x 1 7/16"

chaffer sieve support front

2шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4 type 5

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga

2шт.

22

154397C1

SPACER,5/8" Tube x 1 1/4"

chaffer sieve support rear

2шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4 type 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

469668R1

WASHER

.406 x .734 x .056

2шт.

23

175125C1

SEAL

grain pan side rail seal

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 znd hex-hd tap washer faced

54шт.

24

175126C1

BAR

grain pan side rail seal frt

2шт.

25

175127R1

BAR, grain pan side rail seal front center

2шт.

26

175128C1

BAR, grain pan side rail seal rear center

2шт.

27

175129C1

BAR, grain pan side rail seal rear

2шт.

28

172810C1

SEAL, grain, Serial Range: pan-plenum

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

29

175131C91

ARM ASSY.

ARM ASSY, grain pan frt hanger

2шт.

223517

BOLT,Hex, 5/8" - 11 x 3", Gr 8

5/8 x 3 znd hex-hd type 8

2шт.

366866C1

LOCK WASHER,5/8"

5/8"

2шт.

169256C1

DISC

WASHER, .641 x 1.25 x .125 C-Z

2шт.

25390R1

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 8

5/8 x 6-1/2 znd hex-hd type 8

2шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

169256C1

DISC

WASHER, .641 x 1.25 x .125 C-Z

2шт.

30

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

grain pan frt hanger arm

4шт.

31

175133C91

LEVER

ASSY, grain pan & shoe, includes ref. no. 30

2шт.

18827R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 2

5/8 x 3-1/2 type 1

2шт.

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

5/8 x 4-1/2 znd hex-hd type 8

2шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

6шт.

169256C1

DISC

WASHER, .641 x 1.25 x .125 C-Z

10шт.

32

175135C1

SUPPORT

ASSY, grain pan pivot in

2шт.

33

175139C1

SUPPORT

grain pan pivot outer

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 znd sq-nk crg type 5

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

34

14956L

SPACER, rear deflector support

2шт.

19023R1

CARRIAGE BOLT,#3, 3/8" - 16 x 2", Gr 2

BOLT, 3/8 x 2 no. 3 plow

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

35

175122C1

DEFLECTOR

ANGLE, grain pan rear deflector

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg lkg

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

36

175124C1

DEFLECTOR

grain pan rear

1шт.

37

568477R1

SHAFT, shaker, serial no. 19000 and below

1шт.

37

196278C1

SHAFT, shaker, serial no. 19001 and above

1шт.

38

177447C91

PITMAN

w/BUSHING SHAKER SHAFT, includes ref. no. 30

2шт.

39

670373R91

BALL BEARING,1.1255" ID x 62 mm OD x 1.4375"

shaker shaft

2шт.

40

557115R11

COLLAR

COLLAR w/SET SCREW, shaker shaft brg lkg

2шт.

41

569109R21

CANVAS

FLAP ASSY, grain pan check

1шт.

42

177449C91

BEARING ASSY

shaker shaft pillow block, includes ref. nos. 39 and 40

2шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 type 1

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

495-11053

WASHER,1/2", SAE

.531 x 1.062 x . 074

4шт.

43

359894R1

RING, SNAP

RING, shaker shaft pitman brg external snap

4шт.

44

UA20551

RING

shaker shaft pitman brg internal snap

4шт.

45

554553R91

BALL BEARING,45mm ID x 75mm OD x 16mm W

shaker shaft pitman

2шт.

46

172817C1

COVER, grain pan finger, parts accessory

1шт.

47

174188C1

SHIELD, chaffer divider LH

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/2 C-Z flange whiz lock

3шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

3шт.

48

175189C1

SHIELD, chaffer divider RH

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange whiz lock

3шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

3шт.

49

172823C1

BAFFLE ASSY, chaffer sieve

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

50

175118C1

SUPPORT

ASSY, grain pan rear deflector LH

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

51

175119C1

SUPPORT ASSY.

SUPPORT ASSY, grain pan rear deflector RH

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

52

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 90 deg elbow

2шт.

53

175193C1

RISER ASSY

2шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10 x 1/2 znp p/hds mach

8шт.

120361

NUT,Hex Mach Screw, #10 - 24

8шт.

120317

SCREW

NUT, 3/8-16 hex.

8шт.

54

175187C1

DEFLECTOR, rubber

2шт.

55

175186C1

DEFLECTOR

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 znp p/hds mach

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

180593C92

KIT

PARTS ACCESSORY, side hill parts, chaffer divider grain pan deflectors, consists of item no. 47, 48, 53, 54 & 55 of this unit, and item no. 3 of chaffer sieve unit

1шт.

180690C91

PARTS ACCESSORY, side hill parts grain pan deflectors, consists of items no. 53, 54 & 55 of this unit

1шт.
