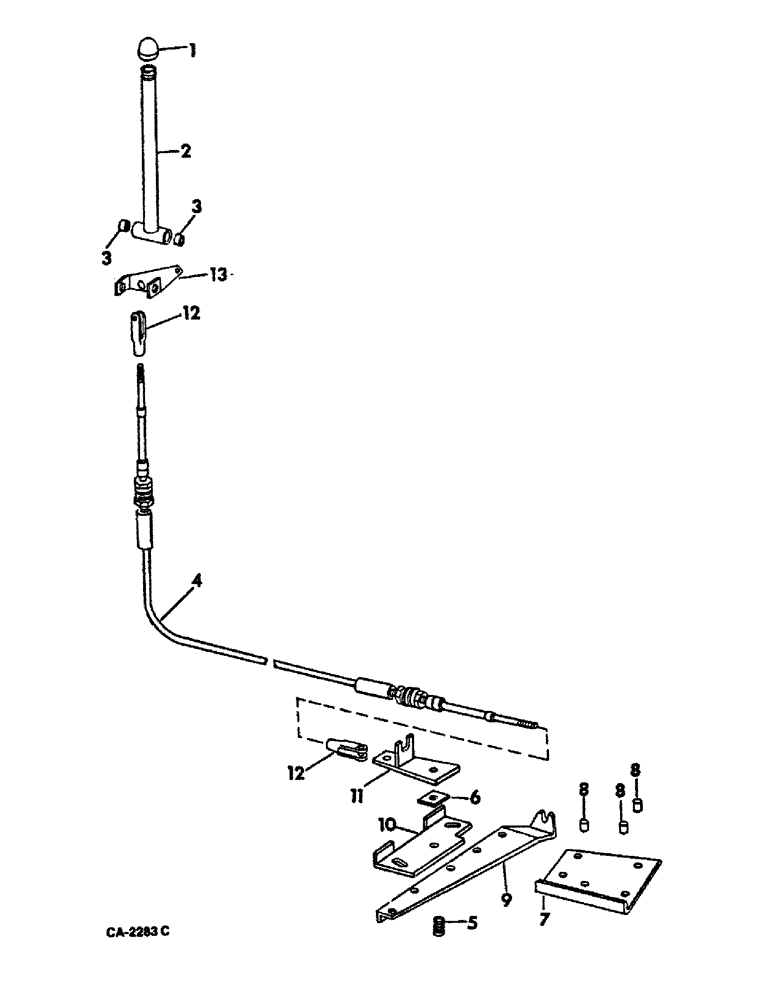

Запчасти Case IH 815 (07-18) - DRIVE TRAIN, PROPULSION CONTROL Drive Train

1

175815C1

KNOB

ground speed control lever

1шт.

2

174776C91

LEVER

ASSY, ground speed control, includes ref. no. 3

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

3

165685C1

BUSHING

control lever pivot

2шт.

4

165507C91

CABLE

ASSY, pump control, 158 in.

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

2шт.

5

28395H

SPRING

pump control compression

1шт.

6

150627C1

FRICTION WASHER

pump control friction

1шт.

7

165515C1

BRACKET, pump control upper, for sundstrand drive

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

7

187985C1

BRACKET, pump control upper, for eaton drive

1шт.

180157

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

7/16 x 2-1/2 type 5

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

7/16 x 2-3/4 type 5

1шт.

8

493933R1

SPACER,5/8" Tube x 1 7/16"

pump control bracket, for sundstrand drive

3шт.

8

358285R1

SPACER,3/8" Pipe x 1 3/8"

pump control bracket, for eaton drive

3шт.

9

172234C1

BRACKET, pump control lower

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

172235C1

STOP, pump control

1шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 C-Z hex hd mach

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

2шт.

11

165508C91

ARM ASSY, pump control

1шт.

18802R1

SCREW,Hex, 7/16"-14 x 3", G8

BOLT, 7/16 x 3 znd hex-hd mach

1шт.

607891R1

WASHER

.469 x 1.000 x .054

1шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16 torque metal insert lock

1шт.

12

144242

CLEVIS

5/16-24 C-Z adj rod end

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN, 5/16 x 31/32 C-Z rod end-hard

2шт.

13

174780C1

PIVOT ASSY, ground speed control

1шт.

137135

PIN, 1/8 x 1 cotter

1шт.

19876R1

PIN

1/2 x 3-7/8 rod end

1шт.
