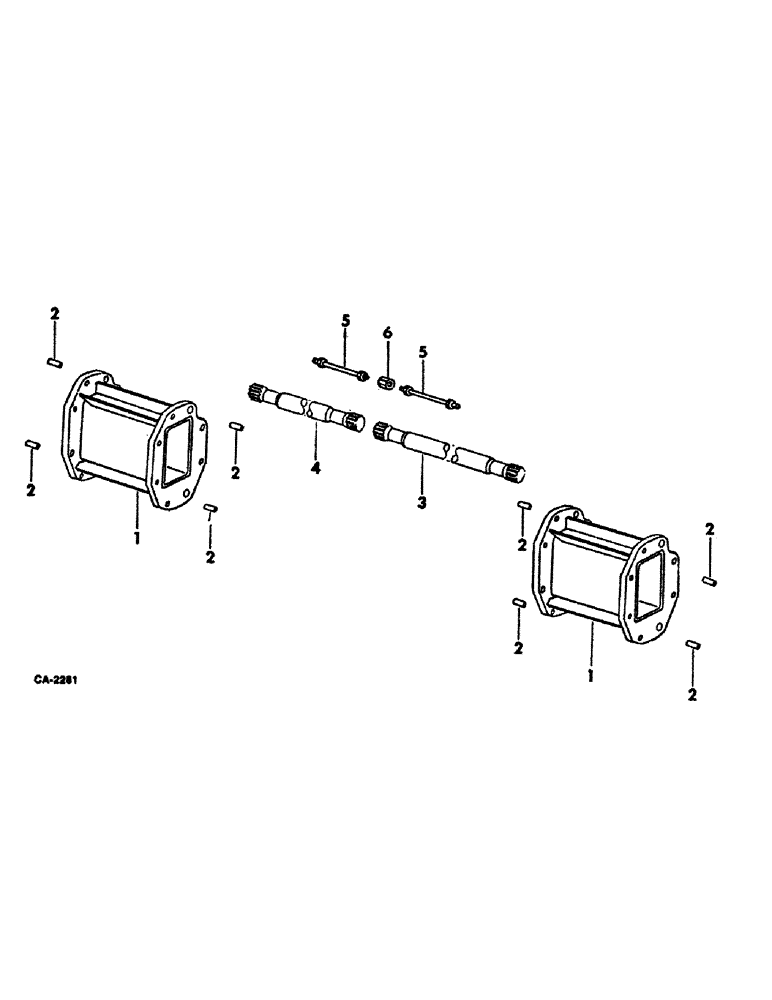

Запчасти Case IH 815 (07-10) - DRIVE TRAIN, MAIN WHEEL EXTENSION, 120 INCH TREAD Drive Train

1

177340C1

EXTENSION

ASSY, main axle

2шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

5/8 x 2-1/4 hex-hd type 8

12шт.

20199R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

5/8 x 2-1/2 hex-hd type 8

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 hex type 8

16шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

21/32 x 1-1/2 x 16 ga hard

8шт.

131165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

2

177337C1

SPACER

DOWEL, axle extension end plate

4шт.

3

173166C1

SHAFT, LH axle drive

1шт.

4

177344C1

SHAFT, RH axle drive

1шт.

5

TUBE ASSY, brake extension, use 7 in. of 1/4 OD steel tubing from 25-ft roll marked 990094C1 and 2 nuts 137397

2шт.

6

442336

SUPPORT TUBE

UNION, 1/4 inverted flare plain

2шт.
