(07-02) - DRIVE TRAIN, FINAL DRIVE, SERIAL NO. 12754 AND BELOW

Запчасти Case IH 815 (07-02) - DRIVE TRAIN, FINAL DRIVE, SERIAL NO. 12754 AND BELOW Drive Train

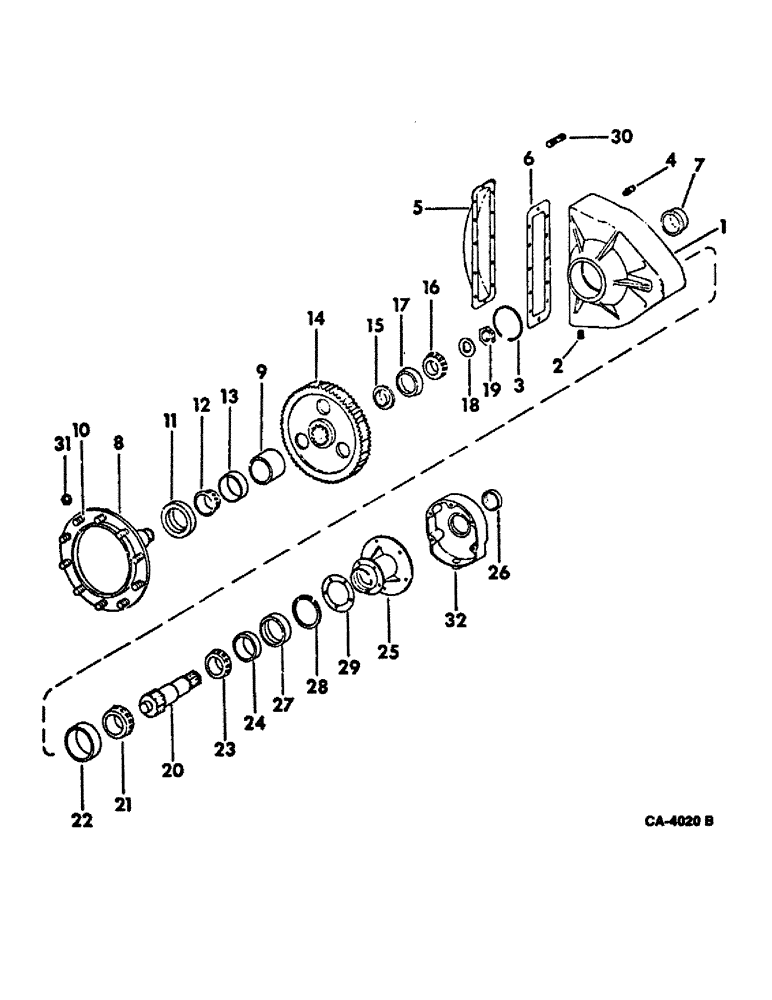

Схема запчастей Case IH 815 - (07-02) - DRIVE TRAIN, FINAL DRIVE, SERIAL NO. 12754 AND BELOW Drive Train
16
29
7
20
26
27
15
18
28
9
23
12
22
31
24
25
3
11
1
17
10
2
30
32
21
4
6
14
8
19
5
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

63436C92

PARTS ACCESSORY, final drive assy LH, consists of ref. nos. 1 thru 30, 32, 34, 35, 41, 42 under this group final drive serial no. 12755 and above and ref. no. 24 & 44 under group 10 wheel and parking brakes

1шт.

63437C92

PACKAGE

PARTS ACCESSORY, final drive assy RH, consists of ref. nos. 1 thru 30, 32, 34, 35, 41, 42 under this group final drive serial no. 12755 and above and ref. no. 24 & 44 under group 10 wheel and parking brakes

1шт.

1

HOUSING, final drive LH, order 63436C92 parts accessory

1шт.

1

HOUSING, final drive RH, order 63437C92 parts accessory

1шт.

2

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG, 3/4-14 auto. sq-hd pipe

2шт.

3

404157R1

RING, retaining

2шт.

4

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

ASSY, oil

2шт.

5

587078R91

PAN ASSY.

PAN ASSY

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

24шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

24шт.

6

587655R1

GASKET

pan

2шт.

7

404158R1

CAP

final drive shaft inner brg

2шт.

8

544220R2

SHAFT, final drive

2шт.

9

402855R1

BUSHING

shaft outer

2шт.

10

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

wheel

20шт.

11

402856R91

PACKING RING

SEAL, outer bearing cage oil

2шт.

12

ST799

CONE

BEARING ASSY, outer cone

2шт.

13

13273D

BEARING, CUP,2.8755" ID x 5.001" OD x 1.452"

BEARING ASSY, outer cup

2шт.

14

402859R1

GEAR, final drive

2шт.

15

404349R1

SPACER, gear inner

2шт.

16

85971H

BEARING

ASSY, inner cone

2шт.

17

304660C1

BEARING, CUP

BEARING ASSY, inner cup

2шт.

18

404076R1

WASHER

final drive shaft

2шт.

19

528935R1

NUT

final drive shaft

2шт.

103391

COTTER PIN,1/8" x 2 1/2"

Pin, Split (Cotter), 1/8" x 2 1/2"

2шт.

20

395675R1

SHAFT

pinion

2шт.

21

56934D

ROLLER BEARING,2.1663" ID x 3.8125" OD x 0.8268"

ASSY, cone

2шт.

22

105497H

BEARING CUP,96.85mm OD x 15.77mm W

BEARING ASSY, cup

2шт.

23

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

BEARING ASSY, cone

2шт.

24

50213V

BEARING CUP

BEARING ASSY, cup

2шт.

25

60002C91

ADAPTER

ASSY, brake LH

1шт.

25

60004C91

ADAPTER

ASSY, brake RH

1шт.

376814R1

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5, W/ Nylon Pellet

SCREW w/NYLON PELLET, 7/16-14 x 1-1/8 hex-hd cap

10шт.

25545R1

WASHER

.469 x .922 x .134 hardened

10шт.

26

380637R91

SEAL,44.45mm ID x 66.72mm OD x 5.08mm Thk

brake housing dirt

2шт.

27

380186R92

OIL SEAL

brake adapter oil

10шт.

28

610411C1

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

3-1/2 x 3-3/4 x 1/8

2шт.

29

376467R1

SHIM

brake housing adapter .007

1шт.

29

405627R1

SHIM

brake housing adapter .003

1шт.

30

441553R1

STUD

5/8-11 x 2-3/4 long

12шт.

31

69500D

SPECIAL NUT

NUT, 3/4-16 wheel bolt

20шт.

32

BRAKE HOUSING AND ASSY, refer to group 7 under wheel brake and parking brake for service parts listing

1шт.
