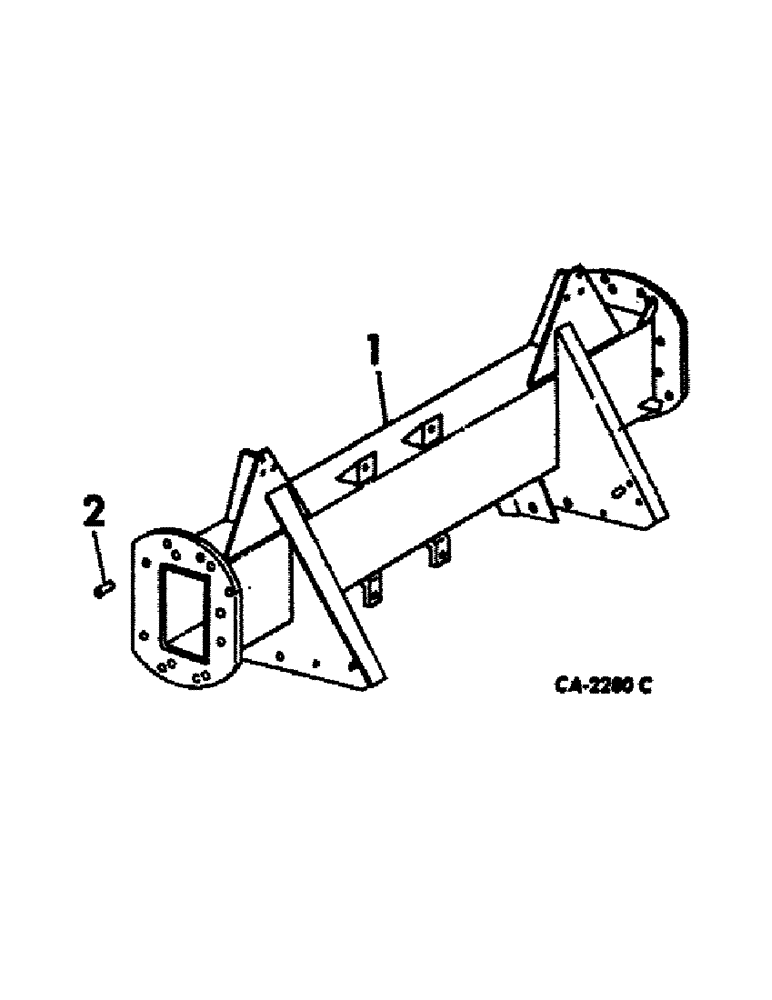

Запчасти Case IH 815 (07-01) - DRIVE TRAIN, MAIN AXLE Drive Train

1

177287C1

AXLE, main

1шт.

NLS

NO LONGER SERVICED

5/8 x 1-1/2 hex-hd

1шт.

131165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

1/2 x 1-1/2 type 8

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

.656 x 1.500 x .188 PHC hdn

1шт.

21434R1

NUT,5/8"-11, G8

5/8 type 8

1шт.

2

177337C1

SPACER

DOWEL, main axle end plate

1шт.
