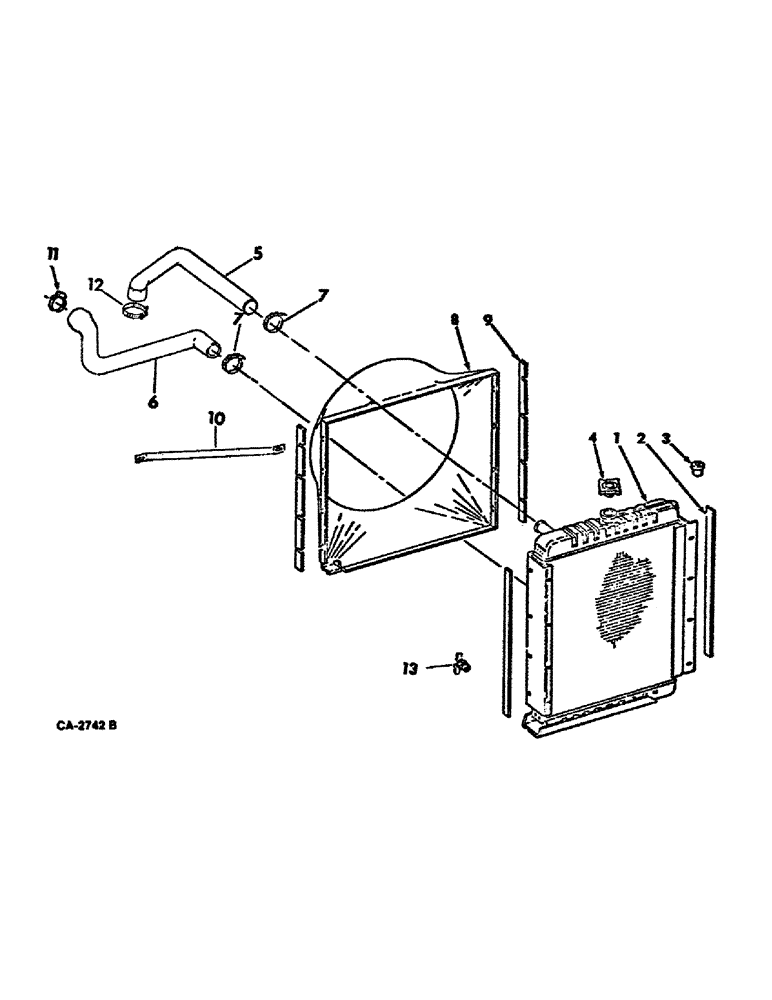

Запчасти Case IH 815 (06-02) - COOLING, RADIATOR AND CONNECTIONS, COMBINE W/DIESEL ENGINE Cooling

1

400734R3

RADIATOR

ASSY, less pressure cap, standard

1шт.

1

55650C2

NO LONGER SERVICED

RADIATOR ASSY, less pressure cap, for combine w/extreme chaff conditions

1шт.

2

400143R1

GASKET

radiator baffle

2шт.

3

400159R1

BUMPER

MOUNT, radiator vibration

2шт.

18698R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 2

BOLT, 7/16-14 x 2 C-Z short sq-nk crg

2шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

2шт.

20609R1

WASHER

15/32 x 3/4 x 11 ga C-Z

2шт.

4

530874R1

CAP

radiator pressure

1шт.

5

548216R1

RADIATOR HOSE,50.80 mm ID, 57.15 mm ID x 371.60 mm, SAE 20R4, GRADE 1A

Inlet Upper 50.80 mm ID, 57.15 mm ID x 371.60 mm, SAE 20R4, GRADE 1A

1шт.

6

548114R1

RADIATOR HOSE,66.00 mm ID x 584.20 mm, SAE 20R4, CLASS R, GRADE 1A

Outlet 66.00 mm ID x 584.20 mm, SAE 20R4, CLASS R, GRADE 1A

1шт.

7

39205H

CLAMP

radiator outlet

2шт.

8

400134R1

SHROUD

fan

1шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 znd hex-hd tap

6шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

9

(Not used in this application)

1шт.

10

59644C1

BRACE, radiator

2шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

39219H

CLAMP

radiator outlet

2шт.

12

995224R1

CLAMP

radiator hose engine end

1шт.

13

86982771

VALVE

COCK, radiator drain

1шт.
