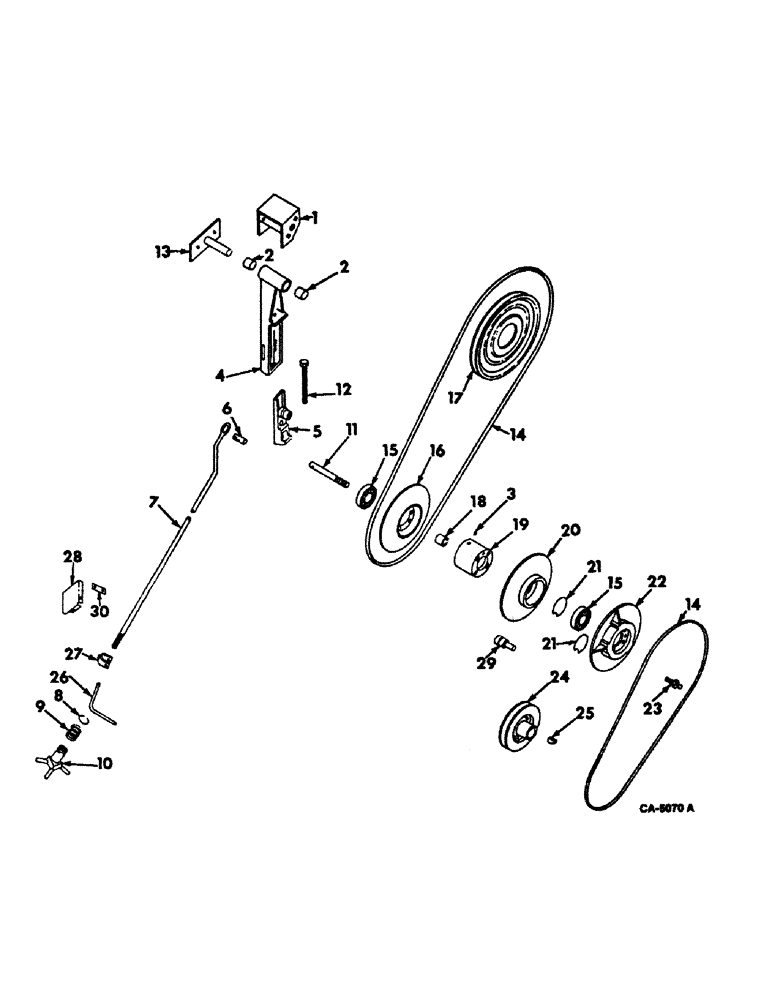

Запчасти Case IH 815 (24-04) - CLEANING FAN, SEPARATOR FAN DRIVE (15) - CLEANING

1

164975C91

SUPPORT ASSY, fan drive idler arm

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

3шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

3шт.

2

556448R1

BUSHING,19.07mm ID x 22.23mm OD x 25.4mm L

fan drive tightener lever

2шт.

3

617077R1

WICK

fan jackshaft pulley hub grease

2шт.

4

160524C11

LEVER w/BUSHING, tightener upper, includes ref. no. 2

1шт.

5

160525C1

LEVER

ARM, fan drive tightener lower, serial no. 19001 and above

1шт.

5

177470C1

ARM, fan drive tightener lower, serial no. 19000 and below

1шт.

168930C1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

BOLT, 7/16 x 1-1/2 sq-nk crg

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 hex.

2шт.

19795R1

PIN,1/4" x 1 3/4", Coiled

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

893862R1

WASHER

15/32 x 1-1/4 x 11 ga

2шт.

6

165013C1

PIN, fan drive control rod support

1шт.

7

170360C1

ROD

fan speed control

1шт.

104248

RIVET, 1/4 x 3/8 pln f/hd sol

1шт.

8

454417R1

SNAP RING,#100, Ext

Ring, Snap, , fan drive pulley handle #100, Ext

1шт.

9

12209D

SPRING

fan pulley adj. handle

1шт.

10

169705C1

HANDLE

fan pulley adj

1шт.

11

160526C1

STUD

JACKSHAFT, fan pulley, serial no. 19001 and above

1шт.

426099

NUT,3/4"-16, G5

3/4-16 NF hex.

1шт.

19795R1

PIN,1/4" x 1 3/4", Coiled

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

178375

WASHER, 25/32 x 1-1/4 x 16 ga

1шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

1шт.

12

662904R1

BOLT,Adj, 5 1/2"

fan drive arm adj

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

607895R1

WASHER

17/32 x 1 x 11 ga

2шт.

13

162487C91

SUPPORT

ASSY, fan drive idler arm

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

14

164999C92

SET OF BELTS

Pair of fan drive

1шт.

15

586156R92

BEARING, ROLLER, CYL,0.7505" ID x 47 mm OD x 0.8437, 0.53125"

BEARING ASSY, fan jackshaft pulley ball

1шт.

16

174975C1

PULLEY

fan jackshaft inner half, 9.84 in OD, serial no. 19000 and below

1шт.

16

164223C1

PULLEY

fan jackshaft inner half, 9.84 OD, serial no. 19001 and above

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1 hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

591715R1

WASHER

1.031 x 1.500 x .054

4шт.

17

160310C11

ASSEMBLY

PULLEY ASSY, fan drive, 13.5 in OD

1шт.

104233

RIVET, 3/16 x 1/4 flat-hd 3/16" x 1/4"

30шт.

REF#17, sheet metal pulley is no longer available. Pulleys will be made out of bar stock/cast material, per ENG. release#FEC D2003. jfn 9/18/98

1шт.

18

168566C1

SPACER,1" Tube x 1 7/8"

fan pulley brg support stud

1шт.

19

166263C1

HUB

fan jackshaft pulley J

1шт.

REF#19 USE ABOVE SN#19001.MACHINES BELOW THAT SERIAL NUMBER USE 174978C1 8/29/96

1шт.

20

164221C1

PULLEY

fan jackshaft center, 9.84 OD, serial no. 19001 and above

1шт.

20

174976C1

PULLEY

fan jackshaft center, serial no. 19000 and below

1шт.

21

357323R1

RING, SNAP

RING, fan jackshaft center pulley snap, serial no. 19001 and above

2шт.

21

359306R1

RING

fan jackshaft center pulley snap, serial no. 19000 and below

2шт.

22

164222C1

PULLEY

fan jackshaft outer half, 9.84 in. OD, serial no. 19001 and above

1шт.

22

174975C1

PULLEY

fan jackshaft outer half, 9.84 in. OD, serial no. 19000 and below

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1 hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

23

126131

FITTING

1/4-28 straight lub

1шт.

24

160532C1

PULLEY

fan driven, 7.5 in. OD

1шт.

NLS

NO LONGER SERVICED

5/16 hex. jam

1шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW, 5/16 x 3/4 znp sq/hd c/pt set

1шт.

25

124554

O-RING

5/16 x 1 Woodruff hard

1шт.

26

167327C1

ROD

fan speed indicator, serial no. 23000 and below

1шт.

26

196377C1

ROD, fan speed indicator, serial no. 23001 and above

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

27

167325C11

CLAMP

ASSY, fan speed indicator, serial no. 23000 and below

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach

1шт.

28

167326C1

SUPPORT, fan speed indicator

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

29

533840R91

SHAFT

BEARING w/SHAFT ASSY, fan jackshaft pulley ball, serial no. 19000 and below

2шт.

30

559140R1

STRAP, fan speed indicator rod support

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 34 sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
