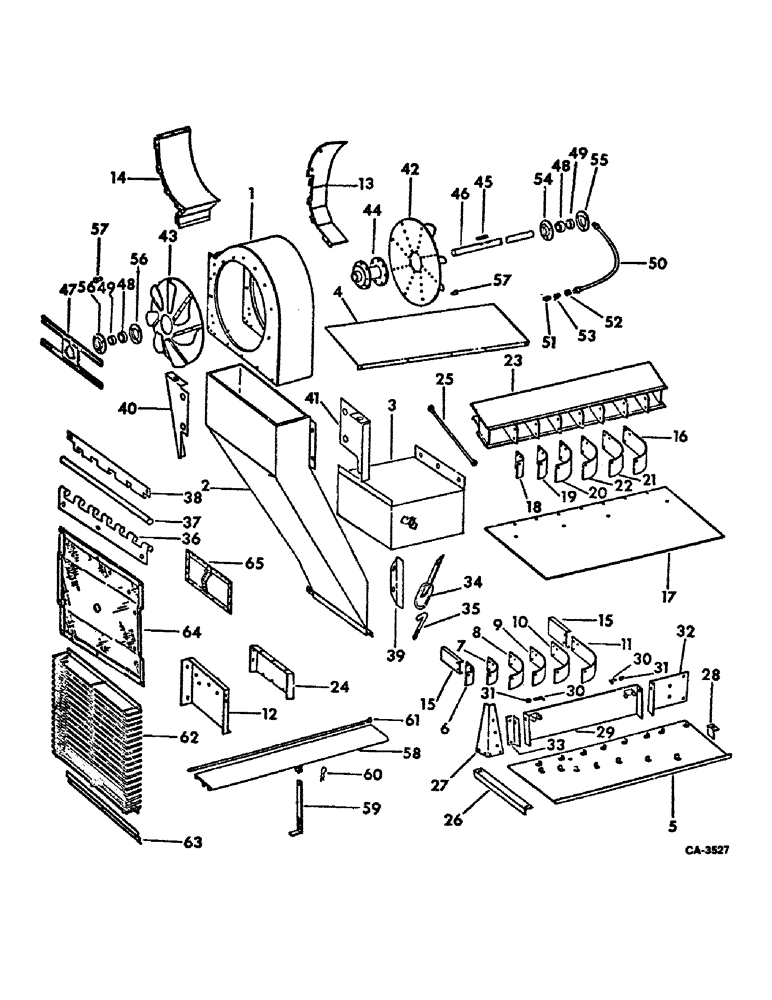

Запчасти Case IH 815 (24-01) - CLEANING FAN, FAN AND FAN AIR DUCT (15) - CLEANING

1

177235C1

HOUSING ASSY, fan

1шт.

2

177239C2

DUCT ASSY, fan center air

1шт.

2

177245C2

DUCT

ASSY, fan center air, for use w/air duct door

1шт.

3

177247C1

DUCT ASSY, fan air lower

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

4

160932C11

SIDE ASSY, plenum box trap

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

5

160933C11

SIDE ASSY, plenum box bottom

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

1шт.

6

165151C1

DEFLECTOR, plenum box

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

4шт.

7

165152C1

DEFLECTOR, plenum box

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

4шт.

8

165153C1

DEFLECTOR, plenum box

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

4шт.

9

165154C1

DEFLECTOR, plenum box

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

4шт.

10

165155C1

DEFLECTOR, plenum box

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

4шт.

11

165100C1

DEFLECTOR, plenum box left lower

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

4шт.

12

170884C1

SIDE, plenum box filler

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

4шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

163830C1

SHIELD, fan housing blade

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

2шт.

14

177246C2

HOUSING, fan lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

14шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

14шт.

15

165090C1

CHANNEL, lower

6шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

6шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

6шт.

16

165099C1

DEFLECTOR, top left

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

4шт.

17

165145C11

SHEET ASSY, plenum box center

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

4шт.

18

165146C1

DEFLECTOR, plenum box

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

4шт.

19

165147C1

DEFLECTOR, plenum box

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

4шт.

20

165148C1

DEFLECTOR, plenum box

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

4шт.

21

165149C1

DEFLECTOR, plenum box

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

4шт.

22

165150C1

DEFLECTOR, plenum box

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

4шт.

23

165163C92

DEFLECTOR ASSY, center

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

2шт.

24

170883C1

SHEET, air dust filler

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

5шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

5шт.

25

167992C1

BRACE, fan air duct

1шт.

18655R1

BOLT,Hex, 1/4"-20 x 1", G2

1/4 x 1 C-Z hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

26

167994C1

ANGLE, plenum box lower right side

1шт.

27

177259C1

SUPPORT, fan housing

1шт.

28

584995R1

ANGLE, plenum box upper LH front stop

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga C-Z

1шт.

29

170558C1

DOOR ASSY, plenum box front

1шт.

30

611044R1

AXLE PIN,6.35mm OD

PIN, locking

2шт.

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

2шт.

21784R1

WASHER

17/64 x 1/2 x 16 ga C-Z

2шт.

31

606245R1

SPRING

locking pin

2шт.

32

170561C1

SHEET, plenum box left front

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 C-Z sq-nk crg

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

33

170563C1

ANGLE, plenum front door

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

2шт.

34

177252C1

LEVER ASSY, air duct latch, 2 used grain and corn, 1 used edible bean

2шт.

34

196174C1

LEVER ASSY, air duct latch rear, 1 used edible bean

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

M92150

PIN

5/16 x 3/4 std-hd

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .34 x .69 x .06 znd

2шт.

35

177256C1

HOOK, air duct latch

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

36

177260C1

HINGE, air duct center outer

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

3шт.

37

177255C1

ROD, air duct center outer hinge

1шт.

38

177261C1

STRIP

air duct center inner hinge

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

3шт.

39

177257C1

ANGLE, air duct center seal

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

4шт.

40

177262C1

BRACKET, fan housing rear trim

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

3шт.

41

177258C1

SUPPORT, air duct pivot

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

3шт.

42

160170C91

FAN ASSY, left

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znp hex-hd mahc

8шт.

120376

NUT,5/16"-18, G5

8шт.

167426C1

RIVET, cleaning fan

32шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

43

160171C91

FAN

ASSY, right

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znp hex-hd mach

8шт.

120376

NUT,5/16"-18, G5

8шт.

167426C1

RIVET, cleaning fan

32шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

44

165047C1

HUB, fan

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 C-Z hex-hd cap

16шт.

107327

SET SCREW,Sq Hd, 5/16"-18 x 1"

SCREW, 5/16 x 1 C-Z cup-pt sq-hd set

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

NLS

NO LONGER SERVICED

5/16 C-Z hex jam

2шт.

45

23875R1

KEY,5/16" Sq x 6 1/2", Par

5/16 x 6.5 sq

1шт.

46

160831C1

SHAFT

fan

1шт.

47

161754C91

SUPPORT ASSY, fan shaft outer brg

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

4шт.

120376

NUT,5/16"-18, G5

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

48

473097R92

BEARING ASSY,1.2505" ID x 72 mm OD x 1"

BEARING, fan shaft

2шт.

49

455104R11

COLLAR

w/set screw fan shaft brg lkg

2шт.

50

168361C1

HOSE,0.14" ID x 19.00"

- Fan shaft in brg lub 0.14" ID x 19.00"

1шт.

51

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 45 deg lub

1шт.

52

581873R1

TUBE NUT,4.8 mm Length

fan shaft in brg lub hose

1шт.

53

21347H1

ADAPTER, 1/4-28 45 deg lub fitting

1шт.

54

489871R1

FLANGE

w/ADAPTER FITTING, fan shaft inner bearing

1шт.

55

473091R91

FLANGE

w/STR LUB FITTING, fan shaft outer brg

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

56

473092R1

FLANGED BEARING

fan shaft brg grooved

2шт.

57

167426C1

RIVET, cleaning fan

64шт.

58

165093C91

WINDBOARD ASSY, fan lower, fan wind deflector

1шт.

59

177469C1

WINDBOARD ASSY, fan lower, fan wind deflector

1шт.

M92150

PIN

5/16 x 3/4 STD hd

2шт.

60

585614R1

PIN

windboard adj bar qa cot., fan wind deflector

2шт.

61

157176C1

ROD

fan wind deflector, fan wind deflector

1шт.

62

177996C1

SCREEN ASSY, separator fan bar, separator bar screen

1шт.

63

167583C1

SUPPORT, separator fan bar screen, separator bar screen

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

3шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

3шт.

27313R1

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 5/8"

SCREW, 1/4 x 5/8 h/whd tap

2шт.

64

177991C1

SCREEN ASSY, separator fan, regular

1шт.

565093R1

SCREW

1/4 x 3/4 washer faced hex-hd

10шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga

10шт.

65

170314C91

DOOR

ASSY, fan air duct, parts accessory

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 hex-hd mach

4шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

12шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

12шт.
