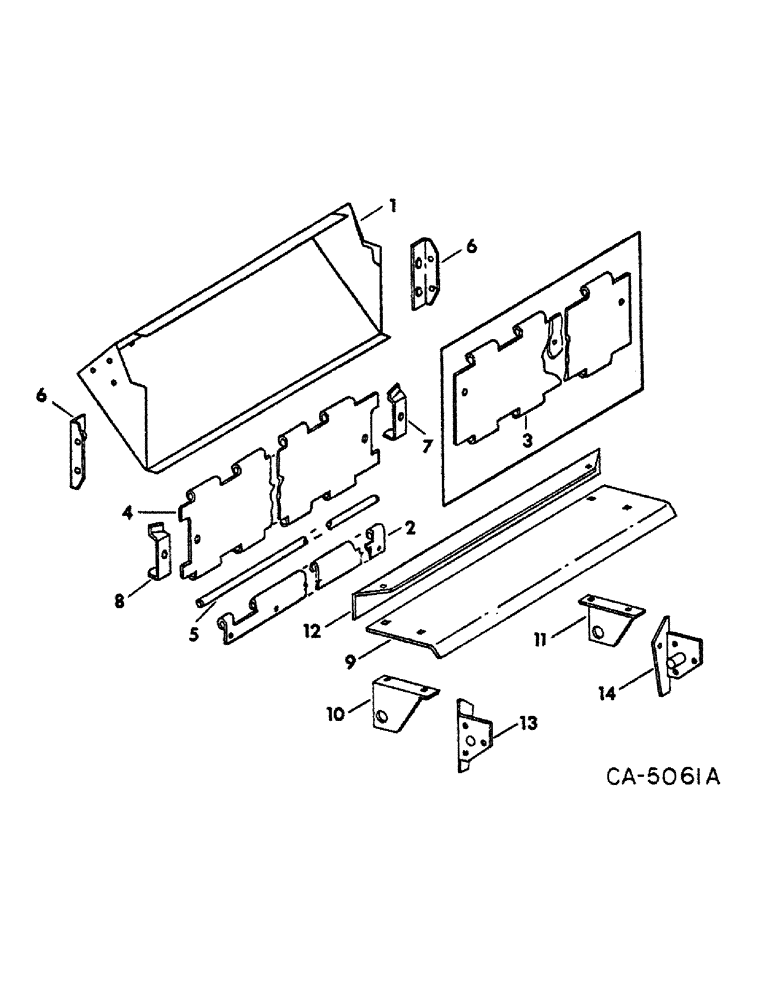

Запчасти Case IH 815 (21-18) - THRESHING CYLINDER AND CONCAVE, STONE RETARDER (14) - THRESHING

1

177704C1

RETARDER ASSY, stone, serial no. 19000 and below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

6шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 slt-truss-hd

6шт.

1

196252C1

RETARDER ASSY, stone, serial no. 19001 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

6шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 slt-truss-hd

1шт.

24497R1

WASHER

.34 x 1.25 x .12

1шт.

2

177702C1

HINGE

stone retarder lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

7шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

7шт.

3

196353C1

HINGE

stone retarder double, serial no. 19000 and below

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 hex-mach

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

4

196350C1

HINGE

stop retarder double, serial no. 19001 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

7шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

7шт.

5

175930C1

ROD

stone retarder hinge

1шт.

6

177698C1

ANGLE, hinge support, serial no. 19000 and below

2шт.

6

196255C1

ANGLE, hinge support, serial no. 19001 and above

2шт.

7

178741C1

LATCH, stone retarder hinge LH, serial no. 19001 and above

1шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 slt-truss-hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD prevailing torque hex.

1шт.

8

569362R2

LATCH, stone retarder hinge RH, serial no. 19001 and above

1шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 slt-truss-hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD prevailing torque hex.

1шт.

9

196338C1

SUPPORT, stone retarder cover, for use w/spike tooth cylinder, serial no. 19001 and above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange

4шт.

10

196339C1

SUPPORT, stone retarder cover pivot LH, for use w/spike tooth cylinder, serial no. 19001 and above

1шт.

11

196340C1

SUPPORT, stone retarder cover pivot RH, for use w/spike tooth cylinder, serial no. 19001 and above

1шт.

12

196342C1

ANGLE, stone retarder cover lap, serial no. 19001 and above, for use w/spike tooth cylinder

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

4шт.

13

196343C1

SUPPORT ASSY, stone retarder cover pivot LH, for use w/spike tooth cylinder, serial no. 19001 and above

1шт.

19352R1

BOLT, 3/8 x 1/2 hex-hd mach

1шт.

14

196344C1

SUPPORT ASSY, stone retarder cover pivot RH, serial no. 19001 and above

1шт.

19352R1

BOLT, 3/8 x 1/2 hex-hd mach

1шт.

161945R1

SCREW, 5/16 x 1 slt-truss-hd

1шт.
