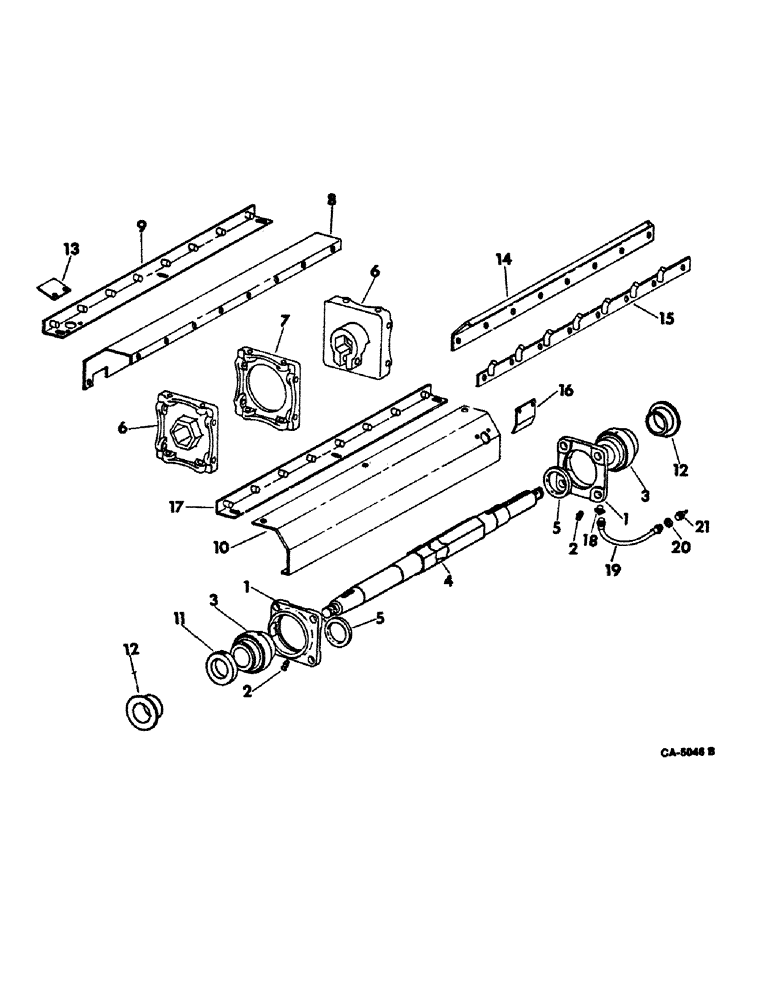

Запчасти Case IH 815 (21-16) - THRESHING CYLINDER AND CONCAVE, CYLINDER BEATER, W/COVER AND FINGERS (14) - THRESHING

1

172317C11

HOUSING

w/BRG CYLINDER BEATER, includes ref. no. 3

1шт.

2

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 45 deg lub

2шт.

3

172406C91

BEARING ASSY,55.56mm ID x 100mm OD x 25mm W

cylinder beater ball

2шт.

4

17986C21

SHAFT w/LOCK NUTS, cylinder beater

1шт.

20290R1

LOCK NUT,1"-14, G5

NUT, 1-1/4 NF hex lock

2шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-1/32 x 2-1/4 x 1/4

1шт.

U14294

WASHER

1-15/16 x 2-7/8 x 16 ga

5шт.

5

160236C1

BUSHING

SPACER, cylinder beater shaft inner

1шт.

6

174769C1

HUB

cylinder beater end

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

7

174770C1

HUB, cylinder beater center

1шт.

8

196016C1

SECTION, beater cover outer

1шт.

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

SCREW, 1/2 x 1-1/4 hex-hd flange

9шт.

9

196020C1

SECTION, ASSY, beater cover inner

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

10

196019C1

SECTION, beater cover outer

1шт.

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

SCREW, 1/2 x 1-1/4 hex-hd flange lock

3шт.

11

612023R11

COLLAR ASSY.

COLLAR w/SET SCREW, cyl beater shaft left brg

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 hex-soc-hd

1шт.

12

177299C1

RING

cylinder beater brg

2шт.

13

196014C1

COVER

hub bolt access hole

1шт.

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, 1/4 x 1/2 hex-hd cap

2шт.

14

196025C1

SUPPORT

BLADE, cylinder beater

4шт.

15

196022C1

BAR, ASSY, finger beater LH

2шт.

15

196023C1

BAR ASSY, finger beater RH

2шт.

16

196015C1

COVER, hub bolt access door

1шт.

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, 1/4 x 1/2 hex-hd cap

2шт.

17

196017C1

SECTION ASSY beater cover inner

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 hex-hd cap

1шт.

18

21450R1

ADAPTER,1/4"-1/8 NPTF

lub fitting

1шт.

19

937776R91

HOSE,0.14" ID x 14.00"

Lube, Cylinder Beater Shaft Right-Hand Bearing 0.14" ID x 14.00"

1шт.

20

581873R1

TUBE NUT,4.8 mm Length

cyl beater shaft RH bearing lub

1шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 28NS lub straight

1шт.
