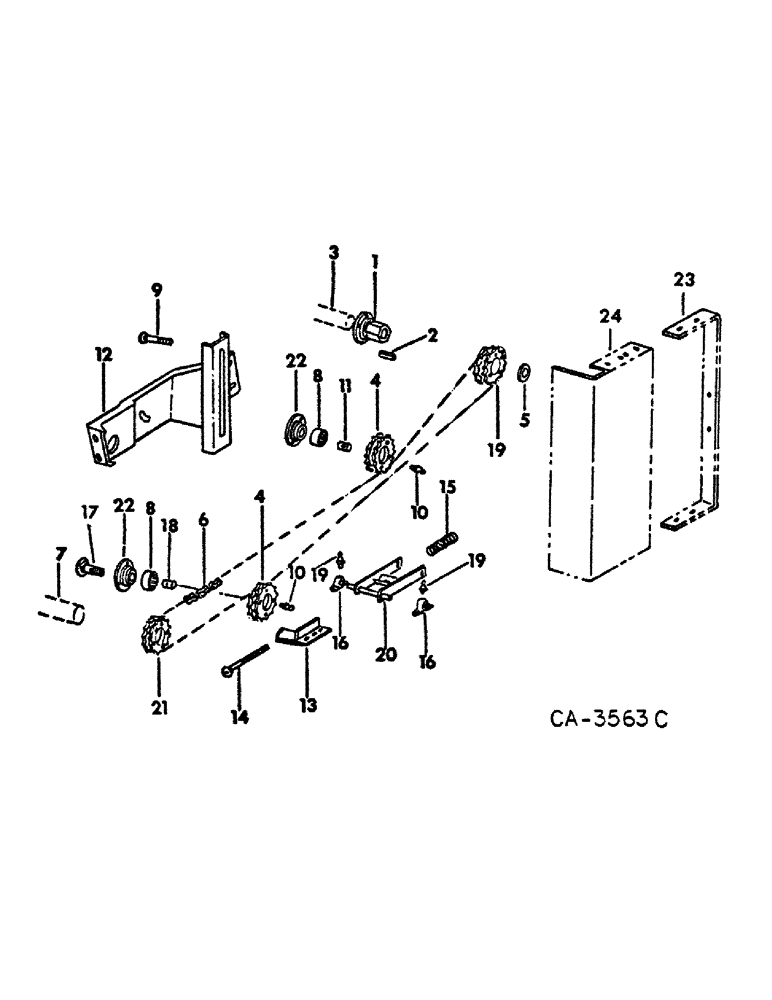

Запчасти Case IH 815 (21-11) - THRESHING CYLINDER AND CONCAVE, VARIABLE CYLINDER CHAIN DRIVE, BEAN (14) - THRESHING

1

160241C1

HUB

cylinder driven sprocket

1шт.

9418646

NUT,7/16"-14, G8

7/16 hex type 8

6шт.

23105R1

SCREW, 7/16 x 2-3/4 hex-hd cap type 4 Hex, 7/16"-14 x 2 3/4", G8

6шт.

366863R1

WASHER, 7/16 rib lock

6шт.

2

158416C1

KEY

3/8 x 4.2 sq parallel hard

1шт.

3

SHAFT, cylinder beater, refer to this group under cylinder beater and grate for unit listing

1шт.

4

158417C1

GEAR

SPROCKET, cyl drive tightener 22-T

2шт.

5

21763R1

WASHER

.469 x .750 x .105, 6 washers reqd to replace spacer .441 x .75 x .75 when 88-T sprocket 179105C1 is used

1шт.

6

CHAIN ASSY, cyl drive, use 129 links from 10-ft roll marked 1355D, three connecting links 569206R91 one offset two pitch link 570988R91 and one roller link 1316D

1шт.

6

CHAIN ASSY, cyl drive extension, used 5 connecting links 569206R91 and 3 two pitch combination offset links 570988R91

1шт.

7

SHAFT, variable pulley jack, refer to this group under variable cylinder drive belt and pulley for unit listing

1шт.

8

577006R91

NEEDLE BEARING,Needle, 22.2mm ID x 33.36mm OD x 38.1mm W

cylinder drive chain tightener and idler hub

2шт.

9

575280R1

BOLT (SPREADER)

BOLT, cylinder drive chain tightener hub

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

579331R1

WASHER

21/32 x 2 x 3/16 hard

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

2шт.

10

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

11

578607R1

SLEEVE CYLINDER

BUSHING, cyl chain tightener hub

1шт.

12

174170C1

BRACKET, variable cyl drive chain tightener

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

13

168159C1

ANGLE, variable cyl drive chain dampener drawbolt

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 hex-hd cap

2шт.

14

611988R2

BOLT, variable cyl drive chain dampener

1шт.

231-1448

NUT,1/2"-13, GB

1/2 lock

1шт.

21883R1

WASHER

17/32 x 1-3/4 x 11 ga

1шт.

15

PO3A

SPRING

variable cylinder drive chain dampener drawbolt

1шт.

16

165909C91

BUSHING

BEARING ASSY, variable cyl drive chain idler shaft

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

17

23601K

BOLT,5/8" - 11 x 4"

cylinder drive chain idler sprocket

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

3/8 hex.

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 3/8"

1шт.

21908R1

WASHER, 21/32 x 1-3/4 sq x 12 ga

2шт.

608081R1

WASHER

21/32 x 1-3/4 x 11 ga

1шт.

21212R1

WASHER

29/32 x 2 x 11 ga

4шт.

18

22847KA

BUSHING

variable cyl drive chain tightener sprocket bolt

1шт.

19

158418C1

DRIVE SPROCKET

SPROCKET, cylinder driven, 30T

1шт.

19

158419C1

SPROCKET ASSY.

SPROCKET, cylinder driven, 43-T

1шт.

19

158693C1

SPROCKET, cylinder driven, 65-T

1шт.

19

179105C1

SPROCKET, cylinder driven, 88-T

1шт.

20

168156C1

IDLER ASSY, variable cylinder drive chain

1шт.

21

174168C1

SPROCKET, cylinder drive split 48-T, for edible bean

1шт.

21

174167C1

SPROCKET, cylinder drive split 22-T, for edible bean

1шт.

21

180382C1

SPROCKET, cylinder drive split, 30-T

1шт.

22

158413C11

HUB

ASSY, cyl drive chain tightener and idler, includes ref. no. 8

1шт.

21901R1

BOLT,Hex, 7/16" - 14 x 2", Gr 8

7/16 x 2 hex-hd type 8

6шт.

366863R1

WASHER, 7/16 rib lock

6шт.

23

SUPPORT, cylinder drive shield, refer to this group under variable cylinder belt drive for unit listing

1шт.

24

SUPPORT, cylinder drive shield, refer to this group under variable cylinder belt drive for unit listing

1шт.
