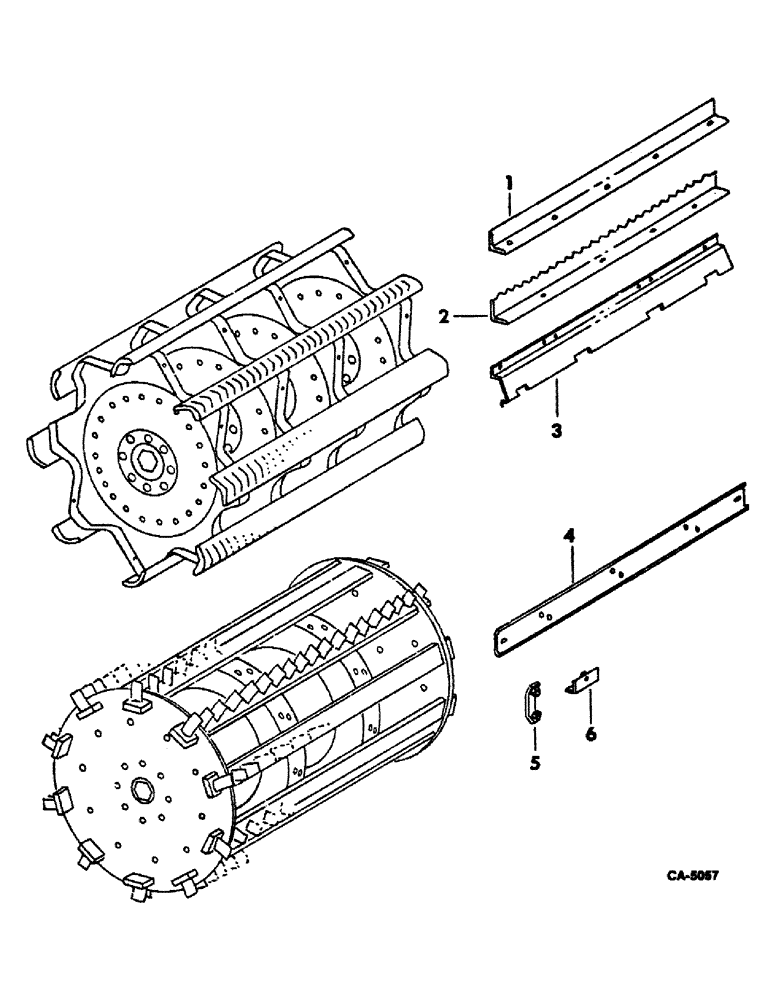

Запчасти Case IH 815 (21-06) - THRESHING CYLINDER AND CONCAVE, SPECIAL CYLINDER BARS (14) - THRESHING

1

177230C1

BAR, cylinder smooth, for spike tooth cylinder, includes ref. nos. 4, 5 and 6 parts accessory

1шт.

2

177228C1

BAR, cylinder notched, parts accessory, for rasp bar cylinder

1шт.

120369

NUT,3/8"-24, G5

4шт.

181637

SCREW, 3/8-24 x 1 hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

177226C1

BAR

cylinder filler, steel, for rasp bar cylinder

8шт.

120369

NUT,3/8"-24, G5

24шт.

NLS

NO LONGER SERVICED

SCREW, 3/8-24 x 1 hex-hd cap

32шт.

120369

NUT,3/8"-24, G5

4шт.

181637

3/8-NF x 1 type 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

4

164684C2

CHANNEL, cylinder filler LH

5шт.

4

164685C2

CHANNEL, cylinder filler RH, for spike tooth cylinder

5шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 hex-hd type 8

100шт.

366864C1

LOCK WASHER,1/2"

1/2"

100шт.

5

162006C11

RETAINER ASSY, filler bar, for spike tooth cylinder

40шт.

6

162007C11

ANGLE ASSY, cylinder filler channel support, for spike tooth cylinder

20шт.

151629R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

3/8 x 1 hex-hd type 8

40шт.
