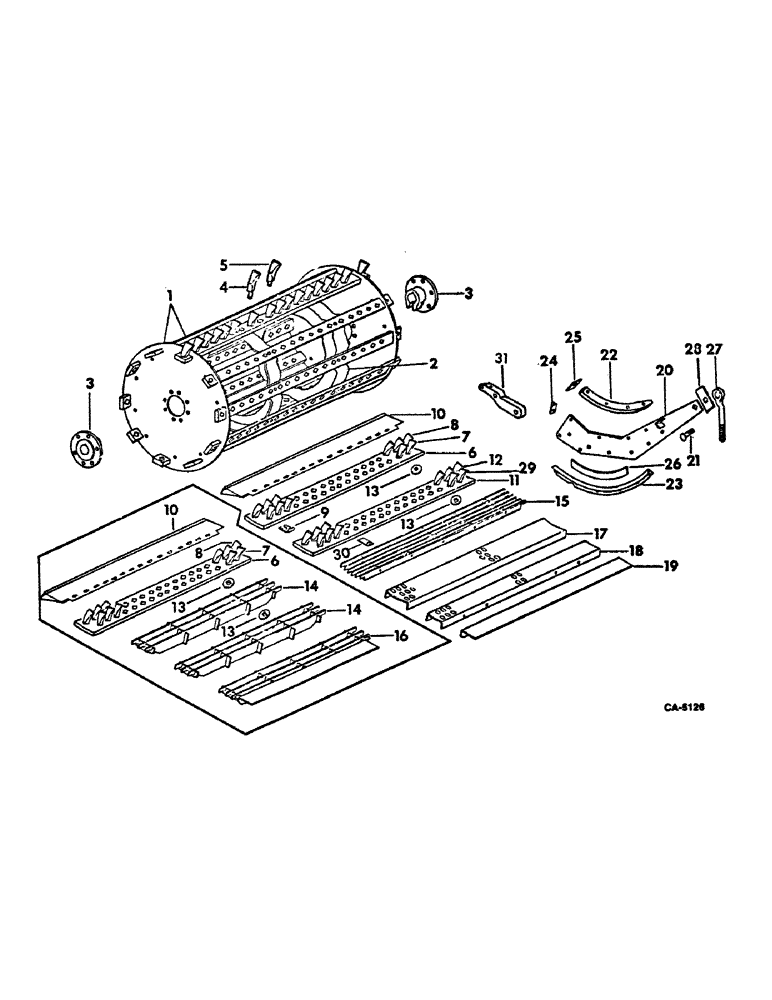

Запчасти Case IH 815 (21-04) - THRESHING CYLINDER AND CONCAVE, SPIKE TOOTH CYLINDER AND CONCAVE (14) - THRESHING

1

172227C92

CYLINDER ASSY, includes ref. no. 2

1шт.

2

567891R1

HEAD, cylinder center

1шт.

3

172123C1

HUB, cylinder

2шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 hex flange lock type 8

1шт.

20100R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1/2 x 2-3/4 type 8

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

155992C2

TOOTH

cylinder middle

20шт.

102638

9/16 pln type 5

20шт.

120896

WASHER, 9/16 med lock

20шт.

5

155993C2

TOOTH

cylinder

160шт.

NLS

NO LONGER SERVICED

9/16 pln type 5

160шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

160шт.

131016

WASHER

.656 x 1.312 x .074

1шт.

6

155985C1

CONCAVE, front

1шт.

7

155992C2

TOOTH

front concave long

18шт.

124583

BRAKE SHOE

NUT, 9/16 hex.

18шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

18шт.

8

155993C2

TOOTH

front concave short

17шт.

124583

BRAKE SHOE

NUT, 9/16 hex.

17шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

17шт.

9

155984C1

SPACER, front concave

3шт.

10

177500C1

EXTENSION ASSY, front concave

1шт.

11

155985C1

CONCAVE, rear, grain, maize and edible bean

1шт.

12

155993C2

TOOTH

rear concave, short, grain, maize and edible bean, for use w/slotted grate concave

17шт.

124583

BRAKE SHOE

NUT, 9/16 hex.

35шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

35шт.

13

936476R1

SQ HOLE WASHER

concave tooth, 17 used for bar grate, 49 used for slotted grate

1шт.

14

574437R91

CONCAVE ASSY, front bar, bar grate

2шт.

15

570567R91

GRATE ASSY, concave bar, slotted grate, grain, maize and edible bean, serial no. 19000 and below

2шт.

16

574461R91

CONCAVE ASSY, rear bar, bar grate

1шт.

17

570565R1

GRATE, concave, slotted grate, serial no. 19000 and below

1шт.

18

570566R1

GRATE, concave rear, slotted grate, serial no. 19000 and below

1шт.

19

570568R1

EXTENSION, concave rear grate, slotted grate

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

1200382

WASHER, 3/8 med lock

4шт.

20

567901R11

SUPPORT ASSY, concave LH

1шт.

20

567902R11

SUPPORT ASSY, concave RH

1шт.

23056R1

BOLT, 3/8 x 7/8 no. 3 plow

10шт.

18720R1

SCREW,Short NK, 5/8"-11 x 2", G2

BOLT, 5/8 x 2 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 hex.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

1шт.

21

166051C1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

BOLT, concave support

4шт.

21434R1

NUT,5/8"-11, G8

5/8 hex type 8

4шт.

366866C1

LOCK WASHER,5/8"

5/8"

4шт.

21976R1

WASHER, 21/32 x 1 x 16 ga

4шт.

22

568135R1

SUPPORT

RETAINER, concave upper LH

1шт.

22

568136R1

SUPPORT

RETAINER, concave upper RH

1шт.

120376

NUT,5/16"-18, G5

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

2шт.

23

568137R1

RETAINER, concave lower LH

1шт.

23

568138R1

RETAINER, concave lower RH

1шт.

24

568139R1

ANGLE

DEFLECTOR, concave LH

1шт.

24

568140R1

ANGLE

DEFLETOR, concave RH

1шт.

25

567908R1

BAR

CLIP, concave locking

2шт.

26

587764R1

SHIM

concave adjustment

8шт.

27

177959C1

BOLT

concave rear adjustment

2шт.

280954

NUT,3/4"-10, G5

4шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga

4шт.

131016

WASHER

.65 x 1.3 x .12

1шт.

28

565572R1

SEALING STRIP

concave rear adjustment bolt slot

2шт.

29

155992C2

TOOTH

rear concave, long

3шт.

30

469808R1

BAR, concave spacer, grain, maize and edible bean

1шт.

31

158004C2

LEVER

concave front support

2шт.

166051C1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

BOLT, 5/8 x 2-1/4 plow type 8

1шт.

21434R1

NUT,5/8"-11, G8

5/8 type 8

1шт.

131165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21796R1

WASHER

.656 x 1.000 x .054

1шт.
