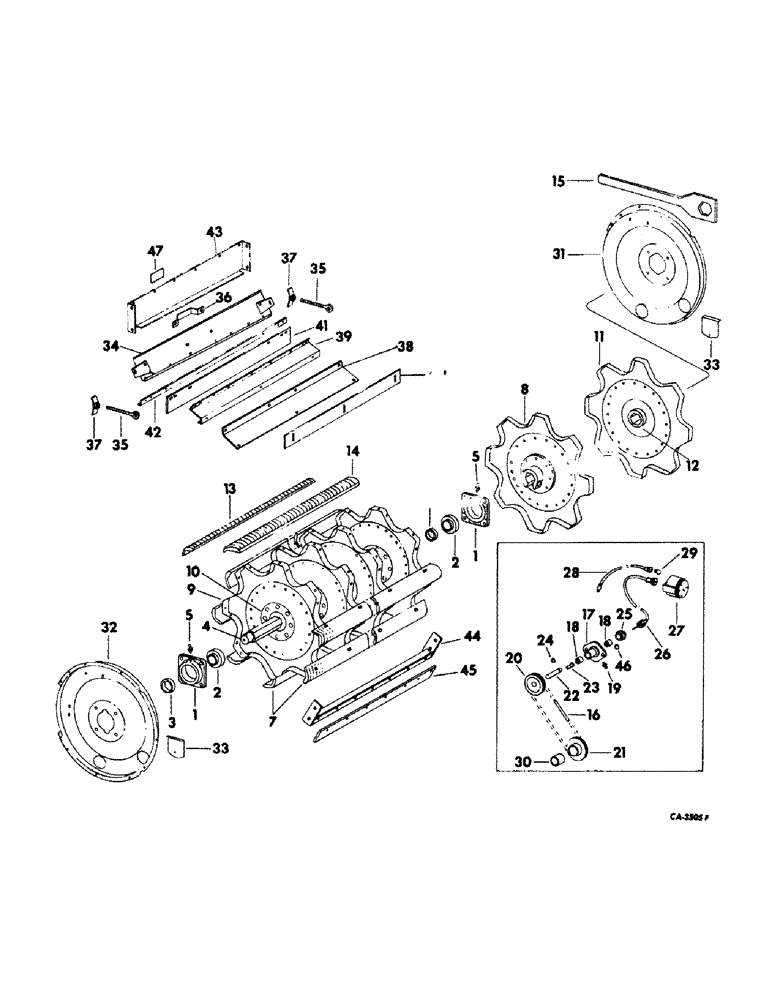

Запчасти Case IH 815 (21-01) - THRESHING CYLINDER AND CONCAVE, RASP BAR CYLINDER (14) - THRESHING

1

172315C11

HOUSING

ASSY, cylinder shaft bearing, includes ref. nos. 2 and 3

2шт.

2

172404C91

BALL BEARING,42.86mm ID x 85mm OD x 22mm W

BEARING, cylinder shaft ball

2шт.

3

629724R11

COLLAR

COLLAR, cylinder shaft left

1шт.

4

172313C11

SHAFT ASSY, cylinder

1шт.

20290R1

LOCK NUT,1"-14, G5

NUT, 1/4-14 NF hex lock

1шт.

24552R1

WASHER

1-1/32 x 2 x 22 ga

1шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-21/32 x 2-1/4 x 1/4

1шт.

20705R1

WASHER

1-25/32 x 2-1/2 x 16 ga

7шт.

5

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 45 deg elbow lub

2шт.

6

629713R1

SPACER

cylinder shaft

1шт.

7

177213C91

CYLINDER ASSY

1шт.

8

177219C2

HEAD ASSY, cylinder inner

2шт.

9

177216C92

HEAD ASSY, cylinder outer LH, includes ref. no. 10

1шт.

10

172123C1

HUB, outer head

1шт.

236486R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 hex flange lock type 8

1шт.

11

177218C92

HEAD ASSY, cylinder outer RH, includes ref. no. 12

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 hex flange lock type 8

1шт.

236486R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1шт.

12

172123C1

HUB, outer head

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

U/2 hex flange lock type 8

1шт.

236486R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

13

177214C1

BAR

cylinder LH, rasp, regular

4шт.

13

180503C1

BAR

cylinder LH, rasp, hardened

4шт.

231-2446

NUT,3/8"-24, GB

NUT, 3/8-24 hex lock

16шт.

181635

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

3/8-NF x 3/4 type 5

16шт.

181637

SCREW, 3/8-24 x 1 hex-hd cap

16шт.

123920

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

14

177215C1

BAR

cylinder RH, rasp, regular

4шт.

14

180504C1

BAR

cylinder RH, rasp, hardened

4шт.

231-2446

NUT,3/8"-24, GB

NUT, 3/8-24 hex lock

16шт.

181635

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

3/8-NF x 3/4 type 5

16шт.

NLS

NO LONGER SERVICED

SCREW, 3/8-24 x 1 hex-hd cap

16шт.

123920

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

20шт.

15

181674C1

STRAP

BAR ASSY, rocking

1шт.

16

167099C1

V-BELT,0.24" W x 53.96" L

Cylinder Speed Indicator Drive 0.24" W x 53.96" L

1шт.

17

171147C12

HOUSING

w/BRGS., speed indicator jackshaft support, includes ref. no. 18

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

18

336180R91

NEEDLE BEARING

ASSY, speed indicator jackshaft inner

1шт.

19

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

20

164887C1

PULLEY

speed indicator shaft driven, 4 in. OD

1шт.

137258

COTTER PIN

3/16" x 1 3/4"

1шт.

21

164879C2

PULLEY, speed indicator shaft drive, 4 in. OD

1шт.

21750R1

WASHER

1-29/32 x 2-1/2 x 11 ga

4шт.

22

173582C91

SHAFT

JACKSHAFT ASSY, speed indicator drive, includes ref. no. 23

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga

5шт.

21471R1

WASHER

21/32 x 1 x 11 ga

1шт.

23

164892C1

BUSHING

flexible shaft drive

1шт.

24

324050R1

SNAP RING

RING, speed indicator jackshaft snap

1шт.

25

164884C1

ADAPTER

UNION, speed indicator flexible shaft

1шт.

26

SHAFT ASSY, speed indicator flexible, refer to group 11 under instruments and gages for unit listing

1шт.

27

INDICATOR ASSY, cylinder drive speed, refer to group 11 under instruments and gauges for unit listing

1шт.

28

372546R91

CABLE

SOCKET ASSY, instrument light

1шт.

29

A14553

BULB

light

1шт.

30

164229C1

SPACER, cylinder shaft RH

1шт.

31

172451C1

COVER ASSY, cylinder RH end

1шт.

32

172450C1

COVER ASSY, cylinder LH end

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 hex.

4шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

124847

COLLAR

5/8 hex jam

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

138557

WASHER,Int Tooth, 5/8"

5/8 int-tooth lock

4шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga

2шт.

33

633518R1

DOOR

cylinder and concave inspection

4шт.

34

180560C91

PLATE

DOOR ASSY, cylinder front

1шт.

35

559017R1

BOLT,Eye, 1/2" - 13 x 4 1/8", Full Thd

EYEBOLT, cylinder front door

2шт.

36

160638C1

HANDLE

cyl front door

1шт.

37

177531C1

FLANGE NUT

NUT ASSY, cylinder front door locking

2шт.

38

177518C1

DEFLECTOR, cylinder

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

4шт.

39

177519C1

SUPPORT, cylinder deflector lower

1шт.

40

174819C1

PLATE, cylinder deflector, not rice

1шт.

40

196087C1

DEFLECTOR, cylinder, rice

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

41

166911C1

DOOR SEAL

SEAL, cylinder deflector backing, serial no. 12300 and below

1шт.

41

197956C1

SEAL, cylinder deflector backing, serial no. 12301 and above

1шт.

42

177529C1

STRIP, cylinder deflector backing seal, serial no. 12300 and below

1шт.

42

197962C1

STRIP, cylinder deflector backing seal, serial no. 12301 and above

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

9шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 znd slt-pan-hd mach

9шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

9шт.

43

177527C1

SUPPORT, cylinder door upper

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

4шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

4шт.

44

177533C1

STRIPPER ASSY, cylinder

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

45

177538C1

FLAP

cylinder stripper

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD p/t lock type 5

7шт.

18003

BOLT, 5/16 x 1-1/2 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

7шт.

46

366181R1

GASKET

SEAL, oil

1шт.

47

179749C2

PRODUCT GRAPHIC

danger

1шт.
