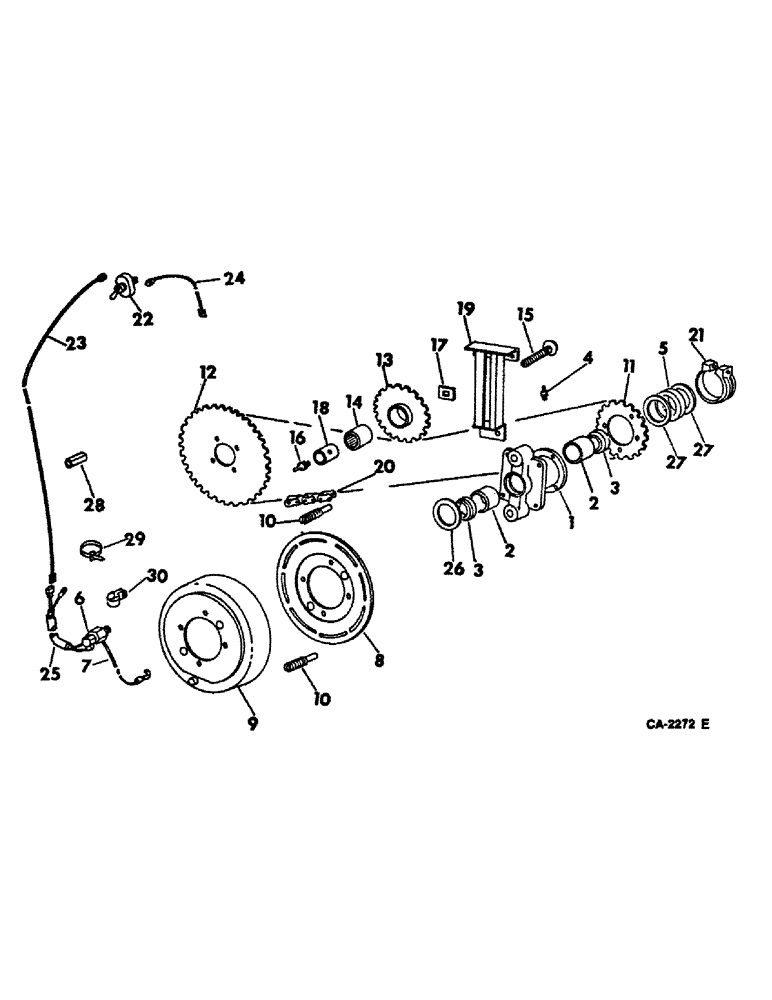

Запчасти Case IH 815 (33-06) - FEEDER, FEEDER DRIVE (13) - FEEDER

1

172664C21

HUB ASSY, feeder drive clutch, includes ref. nos. 2 and 3

1шт.

2

392680R91

NEEDLE BEARING

BUSHING, clutch hub

2шт.

3

158109C91

SEAL

feeder drive clutch brg oil

2шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

5

164683C1

THRUST WASHER

feeder clutch hub thrust

1шт.

6

179499C91

HOLDER

BRUSH HOLDER ASSY, serial no. 19000 and below

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

6

122177C1

HARNESS

w/BRUSH HOLDER, serial no. 19001 and above

1шт.

7

179650C1

ELECTRICAL WIRE

CABLE, switch to fuse block, 23-1/2 in.

1шт.

8

188754C1

ARMATURE

ASSY, feeder drive clutch

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

9

188753C1

MAGNET

feeder drive clutch

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

10

160309C1

STUD

feeder drive clutch lockout

2шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 znd hex. jam

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

11

172665C1

SPROCKET ASSY.

SPROCKET, feeder drive, 26T

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 znd hex-hd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

12

175709C1

SPROCKET, feeder driven 49T, not edible bean

1шт.

REF#12 SHOULD READ 179709C1 8/29/96

1шт.

12

179215C1

PINION

SPROCKET, feeder driven, 62 T, for edible bean

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW, 3/8 x 3 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

13

172079C91

SPROCKET ASSY.

SPROCKET ASSY, feeder dr tightener 19 T, includes ref. no. 14

1шт.

14

577006R91

NEEDLE BEARING,Needle, 22.2mm ID x 33.36mm OD x 38.1mm W

feeder drive tightener

1шт.

15

575280R1

BOLT (SPREADER)

BOLT, feeder drive tightener sprocket

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 znd hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21783R1

SQ HOLE WASHER,41/64" x 1 1/2" x .105", Sq Hole

21/32 sq x 1-1/2 x 12 ga znd

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

2шт.

16

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

17

160690C1

BAR

WASHER, feeder drive tightener sprocket

1шт.

18

578607R1

SLEEVE CYLINDER

SLEEVE, feeder drive tightener sprocket

1шт.

19

173028C1

BRACKET ASSY, feeder drive tightener

1шт.

20

CHAIN ASSY, feeder drive, not edible bean, use 105 links from a 10-ft roll marked 654437R91 and 1 connecting link 654438R91

1шт.

20

CHAIN ASSY, feeder drive, for edible bean, use 9 links from a 10-ft roll marked 654437R91 and 1 connecting link 654438R91

1шт.

21

164682C1

CLAMP, feeder clutch hub

1шт.

20628R1

BOLT,Hex, 3/8"-16 x 3 1/4", G2

3/8 x 3-1/4 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

22

244641R91

SWITCH

ASSY, feeder clutch throw out

1шт.

23

172033C1

CABLE ASSY, feeder clutch lower 80 in.

1шт.

24

170520C1

CABLE ASSY, feeder clutch throw-out switch to fuse block 23-1/2 in.

1шт.

25

179651C1

CABLE

ASSY, brush holder

1шт.

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, 5/16 ext-int-tooth lock

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

26

U14294

WASHER

1-15/16 x 3/4 x 16 ga

1шт.

27

U14294

WASHER

1-15/16 x 3/4 x 16 ga

2шт.

28

163489C1

STRIP

rubber clutch, wire thru operators platform rear support

1шт.

29

702093C1

CABLE TIE

CLAMP, rubber strip tie

1шт.

30

132112H1

CLAMP,9/16", 3/8" Bolt

brush holder

1шт.
