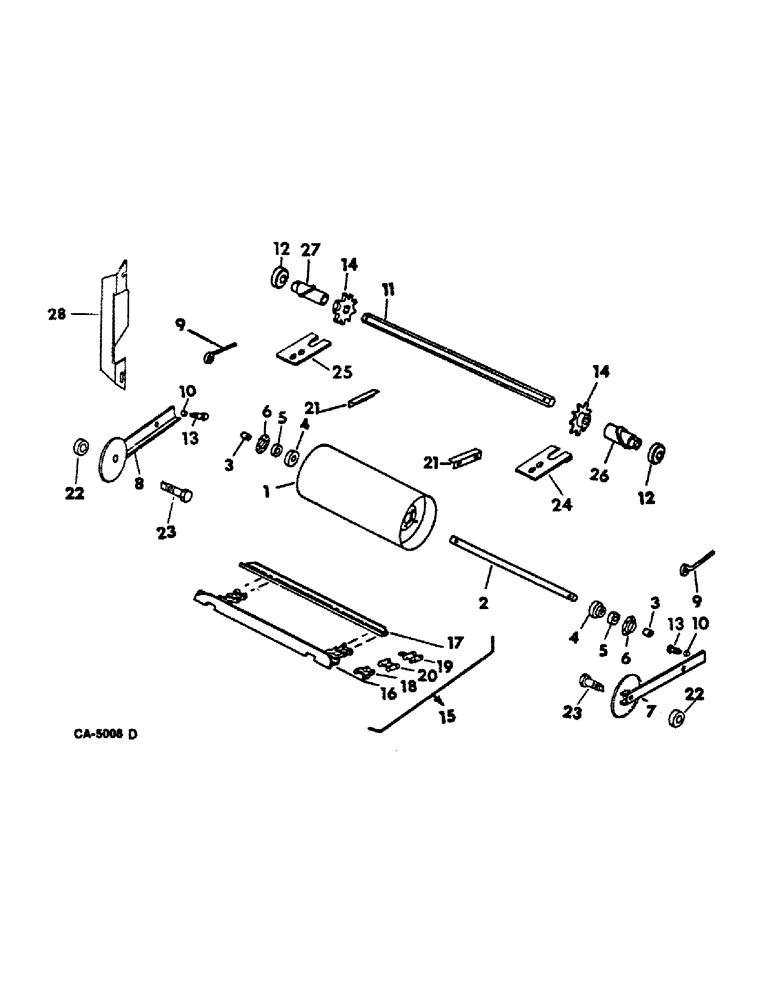

Запчасти Case IH 815 (33-04) - FEEDER, FEED CONVEYOR (13) - FEEDER

1

175975C1

DRUM HUB

DRUM ASSY, feed conveyor

1шт.

2

175982C1

SHAFT

feed conveyor drum

1шт.

20704R1

WASHER

1.031 x 1.500 x .105

2шт.

3

N74461

SPACER, 1 x 3/4 STD pipe

2шт.

4

202311C91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING, feed conveyor drum

2шт.

5

455102R21

COLLAR

w/SET SCREW, feed conveyor drum

2шт.

6

165360C1

FLANGED BEARING,95.2 mm OD x 8.74 mm

FLANGE, feed conveyor drum bearing

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 hex.

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

7

187060C1

ARM

ASSY, conveyor drum support LH

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8 x 2 hex-hd cap

1шт.

8

187061C1

ARM

ASSY, conveyor drum support RH

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8 x 2 hex-hd cap

1шт.

9

176508C1

BOLT,5/8" - 11 x 228.60mm

feed conveyor tightener

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

.66 x 1.3 x .10 ga

4шт.

10

558506R1

SPACER

support arm bolt

2шт.

11

176511C1

SHAFT

feed conveyor

1шт.

609376R1

WASHER

1.781 x 2.5 x 1.05

1шт.

137323

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

1шт.

12

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

BEARING ASSY, feed conveyor shaft

2шт.

13

178005C1

BOLT,Hex, 5/8" - 11 x 3", Gr 5

conveyor drum sprocket arm

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 hex.

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

.66 x 1.3 x .10 ga

3шт.

14

197556C1

SPROCKET ASSY.

SPROCKET, feed conveyor 9-T

2шт.

197643C1

SET SCREW

special set

1шт.

15

175991C92

CHAIN (AG)

CHAIN ASSY, feed conveyor, not 34 inch tires, not rice

1шт.

15

175993C92

CHAIN (AG)

CHAIN ASSY, feed conveyor, rice, for 34 inch tires

1шт.

15

180578C91

CHAIN (AG)

CHAIN w/SLATS, feed conveyor, rice, not use w/34-inch tires

1шт.

16

175996C1

SLAT

feed conveyor, 22 used not rice or 34 inch tires

1шт.

16

180577C1

SLAT

feed conveyor, 22 used rice not 34 inch tires, 25 used rice w/34 inch tires

1шт.

104264

RIVET,FH, 5/16" x 5/8"

5/16 x 5/8 pln f/hd sol

1шт.

17

177302C1

SLAT

feed conveyor stripper

1шт.

18

179904C2

CLEVIS PIN

LINK ASSY, offset, consists of 1 side bar w/roller link and loose pin

1шт.

19

189710C1

LINK,A550, 3 Links x 41.4mm = 124.2mm

ASSY, attaching, consists of one side bar riveted pins and one loose side bar

1шт.

20

179903C2

LINK

ASSY, connecting, consists of one side bar w/riveted pins one loose side bar

1шт.

21

179273C1

STOP, feed conveyor drum lower

2шт.

22

197211C1

SPACER

feed conveyor drum

1шт.

23

189709C1

BOLT,Hex, 1/2" - 13 x 3"

feed conveyor drum stop

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

24

197964C1

STRIPPER

ASSY, LH, for use w/3/8 hardware

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 hex-hd cap

2шт.

120394

WASHER,3/8", SAE

WASHER, .60 x .01 x .06

4шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

24

185708C1

STRIPPER ASSY.

STRIPPER ASSY, LH, for use w/1/2 hardware

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 type 8

2шт.

390307C1

WASHER

.531 x 1.062 x .095 hdn

4шт.

359787C1

LOCK NUT,1/2"-13, GC

NUT, 1/2 CAD p/t lock type 8

2шт.

935915R1

SHIM,33.02mm OD x 0.38mm Thk

washer

1шт.

25

197965C1

STRIPPER

ASSY, RH, for use w/3/8 hardware

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 hex-hd cap

2шт.

120394

WASHER,3/8", SAE

WASHER, .60 x .01 x .06

4шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

25

185709C1

STRIPPER ASSY.

STRIPPER ASSY, RH

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 type 8

2шт.

390307C1

WASHER

.531 x 1.062 x .095 hdn

4шт.

359787C1

LOCK NUT,1/2"-13, GC

NUT, 1/2 CAD p/t lock type 8

2шт.

935915R1

SHIM,33.02mm OD x 0.38mm Thk

washer

1шт.

26

178780C1

SPACER

ASSY, conveyor sprocket LH

1шт.

27

178781C1

SPACER

ASSY, conveyor sprocket RH

1шт.

28

196360C1

SUPPORT, RH feeder pivot

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.
