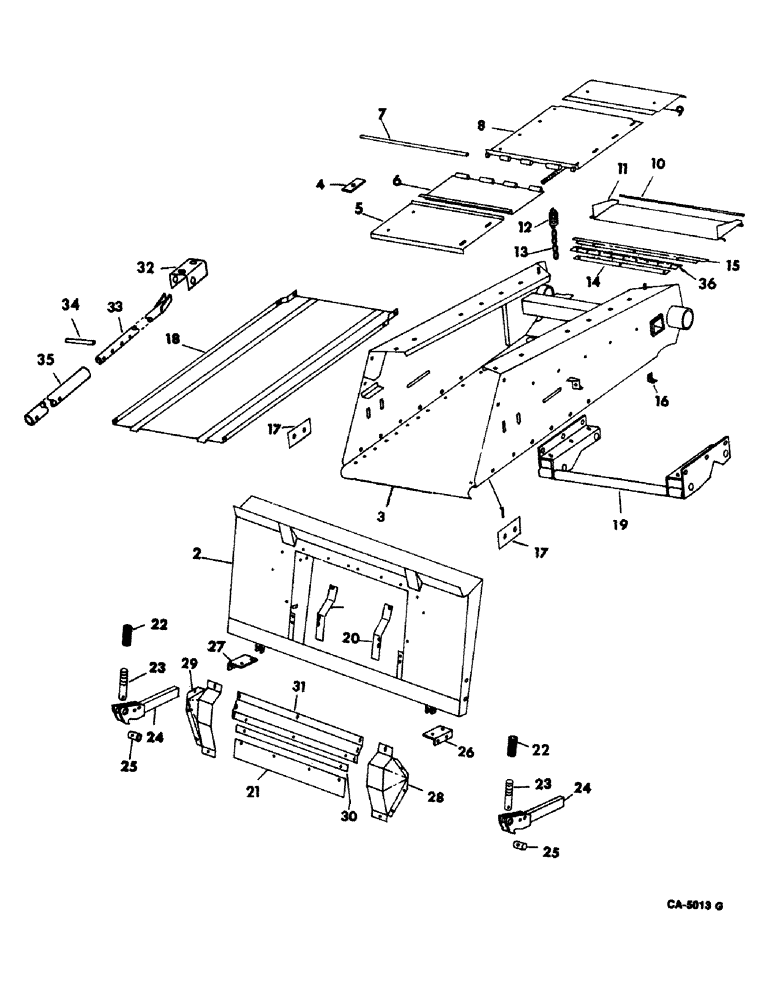

Запчасти Case IH 815 (33-01) - FEEDER (13) - FEEDER

1

197937C3

HOUSING

feeder, not for use w/34 inch tires

1шт.

1

197939C3

HOUSING, feeder, for use w/34 inch tires

1шт.

619008R1

BOLT

1/2 x 1 sq-hd crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 hex.

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8 x 1-1/2 hex-hd cap

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8 x 1-3/4 hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

608081R1

WASHER

.656 x 1.750 x .090

1шт.

2

175863C1

ADAPTER ASSY, feeder

1шт.

3

175887C1

SHEET

feeder bottom, not for use w/34 inch tires, serial no. 19000 and below

1шт.

3

180407C1

SHEET

feeder bottom, not for use w/34 inch tires, serial no. 19001 and above

1шт.

3

180408C1

SHEET, feeder bottom, for use w/34 inch tires, serial nos. 19001 and above

1шт.

3

175945C1

SHEET, feeder bottom, for use w/34 inch tires, serial no. 19000 and below

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-hd crg

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

21403R1

WASHER

.406 x 1.000 x .120

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 crg type 1

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 crg type 1

1шт.

4

154041C1

STRIP

feeder top door hold down

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

175900C2

SHEET, feeder lower top

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

NLS

NO LONGER SERVICED

.53 x 1.06 x .10

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

6

1805559C1

DOOR, feeder top

1шт.

7

175906C1

ROD

feeder door hinge

1шт.

8

175890C1

SHEET ASSY, feeder top, not for use w/36 inch tires

1шт.

8

175946C1

SHEET ASSY, feeder top, for use w/34 inch tires

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 sq-nk crg type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 crg type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

9

175920C1

COVER

feeder top upper

1шт.

10

180171C1

ROD, feeder door hinge

1шт.

11

175923C1

DOOR

ASSY, feeder

1шт.

12

622016R1

SPRING

door latch

2шт.

13

167570C1

CHAIN,203.2mm L

door latch

2шт.

14

175933C1

DOOR SEAL

feed door, serial no. 19000 and below

1шт.

14

197428C1

SEAL

feeder door, serial no. 19001 and above

1шт.

15

197429C1

SEALING STRIP

feeder lower door seal, serial no. 19000 and below

1шт.

15

197427C1

GUIDE

STRIP, sealing back, serial no. 19001 and above

1шт.

16

154971C1

ANGLE

feeder door spring

2шт.

164191R1

SCREW

5/16 x 1-1/2 slt-truss-hd

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

17

179274C1

COVER, feeder side

2шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

18

177670C2

DIVIDER ASSY, feeder, no. 34 in. tires

1шт.

18

177674C2

DIVIDER ASSY, feeder, for 34 in. tires

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

12шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

164191C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1 1/2"

5/16 x 1-1/2 znp slt-truss-hd

12шт.

19

176529C1

BRACKET ASSY, header lift

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 crg type 5

6шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

6шт.

182256R1

NUT, 3/8 flange lock

6шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

6шт.

20

180151C91

PACKAGE, feeder front filler

1шт.

93817R1

NUT, 5/16 flange lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

2шт.

21

175955C1

COVER

front lower

1шт.

22

367833R1

SPRING

latch rod

2шт.

23

177138C1

ROD

feeder latch

2шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16 nylon insert

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .34 x .05 x .06

1шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

24

179024C1

HINGE

HANDLE ASSY, feeder latch

1шт.

25

177141C1

PIN,15.88mm OD x 41mm L

latch pivot

1шт.

21471R1

WASHER

21/32 x 1 x 11 ga

4шт.

17132R1

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

26

175913C1

ANGLE

feeder adapter LH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 tpe 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

NLS

NO LONGER SERVICED

.53 x 1.06 x .10

2шт.

27

175914C1

ANGLE

feeder adapter RH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120396

WASHER

.53 x 1.06 x .10

2шт.

28

175908C1

DEFLECTOR

ASSY, feeder front LH

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

5шт.

29

175909C1

DEFLECTOR

ASSY, feeder front RH

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

5шт.

30

175952C1

BAR

STRIP, front cover back

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD p/t lock type 5

9шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

9шт.

31

175917C1

COVER

feeder adapter

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

5шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

5шт.

32

179663C1

CHANNEL

stand lock

1шт.

33

179660C2

TUBE ASSY, feeder safety stand

1шт.

103411

SPLIT (COTTER), 3/16" x 2"

1шт.

34

164533C1

PIN

safety stand anchor

1шт.

517843C1

PIN, 3/16 QA cotter

1шт.

35

187154C91

PIPE, safety stand anchor

1шт.

36

197427C1

GUIDE

STRIP, seal spacer

1шт.
