(10-45) - HYDRAULICS, HEADER LIFT VALVE, FOR USE W/AUTOMATIC HEADER CONTROL

Запчасти Case IH 815 (10-45) - HYDRAULICS, HEADER LIFT VALVE, FOR USE W/AUTOMATIC HEADER CONTROL (07) - HYDRAULICS

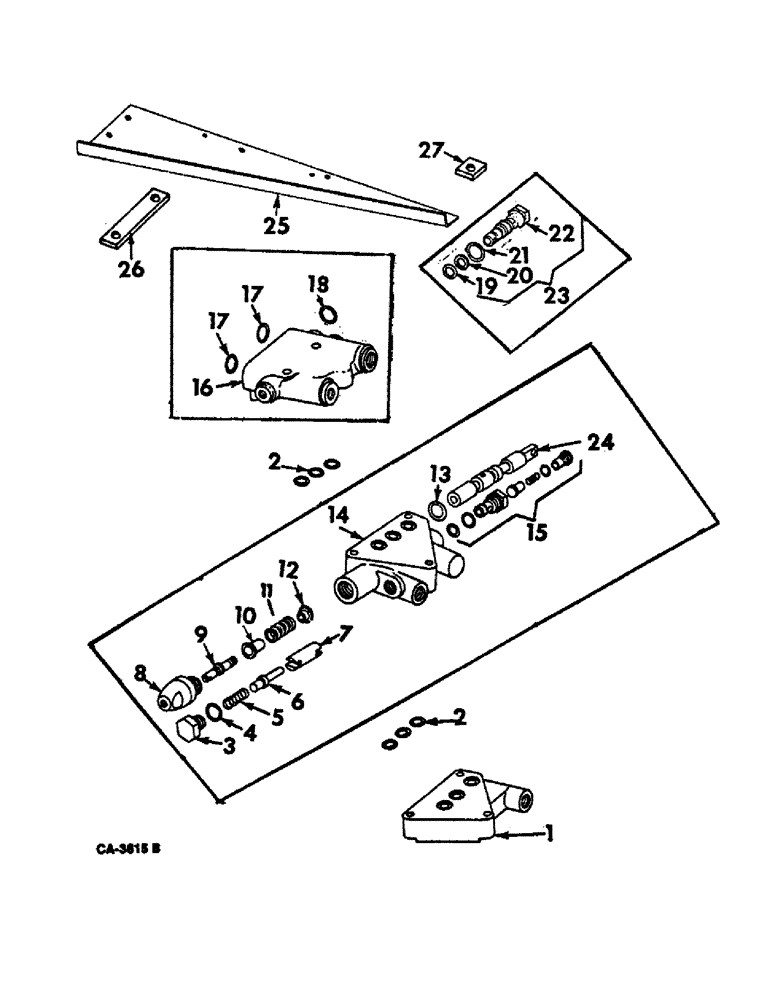

Схема запчастей Case IH 815 - (10-45) - HYDRAULICS, HEADER LIFT VALVE, FOR USE W/AUTOMATIC HEADER CONTROL (07) - HYDRAULICS
1
7
11
18
12
27
17
14
26
3
23
2
19
4
8
17
5
21
13
15
6
9
22
10
24
16
25
2
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

166882C1

VALVE

PLATE, end RH

1шт.

2

574069R1

O-RING,0.750" ID x .062"

1/16 x 3/4 ID

6шт.

3

159801C1

PLUG

hex

1шт.

4

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

5

159382C1

SPRING

lockout

1шт.

6

159380C91

VALVE

ASSY, poppet

1шт.

7

173859C1

PLUNGER

lockout

1шт.

8

937198R91

CAP

ASSY

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

1шт.

9

937197R1

SCREW,1/4" - 20 x 2-5/16"

spool spring

1шт.

10

937195R1

SPRING WASHER

spool spring

1шт.

11

588353R1

SPRING

spool centering

1шт.

12

937194R1

SPRING WASHER

spool spring

1шт.

13

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32

1шт.

14

183656C91

VALVE

ASSY, four-way, replaces 159376C91, includes ref. nos. 3 thru 13, 15 thru 32

1шт.

15

173827C91

VALVE

PLUG ASSY, check

1шт.

16

187892C92

PLATE

VALVE ASSY, includes ref. nos. 17 and 18

1шт.

17

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 x 7/8 x 3/32

2шт.

18

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32

1шт.

19

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

20

587585R1

WASHER

back-up

1шт.

21

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32

1шт.

22

BODY, (not serviced separately) order valve assy 167447C91

1шт.

23

167447C91

VALVE

ASSY, relief, 1750 PSI, includes ref. nos. 19 thru 21

1шт.

24

SPOOL, (not serviced separately) order valve assy ref. no. 14

1шт.

25

178042C1

SUPPORT, hydraulic valve

1шт.

26

178040C1

PAD, hyd valve support left front

1шт.

27

164640C1

PAD, hyd valve support right

1шт.

166883C91

PACKAGE

KIT, major seal repair, for use w/164753C92 valve, consists of (1) kit 159383C91, (2) o-ring 350667R1, (1) o-ring 352221R1, (3) o-ring 574069R1, (1) o-ring 350429R1, (1) o-ring 252707R1, (1) o-ring 673644R1

1шт.

159383C91

PACKAGE

KIT, seal repair, for use w/159376C91 and 183656C91 valve, consists of (1) o-ring 352221R1, (1) o-ring 252739R1, (1) o-ring 310925R1, (1) o-ring 321956R1, (1) valve 159380C91

1шт.
