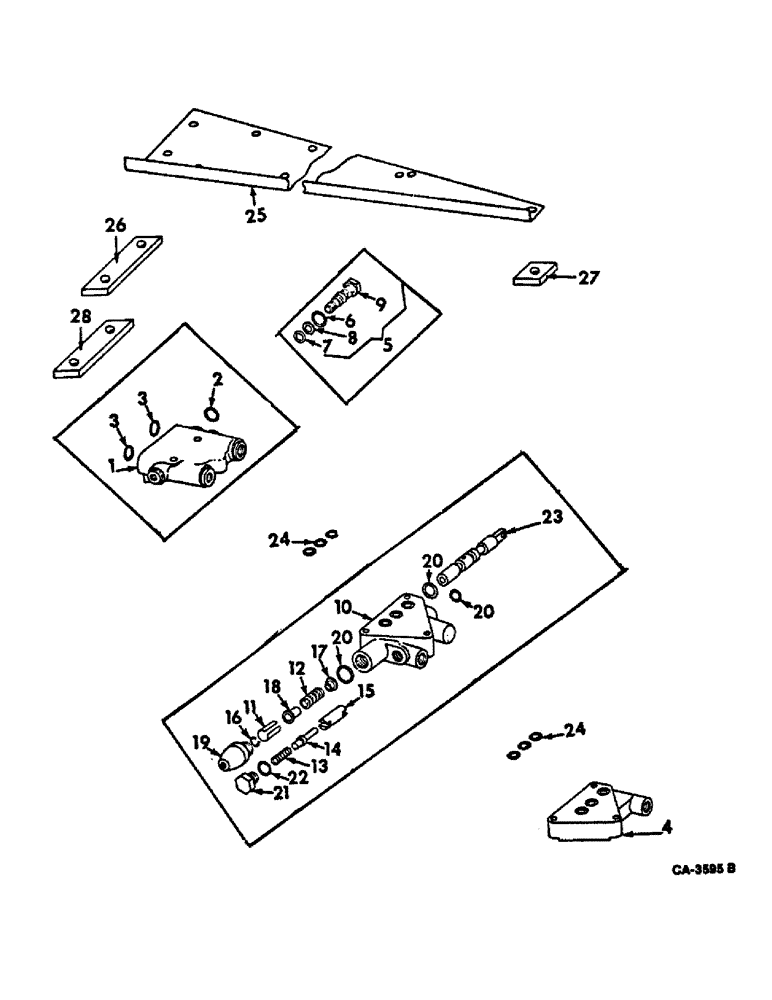

Запчасти Case IH 815 (10-43) - HYDRAULICS, HEADER LIFT VALVE, NOT FOR USE W/AUTOMATIC HEADER CONTROL (07) - HYDRAULICS

1

187892C91

PLATE

ASSY, port LH, includes ref. nos. 2 and 3

1шт.

2

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32

1шт.

3

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 x 7/8 x 3/32

2шт.

4

166882C1

VALVE

PLATE, port RH

1шт.

5

167447C91

VALVE

ASSY, 1750 PSI relief, includes ref. no. 6 thru 9

1шт.

6

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32

1шт.

7

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

8

587585R1

WASHER

back-up

1шт.

9

BODY, (not serviced separately) order valve assy 167447C91

1шт.

10

183656C91

VALVE

ASSY, 3 way, includes ref. nos. 11 thru 23

1шт.

11

588345R1

SLEEVE

spool

1шт.

12

588353R1

SPRING

spool centering

1шт.

13

159382C1

SPRING

lockout

1шт.

14

159380C91

VALVE

ASSY, poppet

1шт.

15

173859C1

PLUNGER

lockout

1шт.

16

(Not used in this application)

1шт.

17

937194R1

SPRING WASHER

spool spring

1шт.

18

937195R1

SPRING WASHER

spool spring

1шт.

19

937198R91

CAP

ASSY

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

1шт.

20

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32

3шт.

21

159801C1

PLUG

1шт.

22

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

23

SPOOL, (not serviced separately) order valve assy 170300C91

1шт.

24

574069R1

O-RING,0.750" ID x .062"

1/16 x 3/4 ID

6шт.

25

178042C1

SUPPORT, hydraulic valve

1шт.

26

178040C1

PAD, hyd valve support lift front

1шт.

27

164640C1

PAD, hyd valve support right

1шт.

28

165767C1

PAD, header lift valve

1шт.

166883C91

PACKAGE

KIT, major seal repair, for 17029C91 valve, consists of (1) kit 159383C91, (1) o-ring 352221R1, (2) o-rings 350667R1, (3) o-rings 574069R1, (1) o-ring 350429R1, (1) o-ring 252707R1, (1) washer 673644R1

1шт.

159383C91

PACKAGE

KIT, repair, for valve assy 170300C91, consists of (1) o-ring 252707R1, (1) o-ring 252739R1, (1) o-ring 310925R1, (1) o-ring 321956R1, (1) valve 159380C91

1шт.
