(10-41) - HYDRAULICS, HEADER AUTOMATIC CONTROL VALVE, SERIAL NO. 19447 AND ABOVE

Запчасти Case IH 815 (10-41) - HYDRAULICS, HEADER AUTOMATIC CONTROL VALVE, SERIAL NO. 19447 AND ABOVE (07) - HYDRAULICS

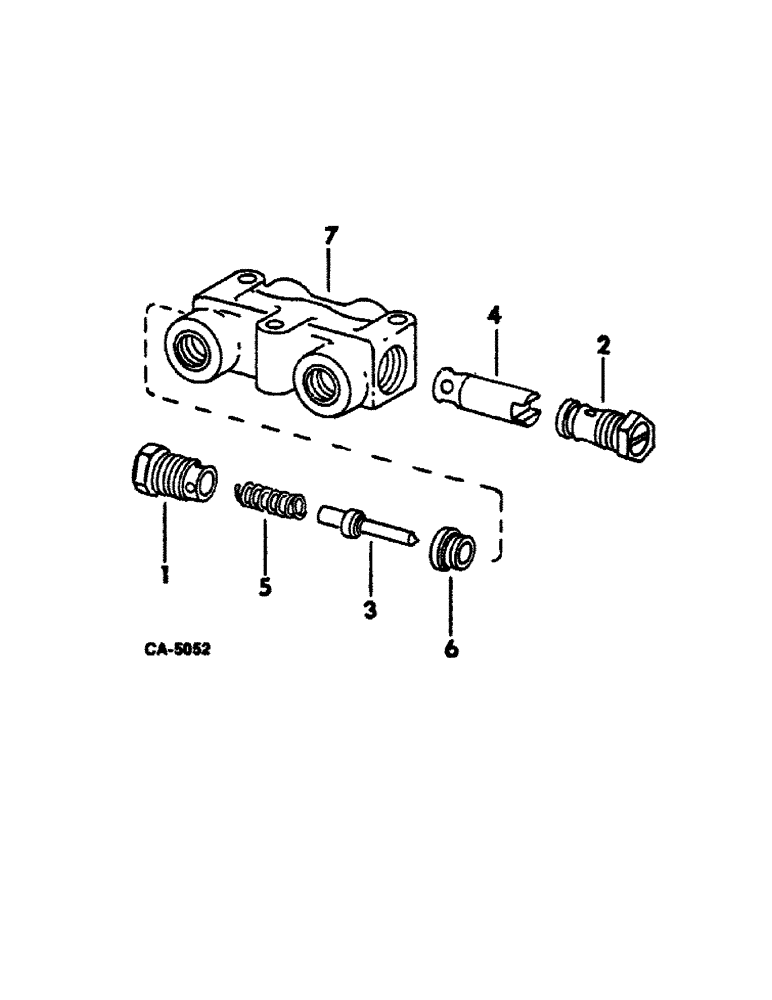

Схема запчастей Case IH 815 - (10-41) - HYDRAULICS, HEADER AUTOMATIC CONTROL VALVE, SERIAL NO. 19447 AND ABOVE (07) - HYDRAULICS
3
2
6
7
4
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

180208C91

VALVE

ASSY, lockout, consists of ref. nos 1 through 7

1шт.

1

180240C91

PLUG

ASSY

1шт.

2

173827C91

VALVE

PLUG ASSY

1шт.

3

159380C91

VALVE

POPPET ASSY

1шт.

4

180243C1

PLUNGER

1шт.

5

180242C1

SPRING

1шт.

6

180241C1

SEAT ASSY

1шт.

7

BODY, valve lockout, (not serviced separately) order 180208C91 valve

1шт.

180209C91

KIT

ASSY

1шт.
