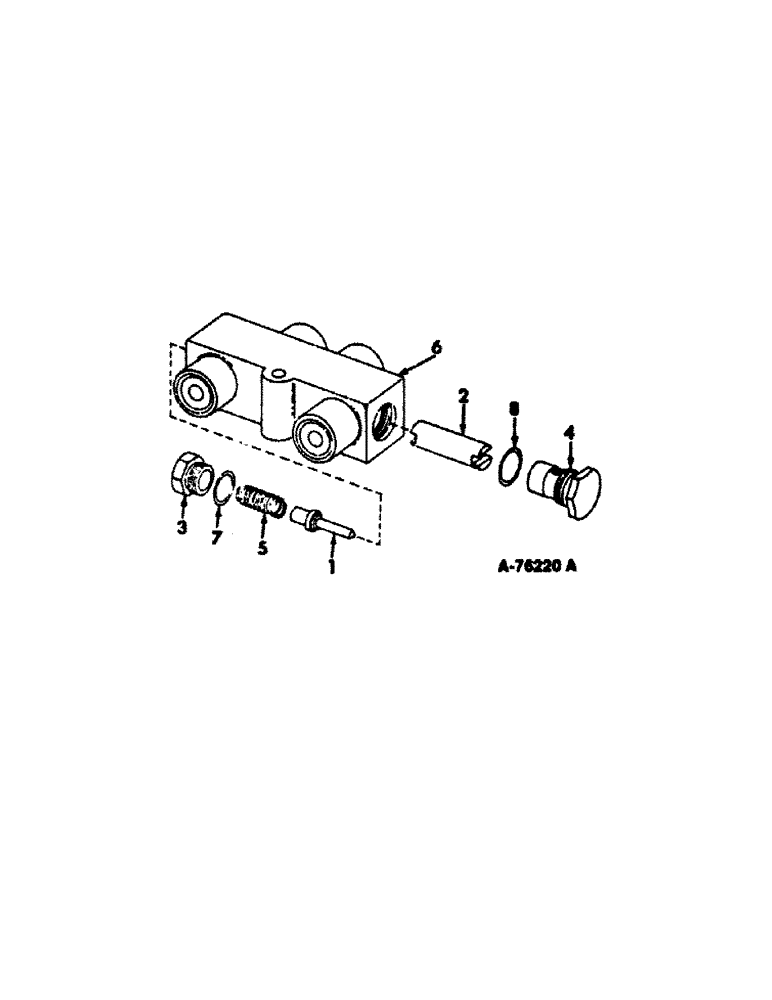

Запчасти Case IH 815 (10-41[1]) - HYDRAULICS, HEADER AUTOMATIC CONTROL VALVE, SERIAL NO. 19446 AND BELOW (07) - HYDRAULICS

159753C91

VALVE

ASSY

1шт.

1

159380C91

VALVE

POPPET ASSY

1шт.

2

159379C1

PLUNGER

1шт.

3

159801C1

PLUG

hex

1шт.

4

159803C1

PLUG, hex

1шт.

5

159382C1

SPRING

1шт.

6

BODY, (not serviced separately)

1шт.

7

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

3/32 x 5/8

1шт.

8

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/32 x 3/4

1шт.
