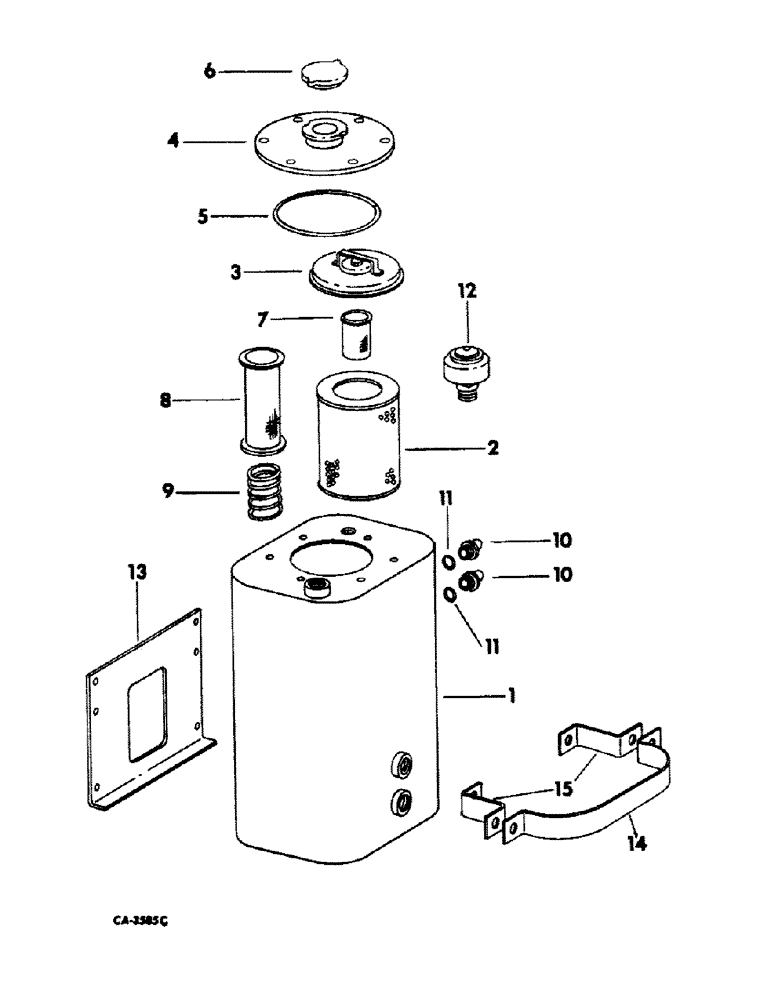

Запчасти Case IH 815 (10-38) - HYDRAULICS, HYDRAULIC RESERVOIR (07) - HYDRAULICS

1

177999C91

RESERVOIR ASSY, hydraulic oil, includes ref. nos. 1 thru 11

1шт.

2

386120R91

FILTER CARTRIDGE

ELEMENT ASSY, reservoir

1шт.

3

173131C1

COVER ASSY

LID ASSY, filter

1шт.

4

179491C1

COVER

ASSY, reservoir

1шт.

5

21295R1

O-RING,5.725" ID x 6.275" OD x 0.275"

reservoir cover

1шт.

6

361705R91

COVER

CAP ASSY, reservoir cover

1шт.

7

179489C1

FILTER, ENGINE OIL

FILTER, reservoir cover

1шт.

8

173929C1

STRAINER ELEMENT

STRAINER, reservoir

1шт.

9

173930C1

SPRING

reservoir port

1шт.

10

244600R92

SIGHTGLASS

GLASS, hydraulic oil lever sight

1шт.

11

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

hyd oil level sight glass

2шт.

12

923745C91

BREATHER ASSY.

BREATHER ASSY, filter

1шт.

13

178000C1

SUPPORT, hydraulic oil reservoir

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

180154C1

STRAP

SUPPORT, hyd oil reservoir

1шт.

15

180153C1

STRAP

hyd oil reservoir

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 hex-hd cap

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.
