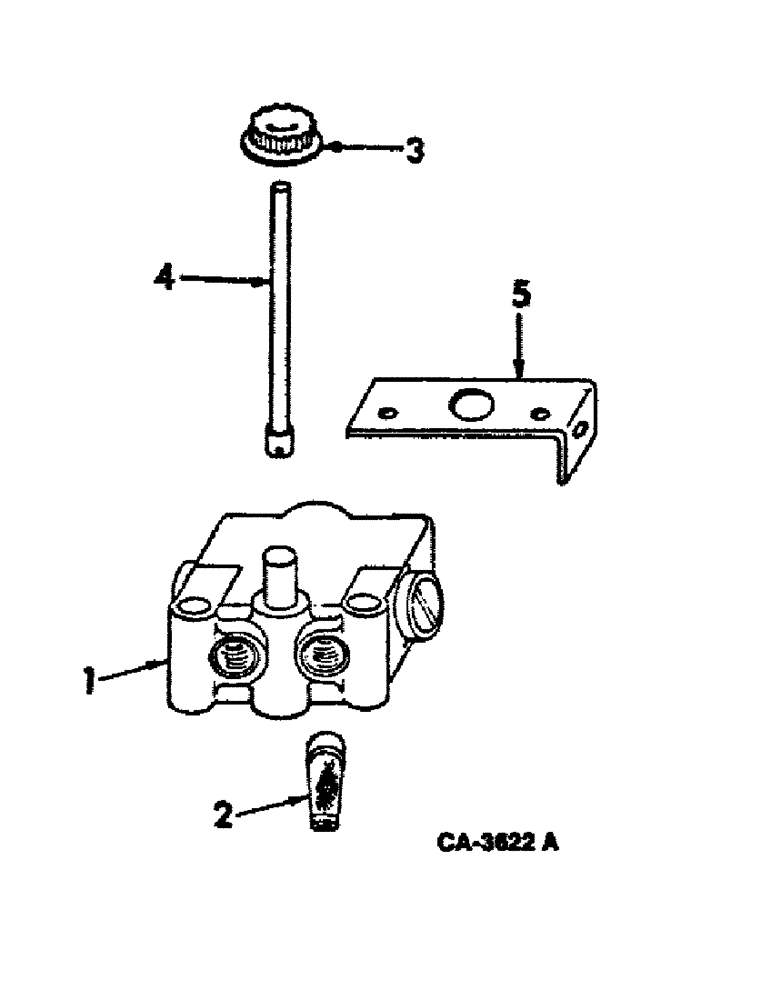

Запчасти Case IH 815 (10-34) - HYDRAULICS, REEL DRIVE FLOW DIVIDER AND CONTROL (07) - HYDRAULICS

1

174785C92

VALVE

FLOW DIVIDER ASSY

1шт.

174787C91

PACKAGE, REPAIR

KIT, seal repair

1шт.

2

174786C1

FILTER

flow divider

1шт.

3

174792C2

KNOB

reel drive speed control

1шт.

23398R1

SCREW, 10-32 x 3/4 hex-soc-hd cup pt set

1шт.

4

179655C1

ROD

ASSY, reel drive control

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

5

174788C1

SUPPORT, flow divider

1шт.

18769R1

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 2

5/16 x 2-1/2 type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.
