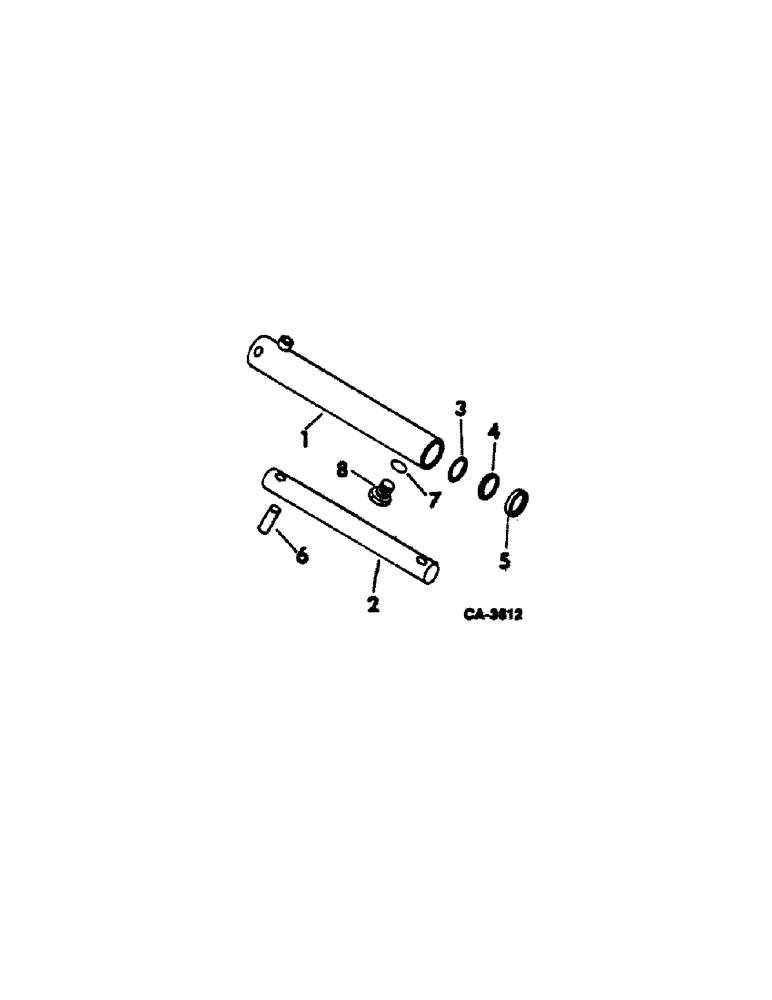

Запчасти Case IH 815 (10-33[1]) - HYDRAULICS, SLAVE CYLINDER, FOR USE W/REEL LIFT (07) - HYDRAULICS

532763R91

CYLINDER

ASSY, slave, includes ref. nos. 1 thru 8

1шт.

1

532765R1

BODY

ASSY

1шт.

2

532771R1

ROD

piston

1шт.

3

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1шт.

4

532854R1

SEAL,25.17mm ID x 31.52mm OD x 1.32mm Thk

backup

1шт.

5

532773R1

WIPER SEAL

WIDER, rod

1шт.

6

532774R1

PIN

stop

1шт.

7

533145R1

RUBBER WASHER,5.59mm ID x 10.72mm OD x 1.37mm Thk

rubber bonded

1шт.

8

24535R1

SCREW

no. 10-24 x 1/2 znd hex-hd mach

1шт.

532531R91

PACKAGE, REPAIR

KIT, hyd cyl service, o-ring 380794R1, washer 532854R1, washer 532773R1, washer 533145R1

1шт.
