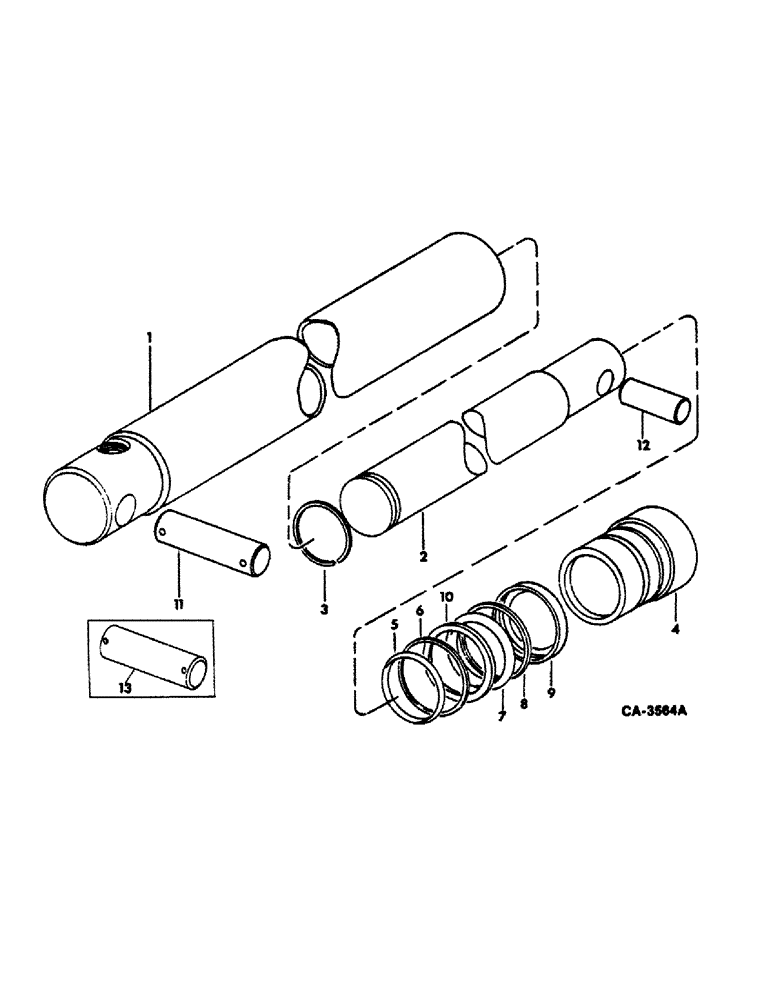

Запчасти Case IH 815 (10-32) - HYDRAULICS, FEEDER LIFT CYLINDER, HEAVY DUTY (07) - HYDRAULICS

547540R91

CYLINDER ASSY, feeder heavy duty lift

2шт.

547550R91

KIT

ASSY, service, consists of o-ring 295204R1, washer 547547R1, o-ring 343910R1, washer 533387R1, wiper 547548R1, ring 547549R1, stop 547545R1

1шт.

1

547541R1

BODY ASSY, hydraulic cylinder

2шт.

2

547544R1

ROD, piston

2шт.

3

547545R1

RING, SNAP

STOP, piston rod

2шт.

4

547546R1

HEAD, front

2шт.

5

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

static 2-13/16 x 3 x 3/32 cyl front head

2шт.

6

547547R1

WASHER

backup static

2шт.

7

343910R1

O-RING,2.475" ID x 0.21" Width

2-1/2 x 2-7/8 x 3/16 cyl piston rod

2шт.

8

533387R1

WASHER

o-ring backup

2шт.

9

547548R1

SEAL

WIPER, piston rod

2шт.

10

547549R1

WIRE

RING, retaining

2шт.

11

164533C1

PIN

feeder lift front

2шт.

12

578762R1

PIN, feeder lift cylinder rear

1шт.

137258

COTTER PIN

3/16" x 1 3/4"

1шт.

13

(Not used in this application)

1шт.
