Запчасти Case IH 815 (10-30) - HYDRAULICS, HYDRAULIC DIAGRAM, FOR 3 RD. LIFT CYLINDER AND ACCUMULATOR (07) - HYDRAULICS

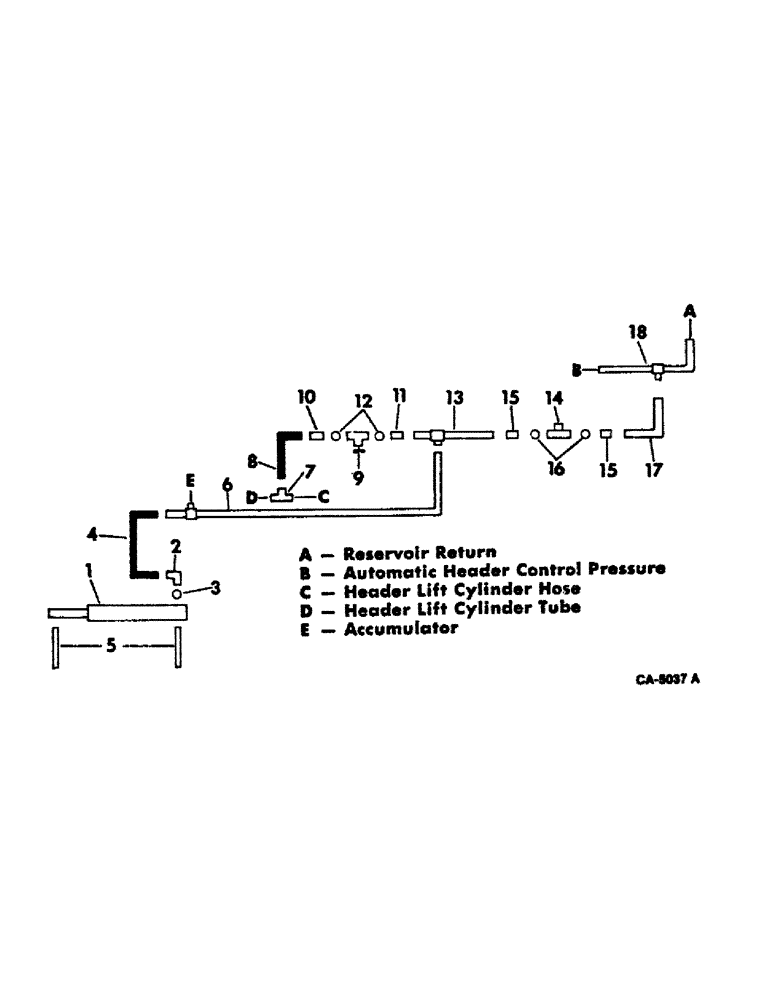

Схема запчастей Case IH 815 - (10-30) - HYDRAULICS, HYDRAULIC DIAGRAM, FOR 3 RD. LIFT CYLINDER AND ACCUMULATOR (07) - HYDRAULICS
6
10
18
17
16
9
7
1
4
8
3
2
13
15
11
5
15
12
14

Артикул

Название

Примечание

Количество

1

CYLINDER ASSY, feder lift, refer to this group under feeder lift cylinder standard

1шт.

2

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 x 37 deg. hyd 90 deg

1шт.

3

570820R1

O-RING, for 1/2 OD tube

1шт.

4

587582R91

HOSE ASSY.

HOSE ASSY, 29 in.

1шт.

5

573762R1

PIN,25.4mm OD x 130.97mm L

lift cylinder

2шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

4шт.

6

195635C1

TUBE ASSY, accumulator return

1шт.

7

9410334

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

7/8-14 37 deg hyd flared swivel

1шт.

8

381173R91

HOSE,12.7mm ID x 209.55mm L, SAE 100R1

ASSY, 18.25 in.

1шт.

9

195989C1

LOCK VALVE

VALVE ASSY, needle

1шт.

10

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 x 37 deg hyd

1шт.

11

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 3/4-16 x 7/8-14 37 deg hyd

1шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

13

195638C1

TUBE ASSY, header valve

1шт.

14

195990C1

LOCK VALVE

VALVE ASSY, flow control, Parker Hannifin

1шт.

14

183511C1

VALVE

ASSY, flow control, M & M Products

1шт.

15

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 x 37 deg hyd

2шт.

16

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

17

195637C1

TUBE ASSY, valve return

1шт.

18

195636C1

TUBE ASSY, return to reservoir lower

1шт.
