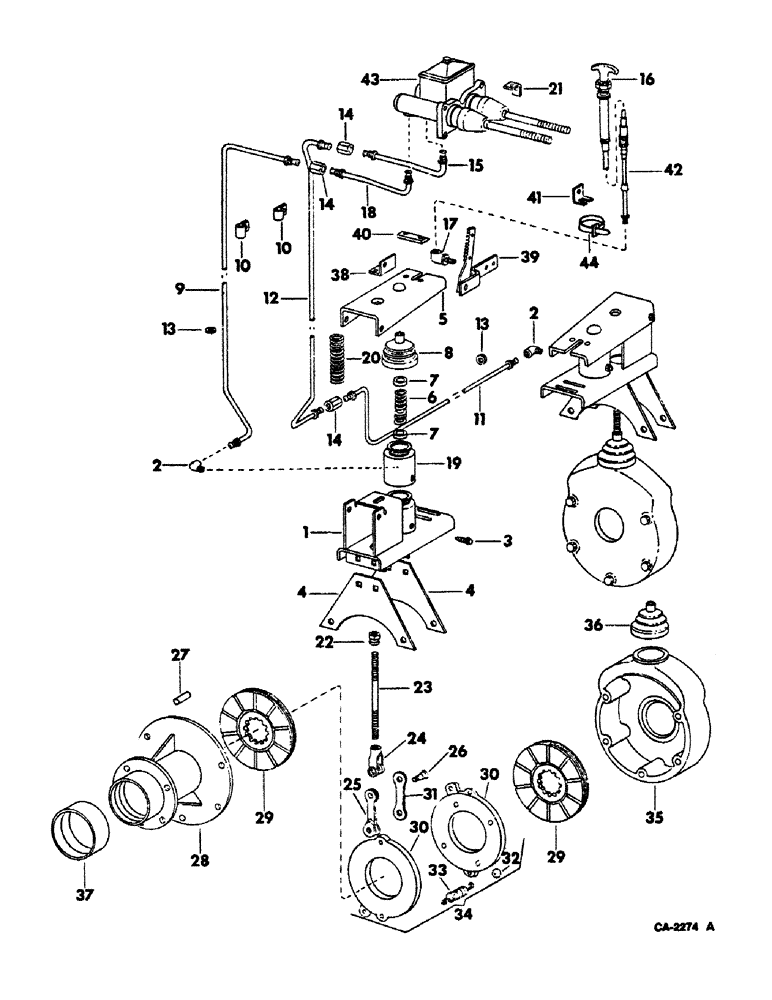

Запчасти Case IH 815 (10-28) - HYDRAULICS, WHEEL AND PARKING BRAKE (07) - HYDRAULICS

1

177682C1

SUPPORT

BRACKET ASSY, brake cyl

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

2

225810

ELBOW UNION

ELBOW, 1/8-27 90 deg inverted flared fo

2шт.

3

660901R1

VALVE

wheel brake cylinder bleeder

2шт.

4

177688C1

HANGER

brake cyl

4шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

4шт.

189310

SUPPORT,Hex, 7/16" x 4 1/4"

SCREW, 7/16 x 4-1/4 C-Z hex-hd cap

4шт.

21029R1

WASHER

.469 x 1.000 x .105

4шт.

5

177687C2

LEVER

wheel brake cyl

2шт.

654049R1

LOCK NUT

3/8 lock

2шт.

191163

BOLT,Hex, 3/8" - 16 x 4", Gr 5

SCREW, 3/8 x 3/4 hex-hd cap

2шт.

6

662612R1

SPRING

wheel brake cup

2шт.

7

51906H

CUP

whl brake cyl piston rubber

4шт.

8

381699R1

BOOT

wheel brake housing

2шт.

9

TUBE ASSY, left brake lower to master brake cylinder, use 58 in. of 1/4 steel tubing from 25 foot roll marked 990094C1 and two 137397 nuts

1шт.

10

587501R2

CLAMP

hydraulic tube 1/2 OD

2шт.

10

573674R1

CLIP

CLAMP, hyd tube, 1/4 OD tube

1шт.

11

TUBE ASSY, lower right brake, used 55 in. of 1/4 OD steel tubing from 25 foot roll marked 990094C1 and two 137397 nuts

1шт.

12

TUBE ASSY, RH brake center, use 45 in. of 1/4 OD steel tubing from 25 ft roll marked 990094C1 and two 142432 nuts

1шт.

13

140711

GROMMET,1/4" ID x 5/8" x .188", Str Cut

rubber, for brake cylinder to fitting tubes

1шт.

14

442336

SUPPORT TUBE

UNION, 7/16-24 brass, pln, hyd tube

1шт.

15

TUBE ASSY, RH brake cyl to fitting, use 9 in. of 1/4 OD steel tubing from 25-ft roll marked 990094C1 and two 142432 nuts

1шт.

16

170273C1

HANDLE

brake control cable

1шт.

17

165288C91

JOINT

BALL, joint 1/4-28NF

1шт.

18

TUBE ASSY, LH upper brake to master brake cylinder, use 9 in. of 1/4 OD steel tubing from 25 foot roll marked 990094C1 and two 142432 nuts

1шт.

19

CYLINDER, wheel brake, (not serviced separately) order 665989R91 kit assy

1шт.

665989R91

PISTON

KIT ASSY, wheel brake cylinder, consists of (1) piston, (1) boot, (1) plunger, (1) spring, (1) spacer, (2) cups

1шт.

20

667480R1

SPRING

brake compression

2шт.

21

154971C1

ANGLE

tube clip

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd mach

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

22

354630R1

NUT

brake pull rod

2шт.

23

665995R1

ROD

brake pull

2шт.

NLS

NO LONGER SERVICED

7/16-20 znd hex.

4шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

4шт.

24

357043R1

CLEVIS,3/8" - 24

brake pull rod

2шт.

16618R1

CLEVIS PIN,7/16" x 1.190"

PIN, 7/16 x 1.190 pln clevis

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

25

357114R91

LINK

actuating

2шт.

26

354642R1

STUD

actuating disc

4шт.

114493

JAM NUT,Jam, 5/16"-24, G5

4шт.

27

141279

DOWEL,1/2" x 3/4"

PIN, 1/2 x 3/4 dowel

2шт.

28

60002C91

ADAPTER

ASSY, brake LH

1шт.

28

60004C91

ADAPTER

ASSY, brake RH

1шт.

28138R1

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 8

SCREW w/NYLON PELLET, 7/16-14 x 1-1/8 hex-hd cap

10шт.

29

121961C91

CLUTCH DISC

DISC ASSY, middle

4шт.

30

DISC, (not serviced separately) order 366182R92 disc assy

1шт.

31

357113R1

LINK

actuating plain

2шт.

32

17028R1

BALL,7/8" Dia

10шт.

33

619731C1

SPRING

6шт.

34

366182R92

BRAKE DISC

DISC ASSY, actuating, includes ref nos 25, 26, 30, 31, 32 and 33

2шт.

35

574914R2

HOUSING

wheel brake

2шт.

NLS

NO LONGER SERVICED

7/16 hex

6шт.

179873

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

6шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 ga

6шт.

36

381699R1

BOOT

wheel brake housing

2шт.

37

380186R91

OIL SEAL

brake adapter oil

10шт.

38

177804C1

SUPPORT

parking brake ratchet

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 znd hex-hd cap

1шт.

39

177799C1

SECTOR

ASSY, parking brake

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

40

177802C1

BAR

parking brake ratchet

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 znd hex-hd mach

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

41

177803C1

BRACKET

parking brake cable

1шт.

42

166148C91

CABLE ASSY, parking brake, 110 in.

1шт.

43

CYLINDER ASSY, brake master, refer to this group under wheel brake lever, pedal and master brake for unit listing

1шт.

44

702093C1

CABLE TIE

STRAP, parking brake cable tie

5шт.
